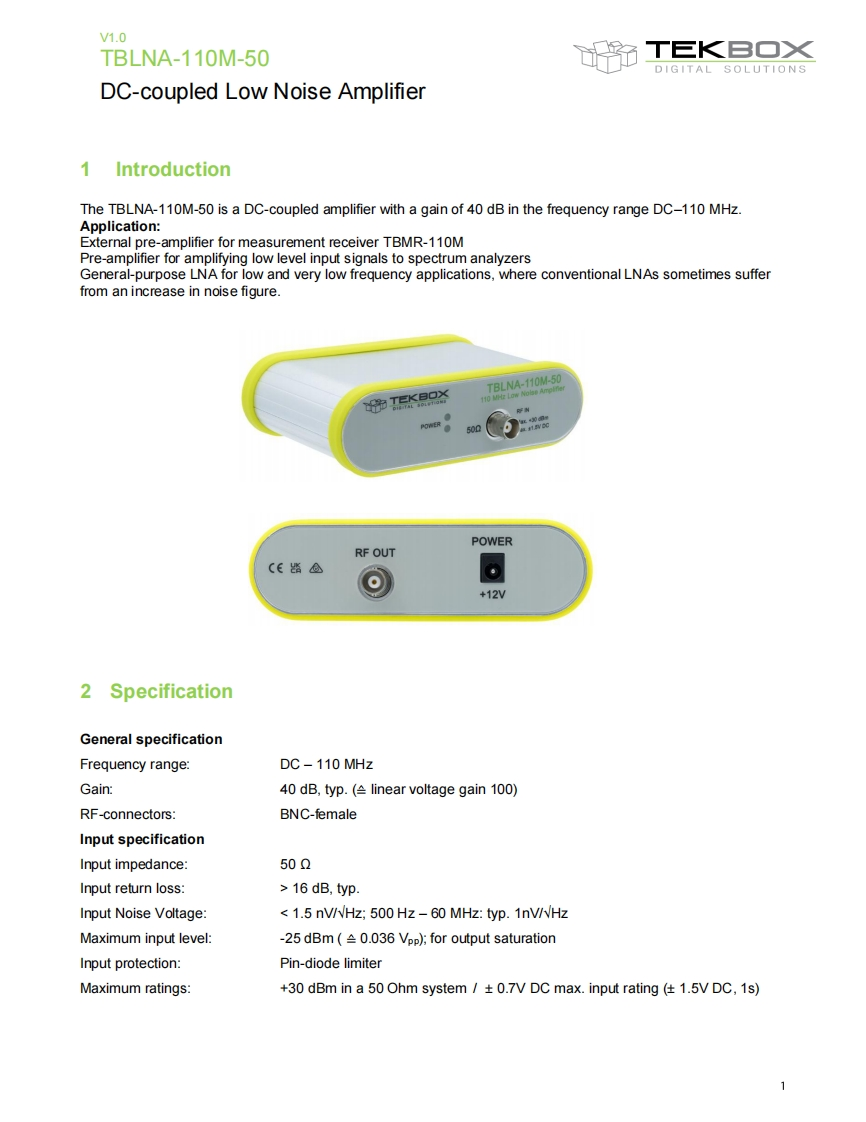

V1.0TBLNA-110M-50畅T巨K旦口×DIGITAL SOLUTIONSDC-coupled Low Noise Amplifier1IntroductionThe TBLNA-110M-50 is a DC-coupled amplifier with a gain of 40 dB in the frequency range DC-110 MHz.Application:External pre-amplifier for measurement receiver TBMR-110MPre-amplifier for amplifying low level input signals to spectrum analyzersGeneral-purpose LNA for low and very low frequency applications,where conventional LNAs sometimes sufferfrom an increase in noise figure.TBLNA-110M-50●R●POWERRF OUTCE+12V2 SpecificationGeneral specificationFrequency range:DC-110 MHzGain:40 dB,typ.linear voltage gain 100)RF-connectors:BNC-femaleInput specificationInput impedance:502Input return loss:16 dB,typ.Input Noise Voltage:1.5 nV/Hz;500 Hz-60 MHz:typ.1nV/HzMaximum input level:-25 dBm 0.036 Vpp);for output saturationInput protection:Pin-diode limiterMaximum ratings:+30 dBm in a 50 Ohm system /0.7V DC max.input rating (1.5V DC,1s)1
