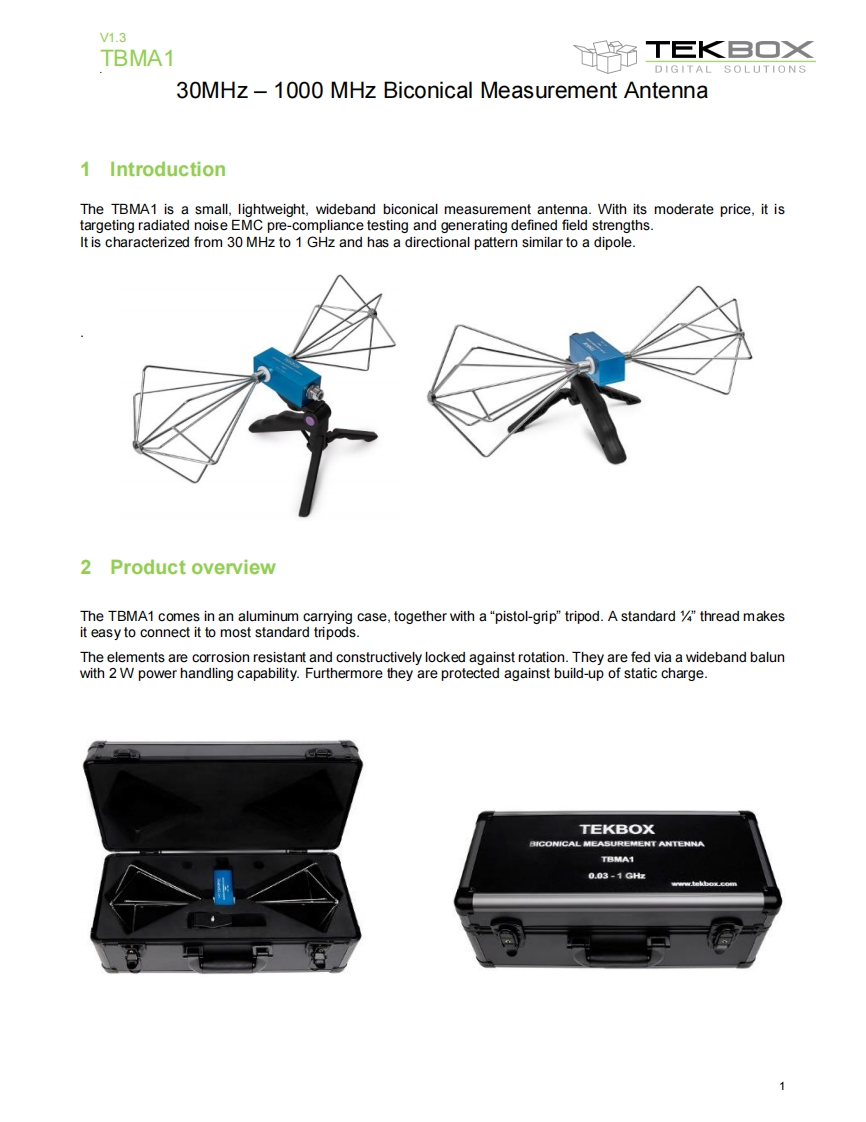

V1.3TBMA1的T巨K旦ODIGITAL SOLUTIONS30MHz-1000 MHz Biconical Measurement Antenna1 IntroductionThe TBMA1 is a small,lightweight,wideband biconical measurement antenna.With its moderate price,it istargeting radiated noise EMC pre-compliance testing and generating defined field strengths.It is characterized from 30 MHz to 1 GHz and has a directional pattern similar to a dipole.2 Product overviewThe TBMA1 comes in an aluminum carrying case,together with a"pistol-grip"tripod.A standard thread makesit easy to connect it to most standard tripods.The elements are corrosion resistant and constructively locked against rotation.They are fed via a wideband balunwith 2 W power handling capability.Furthermore they are protected against build-up of static charge.TEKBOXBICONICAL MEASUREMENT ANTENNATBMA10.03-1GHzwww.tekbox.com1
