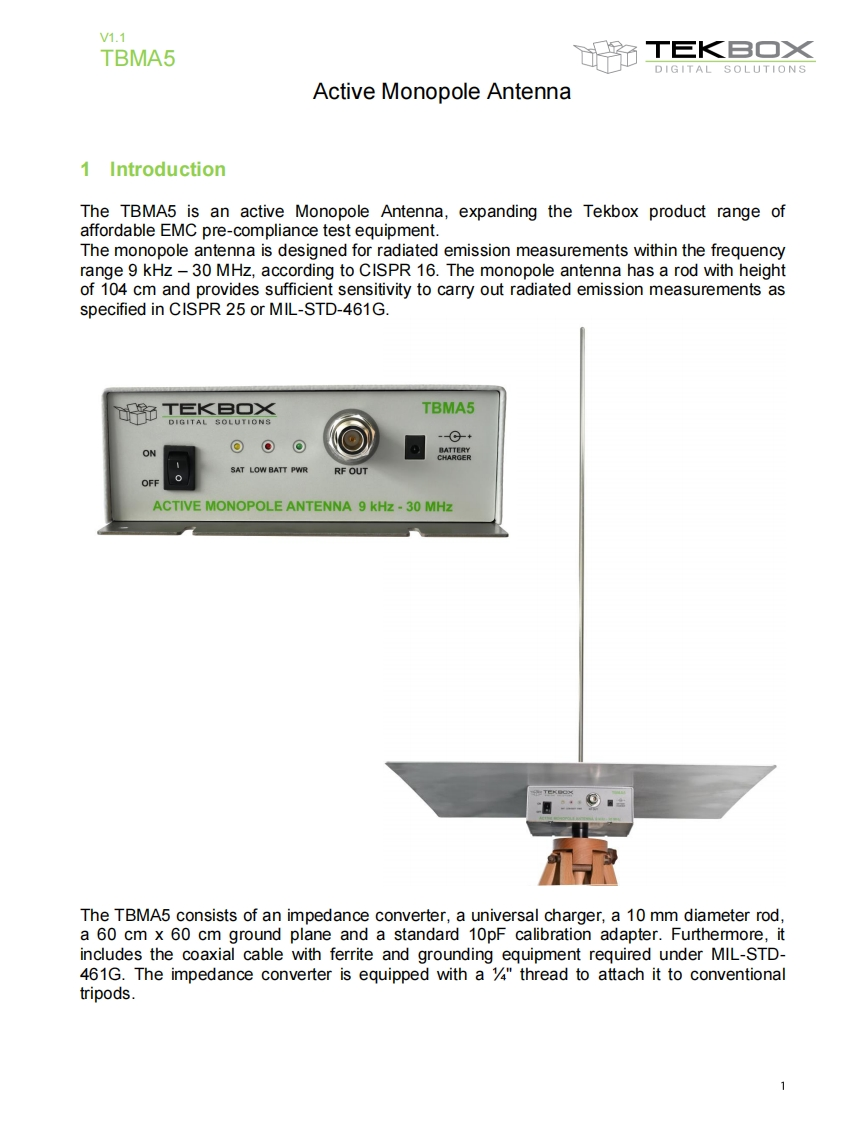

V1.1TBMA5T巨K旦O×DIGITAL SOLUTIONSActive Monopole Antenna1 IntroductionThe TBMA5 is an active Monopole Antenna,expanding the Tekbox product range ofaffordable EMC pre-compliance test equipment.The monopole antenna is designed for radiated emission measurements within the frequencyrange 9 kHz-30 MHz,according to CISPR 16.The monopole antenna has a rod with heightof 104 cm and provides sufficient sensitivity to carry out radiated emission measurements asspecified in CISPR 25 or MIL-STD-461G.TTBMA5DIGITAL SOLUTIONS-⊙+ON⊙。⊙SAT LOW BATT PWRRF OUTOFFACTIVE MONOPOLE ANTENNA 9 kHz-30 MHz图2：9The TBMA5 consists of an impedance converter,a universal charger,a 10 mm diameter roda 60 cm x 60 cm ground plane and a standard 10pF calibration adapter.Furthermore,itincludes the coaxial cable with ferrite and grounding equipment required under MIL-STD-461G.The impedance converter is equipped with a thread to attach it to conventionaltripods.1
