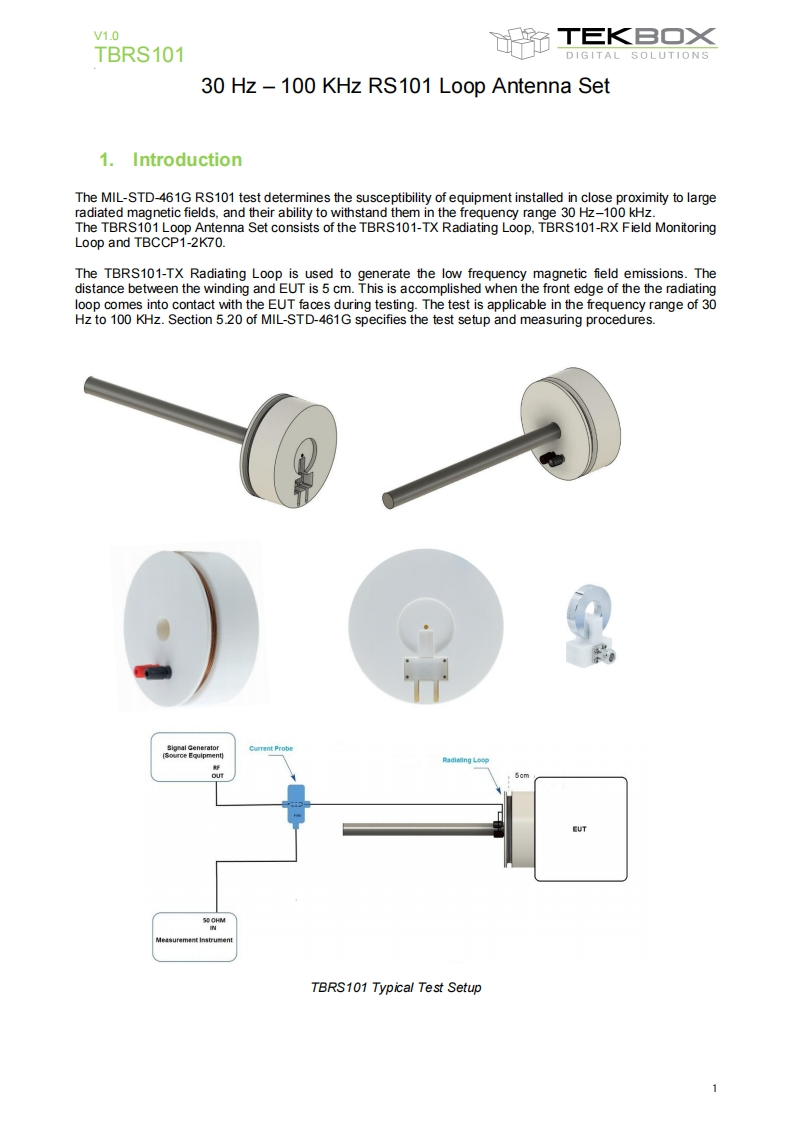

V1.0TBRS101TEK旦O×DIGITAL SOLUTIONS30 Hz-100 KHz RS101 Loop Antenna Set1.IntroductionThe MIL-STD-461G RS101 test determines the susceptibility of equipment installed in close proximity to largeradiated magnetic fields,and their ability to withstand them in the frequency range 30 Hz-100 kHz.The TBRS101 Loop Antenna Set consists of the TBRS101-TX Radiating Loop,TBRS101-RX Field MonitoringLoop and TBCCP1-2K70.The TBRS101-TX Radiating Loop is used to generate the low frequency magnetic field emissions.Thedistance between the winding and EUT is 5 cm.This is accomplished when the front edge of the the radiatingloop comes into contact with the EUT faces during testing.The test is applicable in the frequency range of 30Hz to 100 KHz.Section 5.20 of MIL-STD-461G specifies the test setup and measuring procedures.Current ProbeEUTMeasurement InstrumentTBRS101 Typical Test Setup
