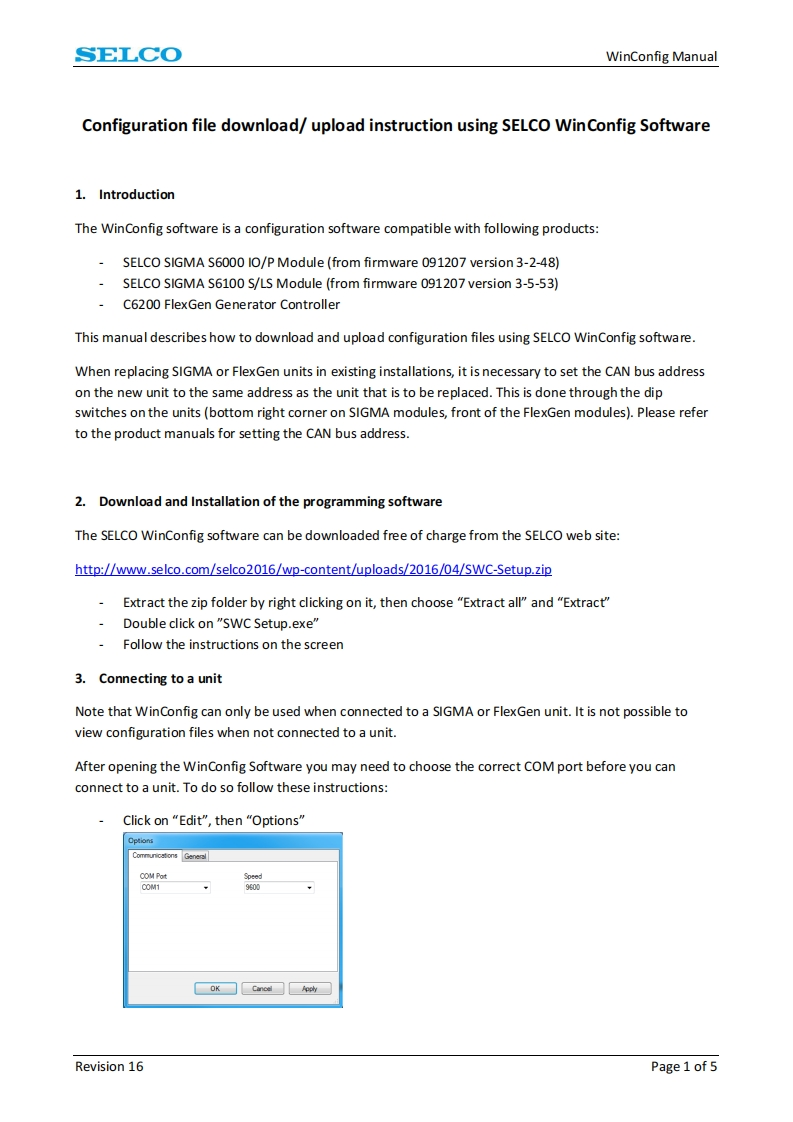

SELCOWinConfig ManualConfiguration file download/upload instruction using SELCO Win Config Software1.IntroductionThe WinConfig software is a configuration software compatible with following products:SELCO SIGMA S6000 1O/P Module(from firmware 091207 version 3-2-48)SELCO SIGMA S6100 S/LS Module (from firmware 091207 version 3-5-53)C6200 FlexGen Generator ControllerThis manual describes how to download and upload configuration files using SELCO WinConfig software.When replacing SIGMA or FlexGen units in existing installations,it is necessary to set the CAN bus addresson the new unit to the same address as the unit that is to be replaced.This is done through the dipswitches on the units(bottom right corner on SIGMA modules,front of the FlexGen modules).Please referto the product manuals for setting the CAN bus address.2.Download and Installation of the programming softwareThe SELCO WinConfig software can be downloaded free of charge from the SELCO web site:http://www.selco.com/selco2016/wp-content/uploads/2016/04/SWC-Setup.zipExtract the zip folder by right clicking on it,then choose "Extract all"and "Extract"Double click on "SWC Setup.exe"Follow the instructions on the screen3.Connecting to a unitNote that WinConfig can only be used when connected to a SIGMA or FlexGen unit.It is not possible toview configuration files when not connected to a unit.After opening the WinConfig Software you may need to choose the correct COM port before you canconnect to a unit.To do so follow these instructions:Click on "Edit",then "Options"OptionsCommunicstons GenerslCOM Pat9600ok□Cancel☐wRevision 16Page 1 of 5
