WTH600-E-KIT_安装调试说明书手册-en

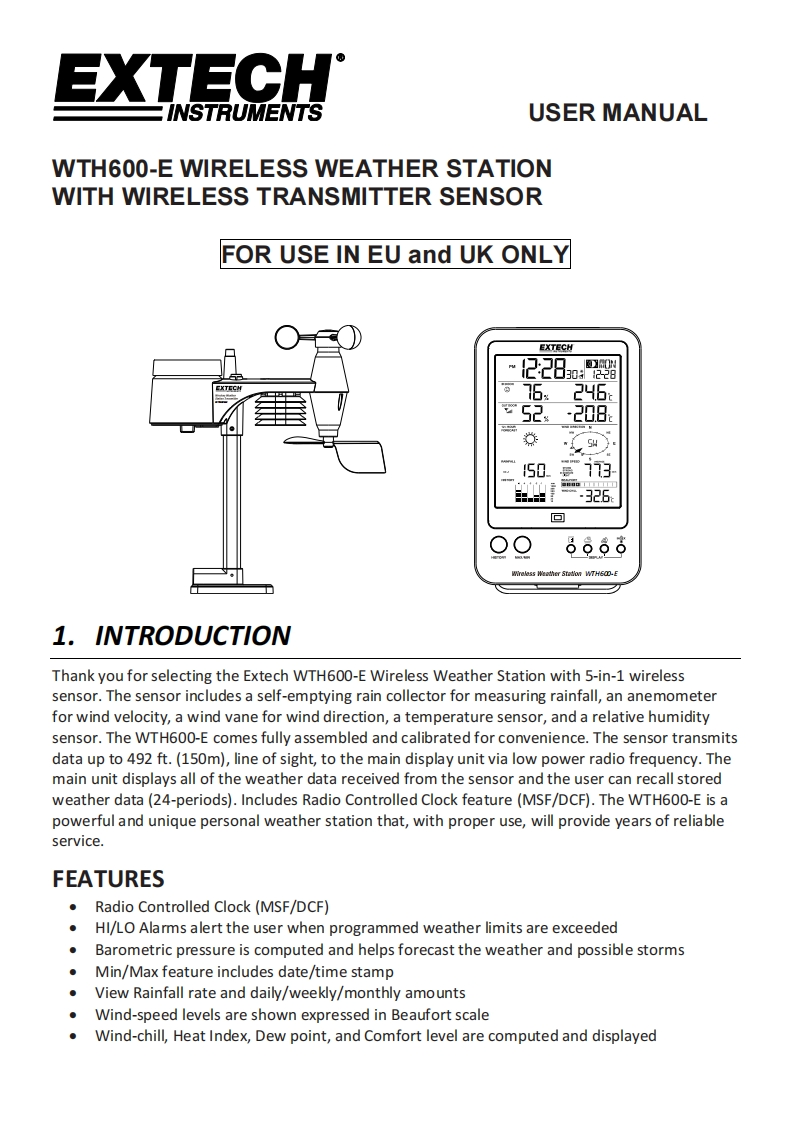

EXTECHINSTRUMENTSUSER MANUALWTH600-E WIRELESS WEATHER STATIONWITH WIRELESS TRANSMITTER SENSORFOR USE IN EU and UK ONLYEXTECH1记28246:52·20B二50.号173出326回866671.INTRODUCTIONThank you for selecting the Extech WTH600-E Wireless Weather Station with 5-in-1 wirelesssensor.The sensor includes a self-emptying rain collector for measuring rainfall,an anemometerfor wind velocity,a wind vane for wind direction,a temperature sensor,and a relative humiditysensor.The WTH600-E comes fully assembled and calibrated for convenience.The sensor transmitsdata up to 492 ft.(150m),line of sight,to the main display unit via low power radio frequency.Themain unit displays all of the weather data received from the sensor and the user can recall storedweather data(24-periods).Includes Radio Controlled Clock feature (MSF/DCF).The WTH600-E is apowerful and unique personal weather station that,with proper use,will provide years of reliableservice.FEATURES.Radio Controlled Clock(MSF/DCF)HI/LO Alarms alert the user when programmed weather limits are exceededBarometric pressure is computed and helps forecast the weather and possible storms.Min/Max feature includes date/time stampView Rainfall rate and daily/weekly/monthly amountsWind-speed levels are shown expressed in Beaufort scaleWind-chill,Heat Index,Dew point,and Comfort level are computed and displayed
