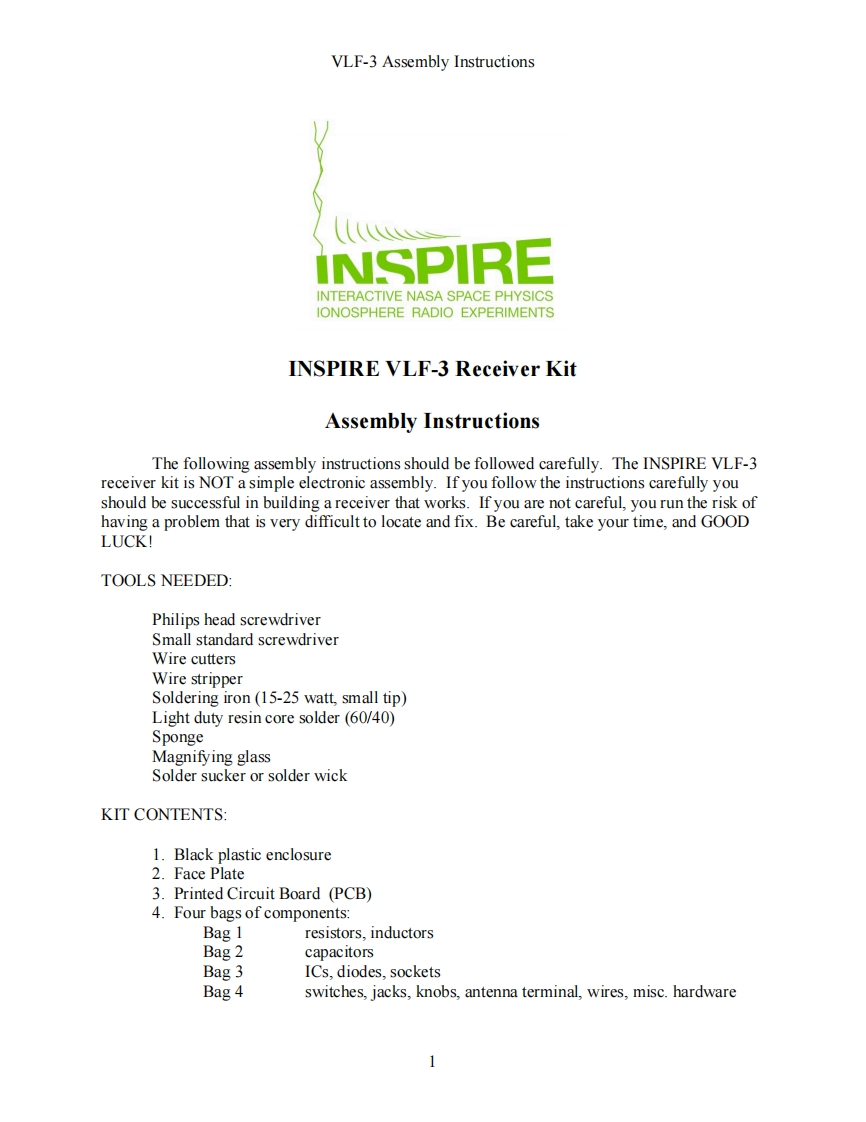

VLF-3 Assembly InstructionsINTERACTIVE NASA SPACE PHYSICSIONOSPHERE RADIO EXPERIMENTSINSPIRE VLF-3 Receiver KitAssembly InstructionsThe following assembly instructions should be followed carefully.The INSPIRE VLF-3receiver kit is NOT a simple electronic assembly.If you follow the instructions carefully youshould be successful in building a receiver that works.If you are not careful,you run the risk ofhaving a problem that is very difficult to locate and fix.Be careful,take your time,and GOODLUCK!TOOLS NEEDED:Philips head screwdriverSmall standard screwdriverWire cuttersWire stripperSoldering iron (15-25 watt,small tip)Light duty resin core solder (60/40)SpongeMagnifying glassSolder sucker or solder wickKIT CONTENTS:1.Black plastic enclosure2.Face Plate3.Printed Circuit Board (PCB)4.Four bags of components:Bag 1resistors,inductorsBag 2capacitorsBag 3ICs,diodes,socketsBag 4switches,jacks,knobs,antenna terminal,wires,misc.hardware1
