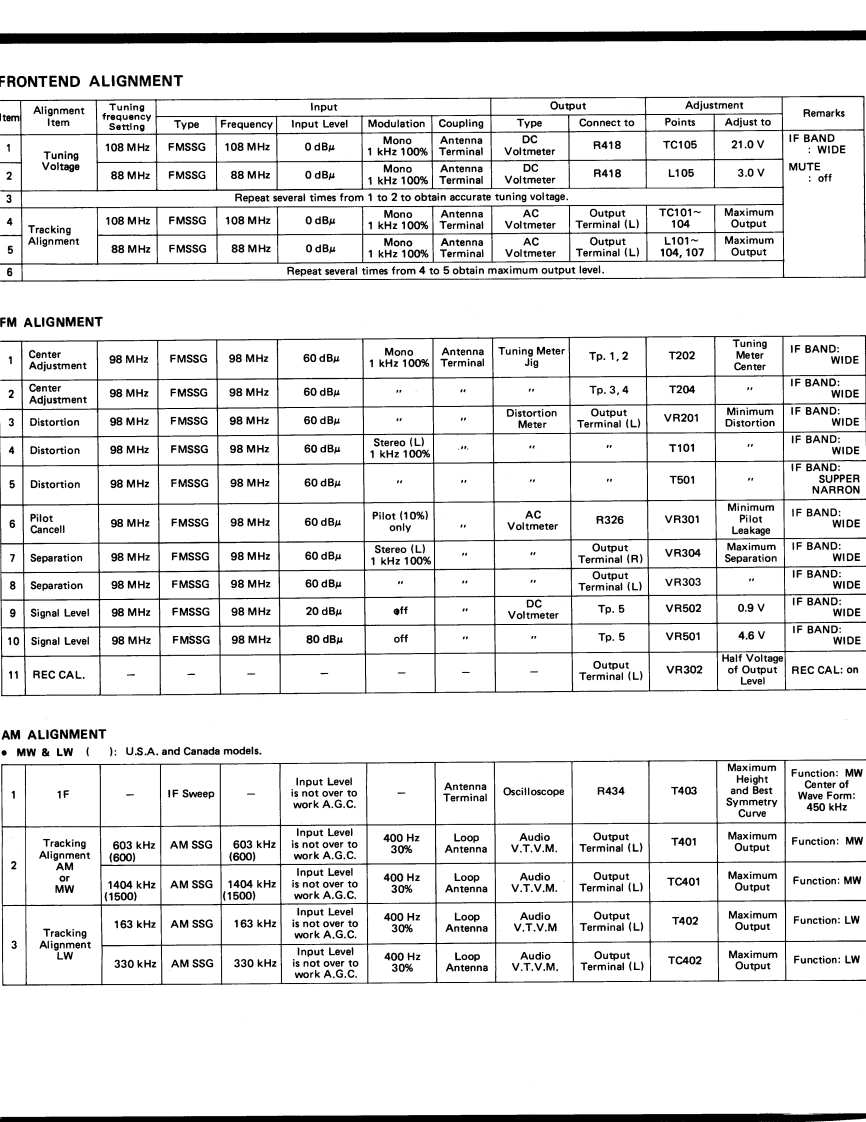

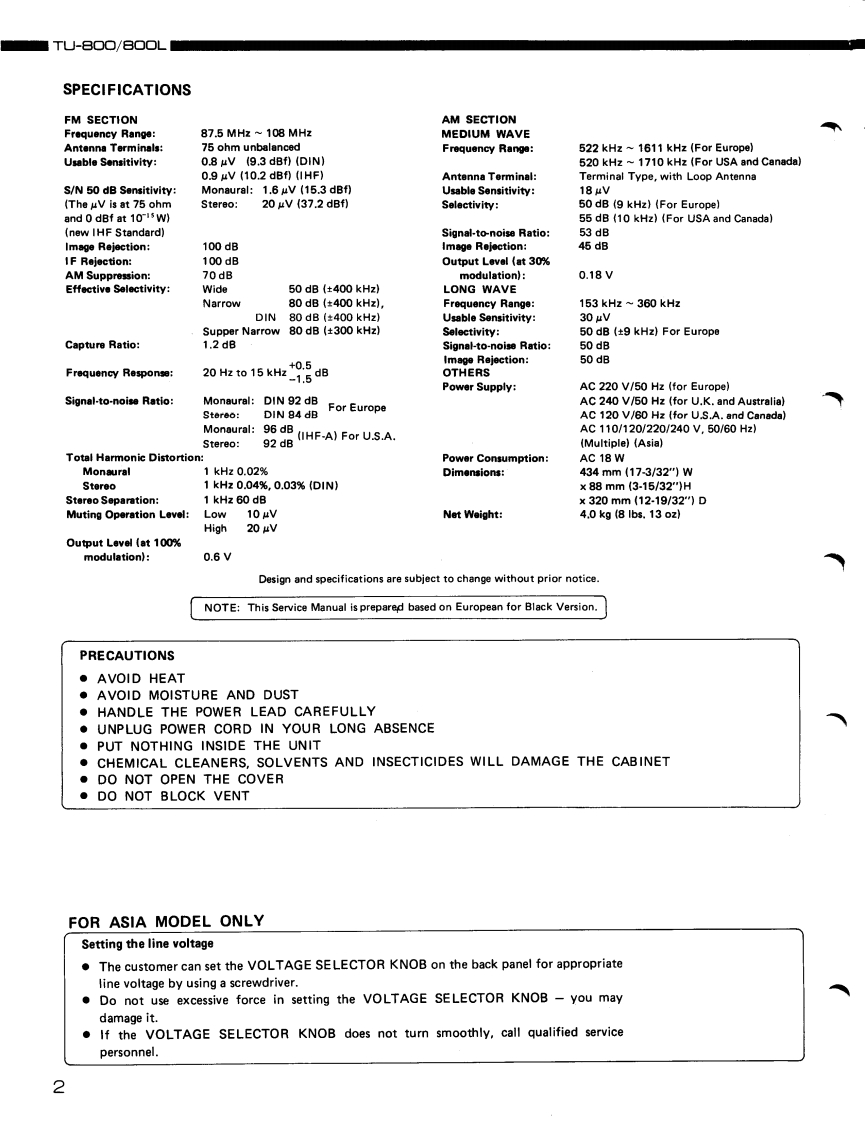

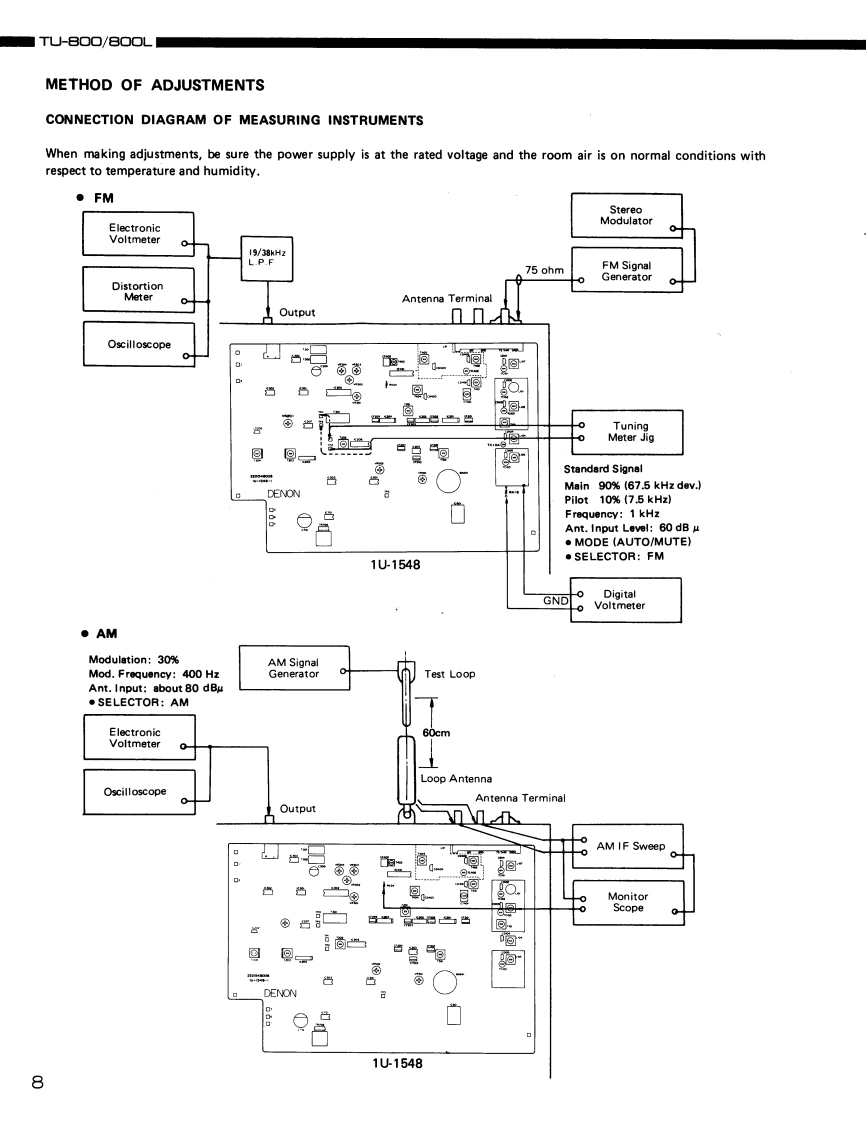

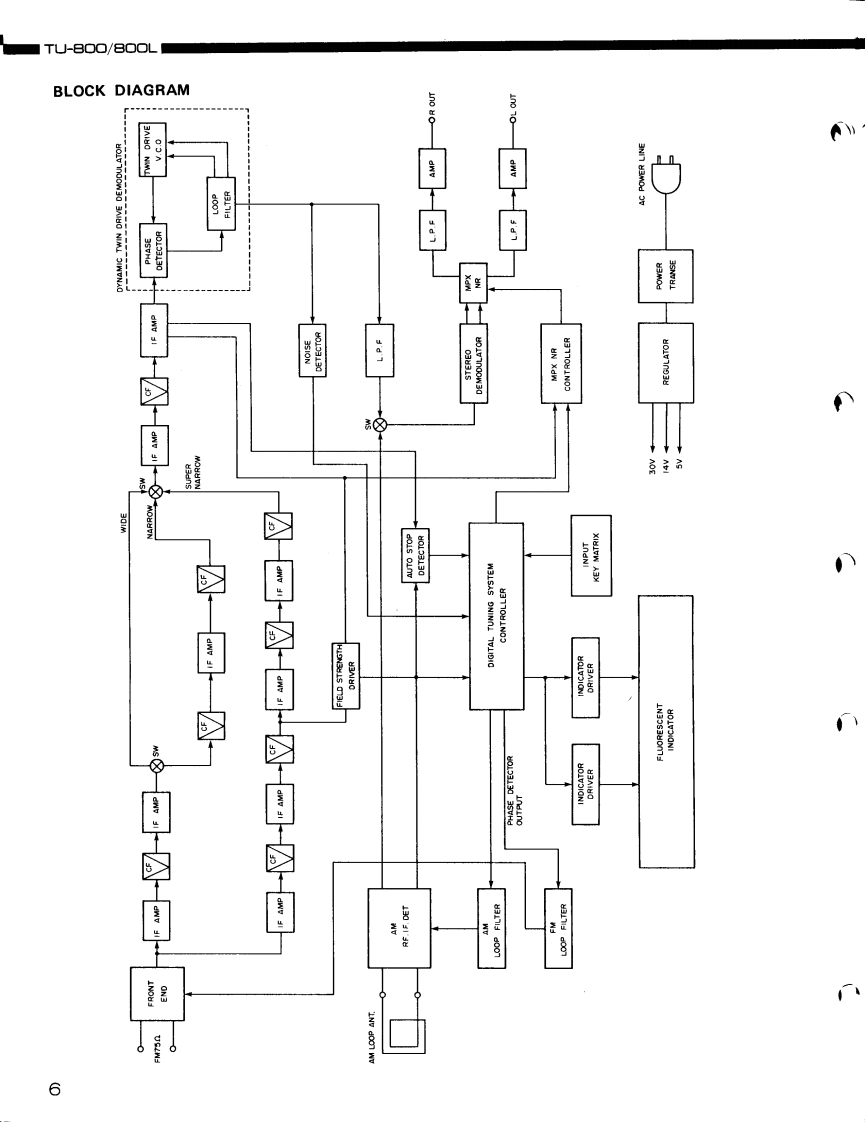

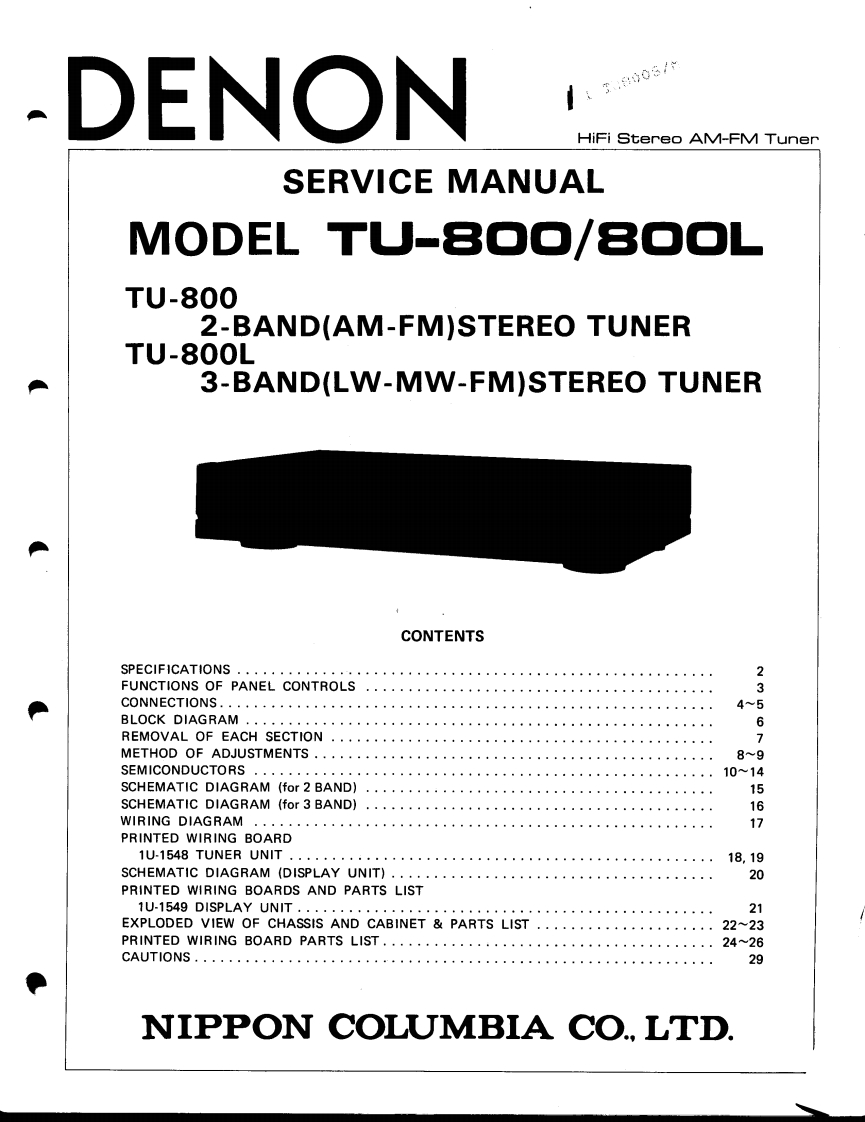

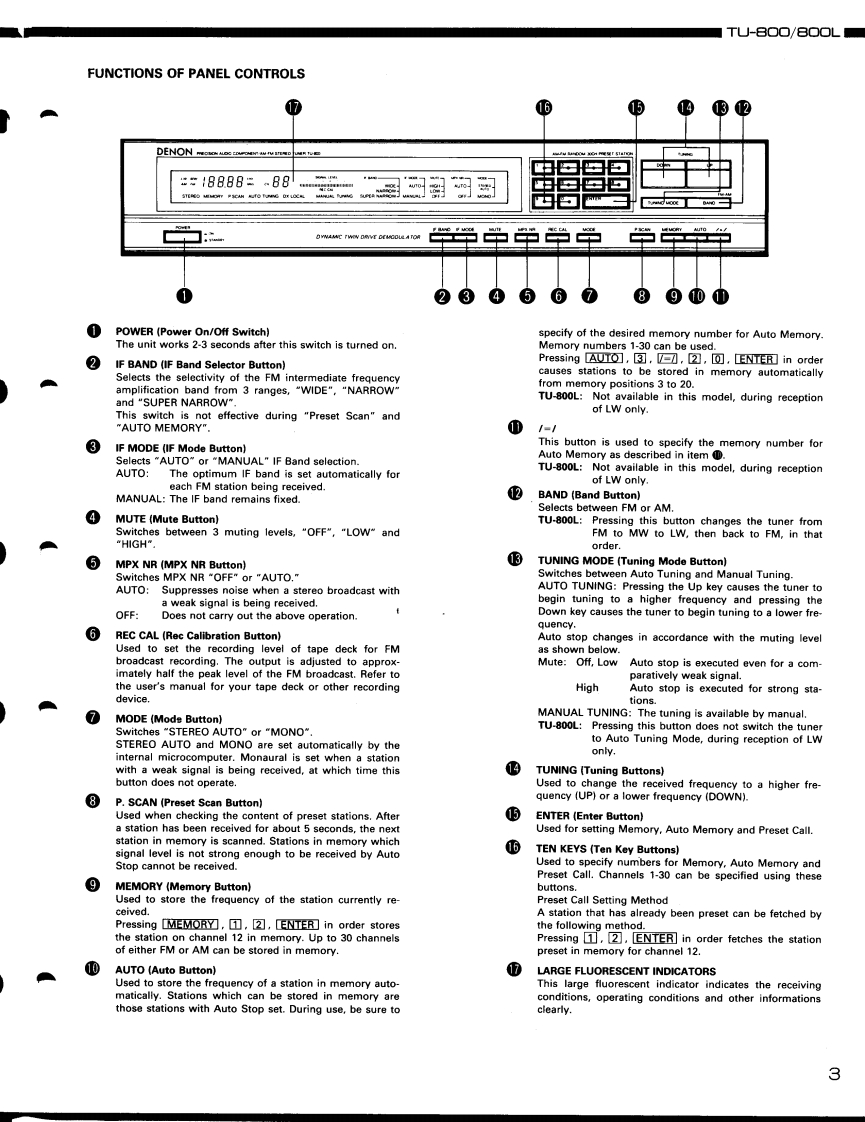

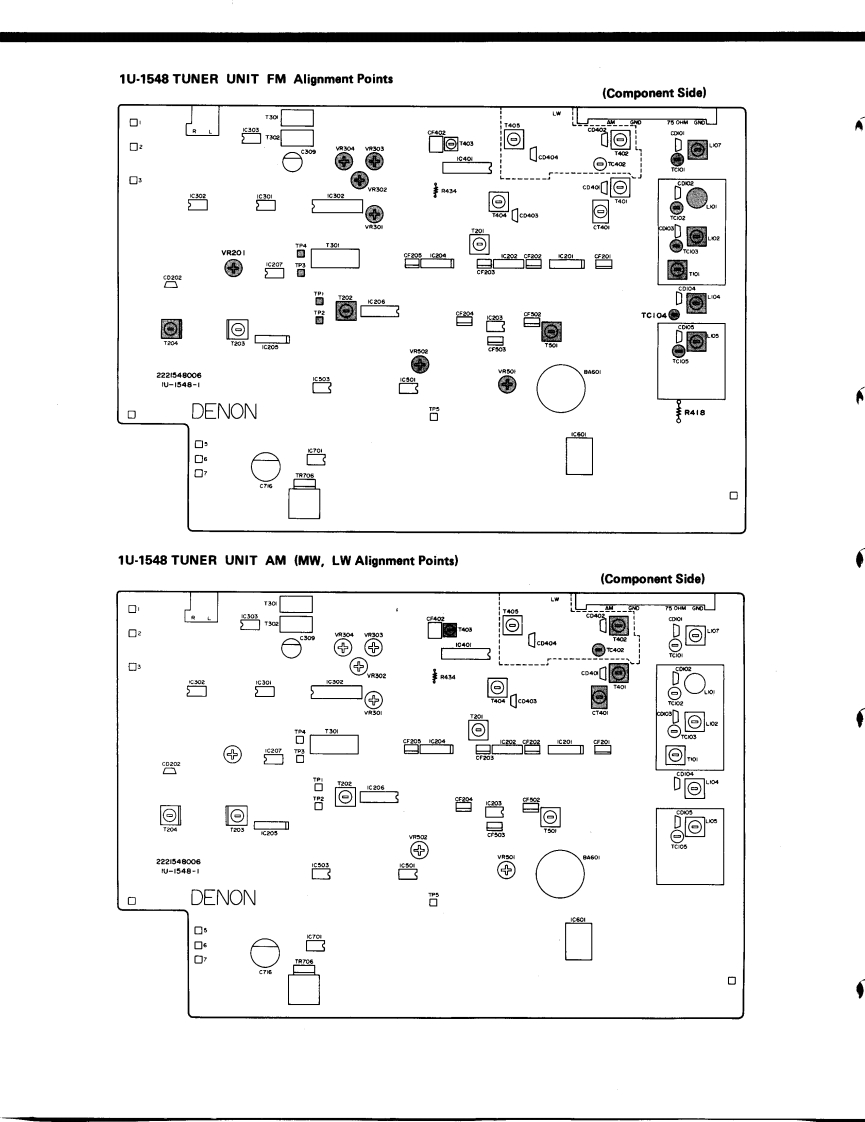

DENON:708/HiFi Stereo AM-FM TunerSERVICE MANUALMODEL TU-8O▣/8OOLTU-8002-BAND(AM-FM)STEREO TUNERTU-800L3-BAND(LW-MW-FM)STEREO TUNERCONTENTSSPECIFICATIONS.·,:,··················FUNCTIONS OF PANEL CONTROLS3C0 NNECTIONS.,.···············4~5BLOCK DIAGRAM·.··.6REMOVAL OF EACH SECTION·.···,··7METHOD OF ADJUSTMENTS.····.·.8~9SEMICONDUCTORS.1014SCHEMATIC DIAGRAM (for 2 BAND)15SCHEMATIC DIAGRAM (for 3 BAND)16WIRING DIAGRAM...·.··.···.·······17PRINTED WIRING BOARD1U-1548 TUNER UNIT ...18,19SCHEMATIC DIAGRAM(DISPLAY UNIT)..··.···20PRINTED WIRING BOARDS AND PARTS LIST1U-1549 DISPLAY UNIT21EXPLODED VIEW OF CHASSIS AND CABINET&PARTS LIST.···,····,····,··.··22~23PRINTED WIRING BOARD PARTS LIST,..··.··.··..·,·,··,·,,··,···2426CAUTIONS,..,...·.··29NIPPON COLUMBIA CO.,LTD.
