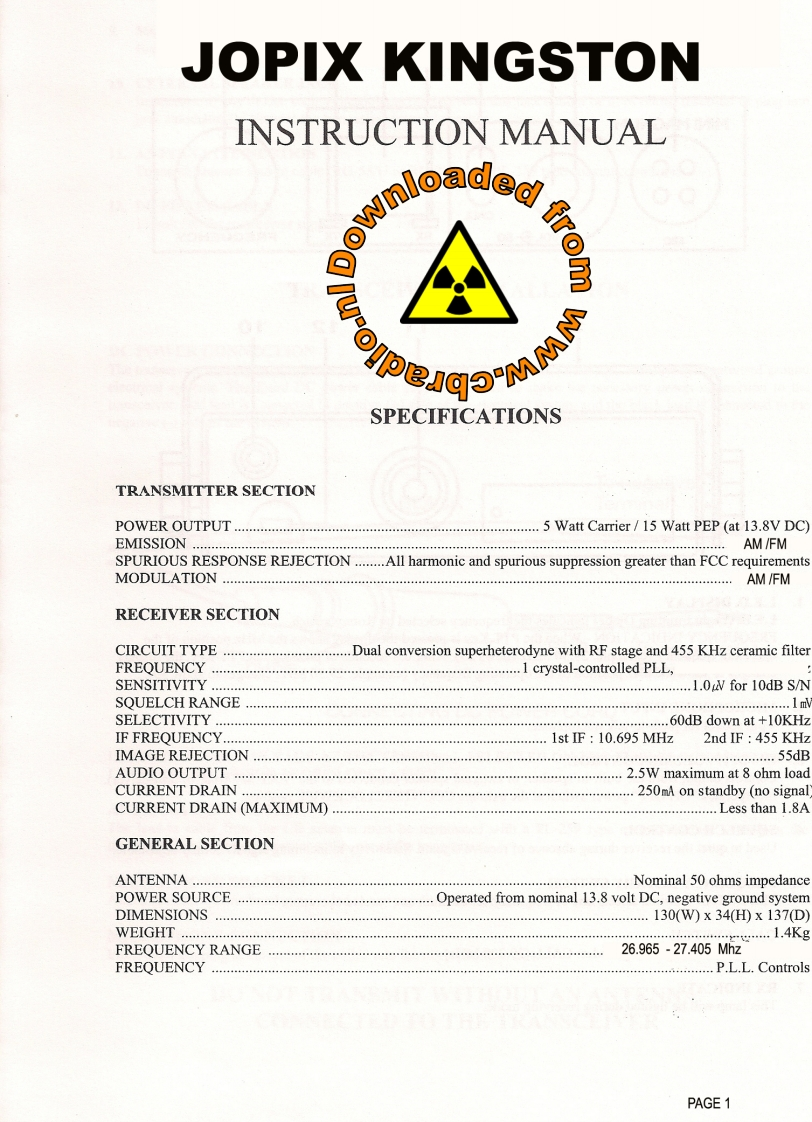

JOPIX KINGSTONINSTRUCTION MANUAL⊙]⊙aGTěoIPeIc②AMMSPECIFICATIONSTRANSMITTER SECTIONPOWER OUTPUT...................................5.Watt Carrier/15 Watt PEP (at 13.8V DC)EMISSION ......AM/FMSPURIOUS RESPONSE REJECTION........All harmonic and spurious suppression greater than FCC requirementsMODULATION........AM/FMRECEIVER SECTIONCIRCUIT TYPE ..........................Dual conversion superheterodyne with RF stage and 455 KHz ceramic filterFREQUENCY.............crystal-controlled PLL,SENSITIVITY........1.for 10dB SNSQUELCH RANGESELECTIVITY…..............60dB down at +10KHzIF FREQUENCY....1st IF 10.695 MHz2nd IF 455 KHzIMAGE REJECTIONAUDIO OUTPUT2.5W maximum at 8 ohm loadCURRENT DRAIN250mA on standby (no signalCURRENT DRAIN (MAXIMUM).........Less than 1.8AGENERAL SECTIONANTENNA...............................Nominal 50 ohms impedancePOWER SOURCEOperated from nominal 13.8 volt DC,negative ground systemDIMENSIONS130(W)x34(Hx137(D)WEIGHT…1.4KgFREQUENCY RANGE26.965-27.405MhzFREQUENCYP.L.L.ControlsPAGE 1
