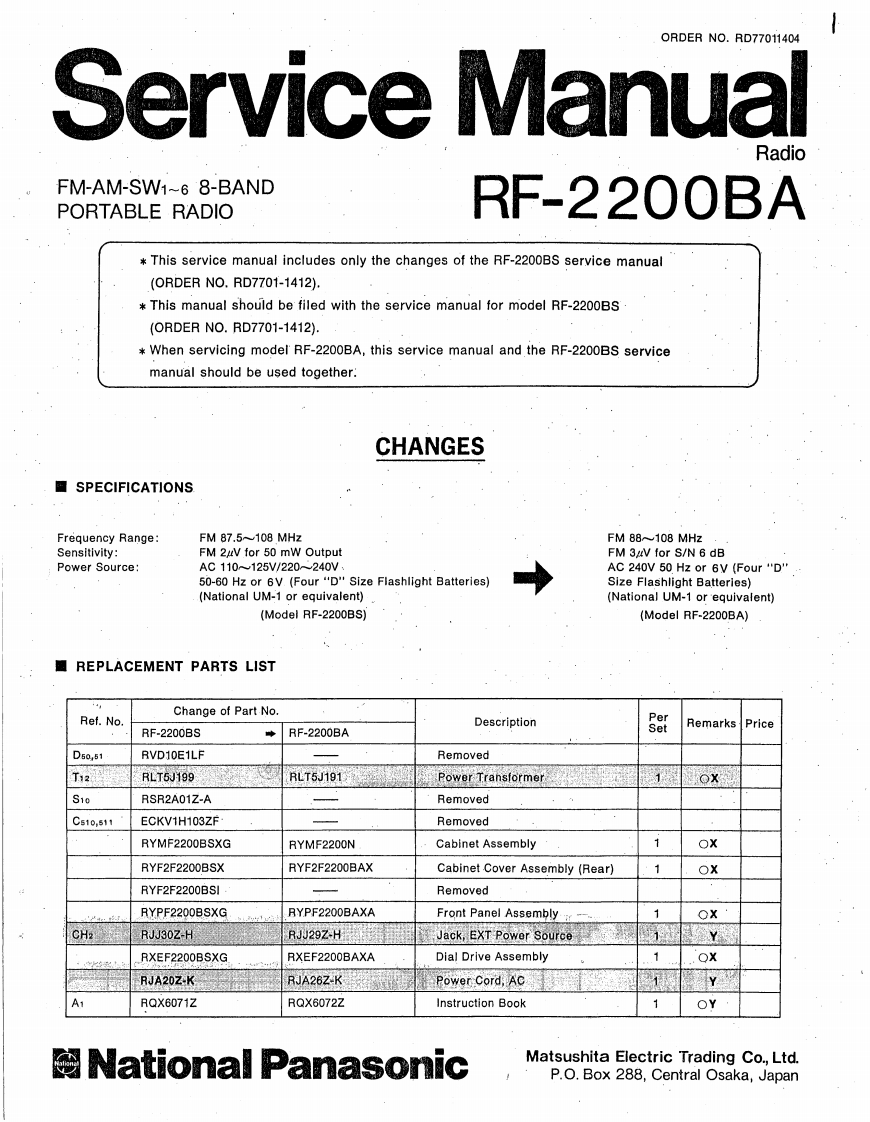

ORDER NO.RD77011404Service ManualRadioFM-AM-SW1-6 8-BANDPORTABLE RADIORF-2200BAThis service manual includes only the changes of the RF-2200BS service manual(ORDER NO.RD7701-1412).This manual should be filed with the service manual for model RF-2200BS(ORDER N0.RD7701-1412).When servicing model RF-2200BA,this service manual and the RF-2200BS servicemanual should be used together:CHANGES■SPECIFICATIONSFrequency Range:FM 87.5~108 MHzFM 88~108 MHzSensitivity:FM 2uV for 50 mW OutputFM 3uV for S/N 6 dBPower Source:AC110125V/220240VAC 240V 50 Hz or 6V (Four "D50-60 Hz or 6V (Four"D"Size Flashlight Batteries)Size Flashlight Batteries)(National UM-1 or equivalent)(National UM-1 or equivalent)(Model RF-2200BS)(Model RF-2200BA)REPLACEMENT PARTS LIST4Change of Part No.Ref.NoDescriptionRemarksPriceRF-2200BSRF-2200BASetD50,51RVD10E1LFRemovedT12RLT6J199RLT5J191Power Transformer1OXS10RSR2A01Z-ARemovedCs10,511ECKV1H103ZFRemovedRYMF2200BSXGRYMF2200NCabinet AssemblyOXRYF2F2200BSXRYF2F2200BAXCabinet Cover Assembly (Rear)1OXRYF2F2200BSIRemovedRYPF2200BSXGRYPF2200BAXAFront Panel AssemblyORJJ30Z-HRJJ29Z-H Jack,EXT Power SourceYRXEF2200BSXGRXEF2200BAXADial Drive Assembly,￥女21OXRJA20Z-KRJA26Z-KPower Cord,ACYA1RQX6071ZRQX6072ZInstruction Book1OYNational PanasonicMatsushita Electric Trading Co.,Ltd.P.O.Box 288,Central Osaka,Japan
