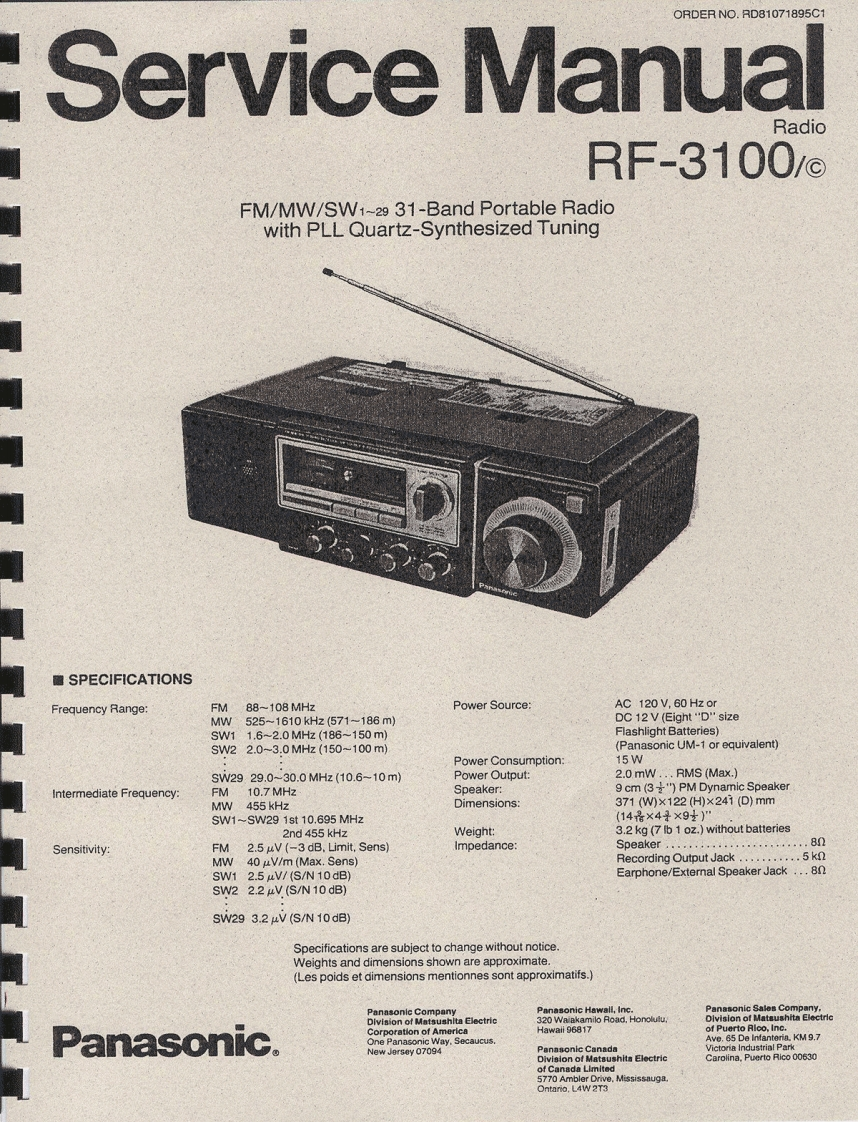

ORDER NO.RD81071895C1Service ManualRadioRF-3100/eFM/MW/SW1-29 31-Band Portable Radiowith PLL Quartz-Synthesized TuningSPECIFICATIONSFrequency Range:FM 88-108 MHzPower Source:AC 120 V,60 Hz orMW525-1610kHz(571-186m)DC12V(Eight“D"sizeSW11,6-2.0MHz(186-150m)Flashlight Batteries)SW22.0-3.0MHz(150-100m)(Panasonic UM-1 or equivalent)Power Consumption:15WSW2929.0-30.0MHz(10.6-10m)Power Output:2.0.mW...RMS (Max.)Intermediate Frequency:FM 10.7 MHzSpeaker:9cm(3)PM Dynamic SpeakerMW 455 kHzDimensions:371(W)×122(H)×241(D)mmSW1-SW29 1st 10.695 MHz(14各×4×9z)2nd 455 kHzWeight:3.2 kg (7 Ib 1 oz.)without batteriesSensitivity:FM 2.5 uV(-3 dB.Limit,Sens)Impedance:Speaker.........................8nMW 40 uV/m(Max.Sens)Recording Output Jack...........5 knSW1 2.5uV/(S/N 10dB)Earphone/External Speaker Jack...80SW2 2.2 uV (S/N 10 dB)SW29 3.2uV(S/N10dB)Specifications are subject to change without noticeWeights and dimensions shown are approximate(Les poids et dimensions mentionnes sont approximatifs.)Panasonic CompanyPanasonic Hawall,Inc.Divisionot Mataushita Electric320 Waiakamilo Road,Honolulu.Panasonic.Corporation of AmeHawaii 96817of Puerto Rloo,Inc.One Panasonic Way.SecaucusAve.65 De Infanteria.KM 9.7N8wJ8r50y07094Victoria Industrial ParkCarolina.Puerto Rico 006305770 Ambler DrOntario,L4W 2T3
