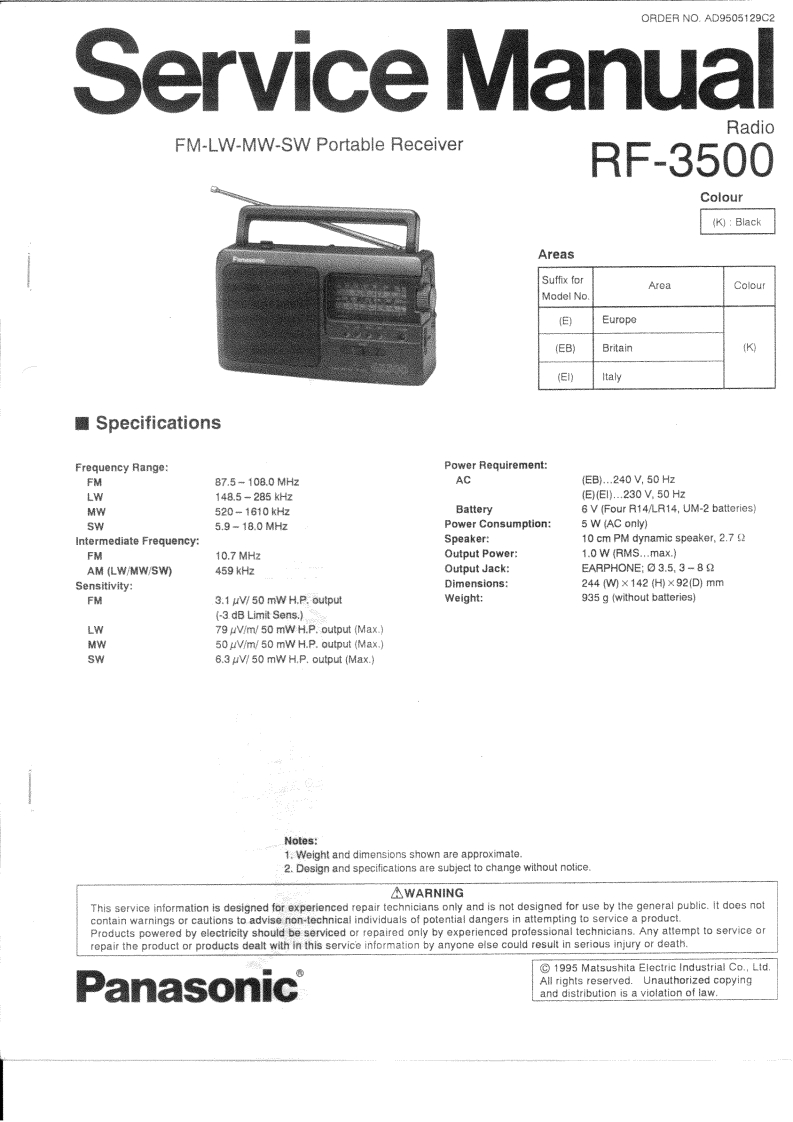

ORDER NO.AD9505129C2Service ManualRadioFM-LW-MW-SW Portable ReceiverRF-3500Colour(K)BlackAreasSuffix forAreaColourModel No间Europe(EB)BritainEItaly☏SpecificationsFrequency Range:Power Requirement:FM87.5-108.0MHzAC(EB)...240 V,50 HzLW148.5-285kHzEE..230V.50HzMW520-1610kHzBattery6 V(Four R14/LR14,UM-2 batteries)SW5.9-18.0MHzPower Consumption:5 W (AC onty)Intermediate Frequency:Speaker:10 cm PM dynamic speaker,2.7 52FM10.7MH2Output Power:1.0 W (RMS...max.)AM (LW/MW/SW)459 kHzOutput Jack:EARPHONE:3.5,3-89Sensitivity:Dimensions:244WM×142H)×92D)mmFM3.1 uV/50 mW H.P.outputWeight:935 g (without batteries)(-3 dB Limit Sens.)LW79 uV/m/50 mW H.P.output (Max.)MW50 uV/m/50 mW H.P.output (Max.6.3 uV/50 mW H.P.output (Max.)Notes:1.Weight and dimensions shown are approximate.2.Design and specifications are subject to change without noticeAWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.it does notcontain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service orrepair the product or products dealt with in this service information by anyone else could result in serious injury or death.1995 Matsushita Electric Industrial Co.,Ltd.PanasonicAll rights reserved.Unauthorized copyingand distribution is a violation of law.
