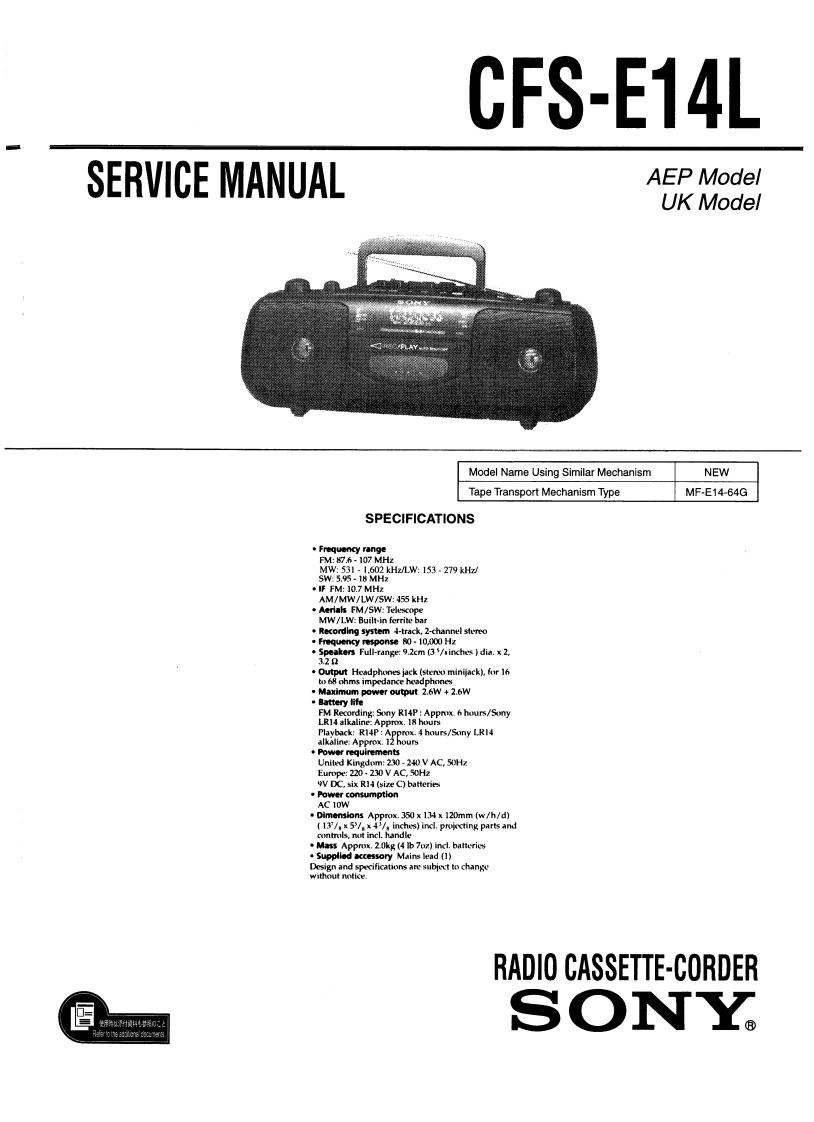

CFS-E14LSERVICE MANUALAEP ModelUK ModelModel Name Using Similar MechanismNEWTape Transport Mechanism TypeMF-E14-64GSPECIFICATIONSFrequeiLw153-279IF FM:10.7 MHzAM/MW/LW/SW:455 kHz*Recording system 4-track,2-channel stereoFrequency response 80-10,000 Hz.Speakers Full-range:9.2cm(3/inches dia.x 2.320Maximum power output 2.6W+2.6WBattery lifen/yPower requirementsUnited Kingdom:230-24 V AC.50Hz·Power consumptionAC 10W.Dimensions Apprx50x1x 120mm (w/h/d)、美13、S:handles anMass Approx.2.0kg (4 Ib 7oz)incl.batterics.Supplled accessory Mains lead (1)RADIO CASSETTE-CORDERSONY
