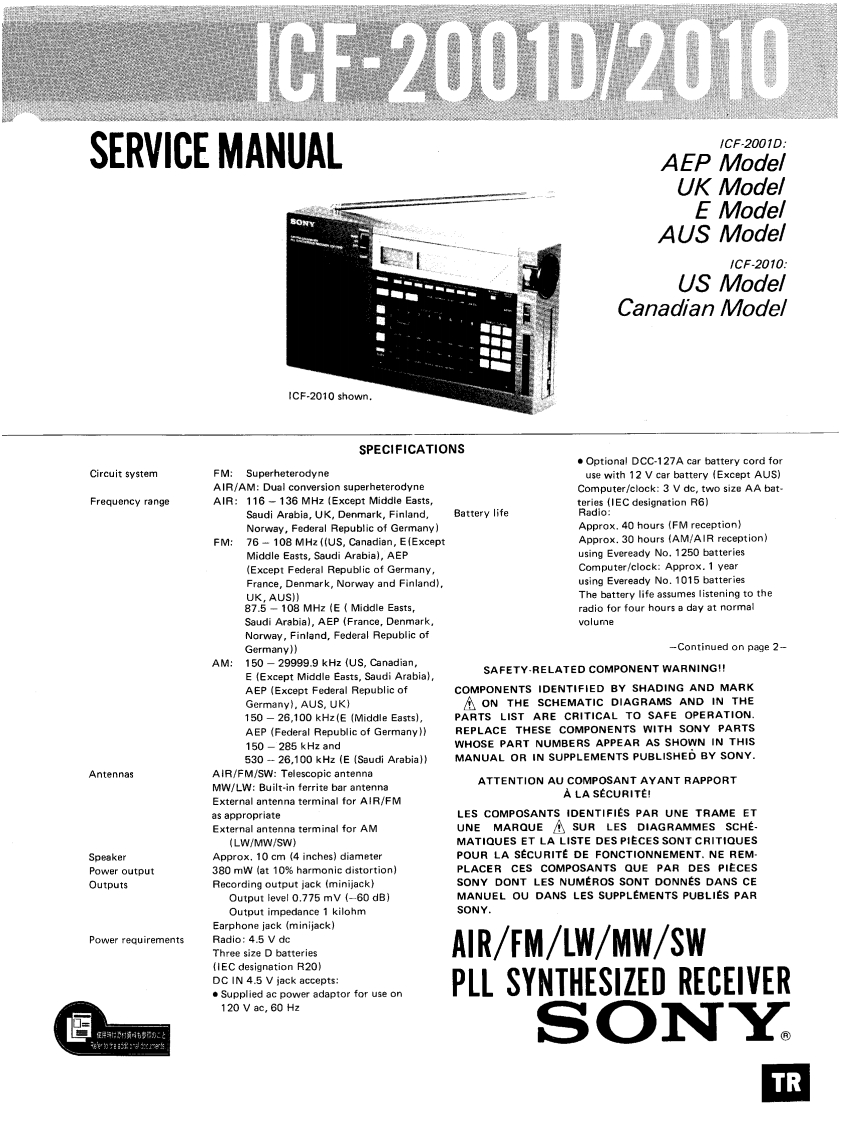

CF2001D/2010SERVICE MANUAL/CF-2001DAEP ModelUK ModelEModelAUS Model/CF.2010.US ModelCanadian ModelCF-2010 shown.SPECIFICATIONSOptional DCC-127A car battery cord forCircuit systemFM:Superheterodyneuse with 12 V car battery (Except AUS)AIR/AM:Dual conversion superheterodyneComputer/clock:3 V de,two size AA batFrequency rangeAlR:116-136 MHz (Except Middle Easts,Saudi Arabia,UK,Denmark,Finland,Battery lifedeion R6)Norway,Federal Republic of Germany)Approx.40 hours (FM reception)FM:76-108 MHz ((US,Canadian,E(ExceptApprox.30 hours (AM/AIR reception)Middle Easts,Saudi Arabia),AEPusing Eveready No.1250 batteries(Except Federal Republic of Germany,Computer/clock:Approx.1 yearFrance,Denmark,Norway and Finland),using Eveready No.1015 batteriesUK,AUS))The battery life assumes listening to the87.5-108 MHz (E Middle Easts,radio for four hours a day at normalSaudi Arabia),AEP (France,Denmark,volumeNorway,Finland,Federal Republic ofGermany))-Continued on page 2-AM:150-29999.9 kHz (US,Canadian,SAFETY-RELATED COMPONENT WARNING!!E(Except Middle Easts,Saudi Arabia)AEP (Except Federal Republic ofCOMPONENTS IDENTIFIED BY SHADING AND MARKGermany).AUS,UK)ON THE SCHEMATIC DIAGRAMS AND IN THE150-26,100 kHz(E (Middle Easts),PARTS LIST ARE CRITICAL TO SAFE OPERATION.AEP (Federal Republic of Germany )REPLACE THESE COMPONENTS WITH SONY PARTS150-285 kHz andWHOSE PART NUMBERS APPEAR AS SHOWN IN THIS530-26,100 kHz (E (Saudi Arabia))MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONYAntennasAlR/FM/SW:Telescopic antennaMW/LW:Built-in ferrite bar antennaATTENTION AU COMPOSANT AYANT RAPPORTExternal antenna terminal for AlR/FMA LA SECURITE!as appropriateLES COMPOSANTS IDENTIFIES PAR UNE TRAME ETExternal antenna terminal for AMUNE MARQUE SUR LES DIAGRAMMES SCHE-(LW/MW/SW)MATIQUES ET LA LISTE DES PIECES SONT CRITIQUESSpeakerApprox.10 cm (4 inches)diameterPOUR LA SECURITE DE FONCTIONNEMENT.NE REMPower output380 mW (at 10%harmonic distortion)PLACER CES COMPOSANTS QUE PAR DES PIECESOutputsRecording output jack (minijack)SONY DONT LES NUMEROS SONT DONNES DANS CEOutput level 0.775 mV(-60 dB)MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAROutput impedance 1 kilohmSONY.Earphone jack (minijack)Power requirementsRadio:4.5 V deThree size D batteriesAIR/FM/LW/MW/SW(IEC designation R20)DC IN 4.5 V jack accepts:.Supplied ac power adaptor for use onPLL SYNTHESIZED RECEIVER120 V ac,60 HzSONY083TR
