Sony_ICF-6500W_参考电器原理图

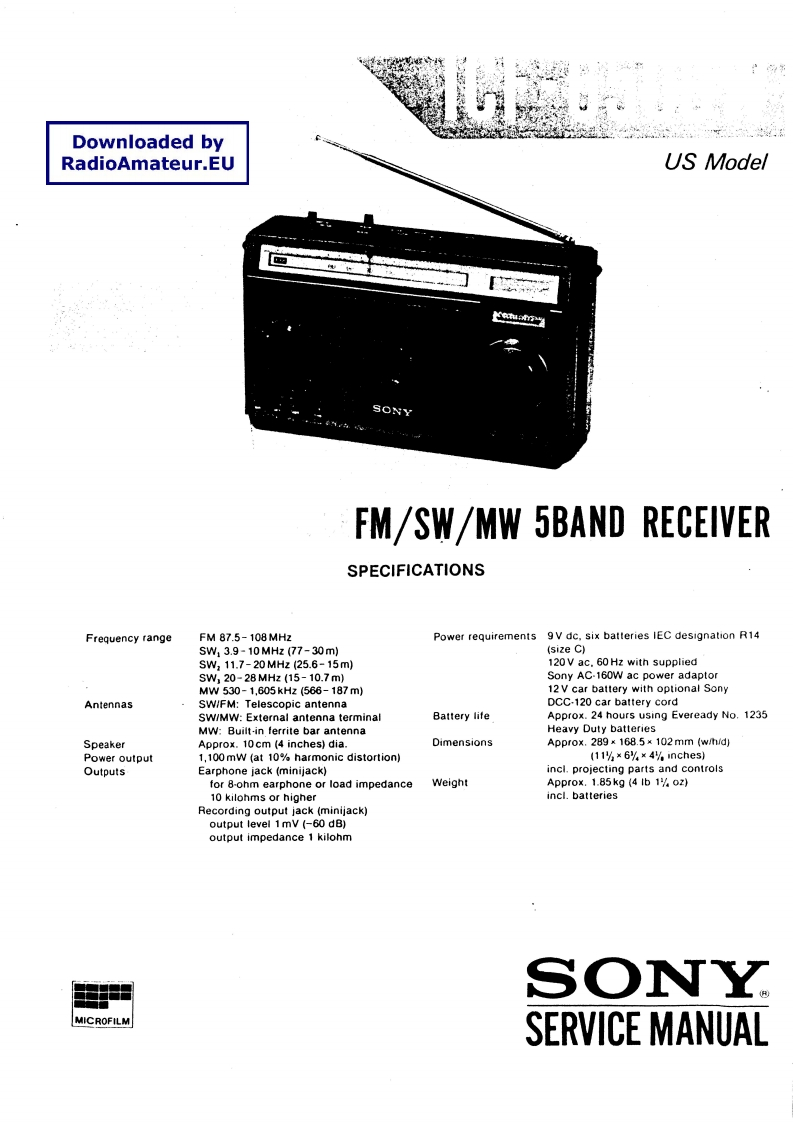

Downloaded byRadioAmateur.EUUS ModelSONYFM/SW/MW 5BAND RECEIVERSPECIFICATIONSFrequency rangeFM87.5-108MHzPower requirements 9V dc,six batteries IEC designation R14SW13.9-10MHz(77-30m)(size C)Sw211.7-20MHz25.6-15m)120V ac.60 Hz with suppliedSW120-28MHz(15-10.7m)Sony AC.160W ac power adaptorMW530-1,605kHz566-187m)12V car battery with optional SonyAntennasSW/FM:Telescopic antennaDCC-120 car battery cordSW/MW:External antenna terminalBattery lifeApprox.24 hours using Eveready No.1235MW:Built-in ferrite bar antennaHeavy Duty batteriesSpeakerApprox.10cm (4 inches)dia.DimensionsApprox.289x 168.5x 102mm (w/hid)Power output1,100mW (at 10%harmonic distortion)(11%×6y×4%inches)OutputsEarphone jack (minijack)incl.projecting parts and controlsfor 8-ohm earphone or load impedanceWeightApprox.1.85kg (4 Ib 1%oz)10 kilohms or higherincl.batteriesRecording output jack(minijack)output level 1mV(-60 dB)output impedance 1 kilohm甲SONYMICROFILMSERVICE MANUAL
