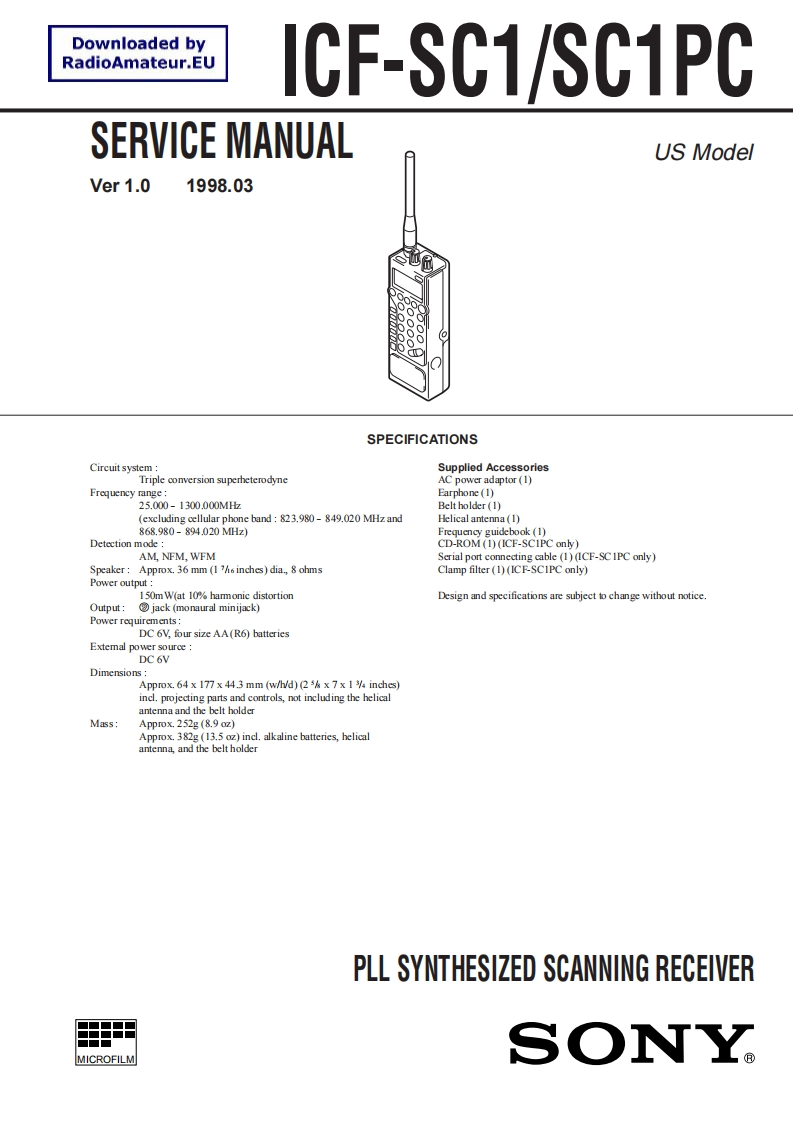

Downloaded byRadioAmateur.EUICF-SC1/SC1PCSERVICE MANUALUS ModelVer 1.01998.03SPECIFICATIONSCircuit system:Supplied AccessoriesTriple conversion superheterodyneAC power adaptor(1)Frequency range:Earphone (1)25.000-1300.000MHzBelt holder(1)(excluding cellular phone band 823.980-849.020 MHz andHelical antenna(1)868.980-894.020MHz)Frequency guidebook (1)Detection mode:CD-ROM(1)(ICF-SCIPC only)AM NFM,WFMSerial port connecting cable (1)(ICF-SC IPC only)Speaker:Approx.36 mm (1 7h6 inches)dia.,8 ohmsClamp filter (1)(ICF-SCIPC only)Power output150mW(at 10%harmonic distortionDesign and specifications are subject to change without noticeOutput:jack (monaural minijack)Power requirements:DC 6V,four size AA(R6)batteriesExtemal power sourceDC 6VDimensions:Approx.64 x 177 x 44.3 mm (w/h/d)(2 x 7x 1 inches)incl.projecting parts and controls,not including the helicalantenna and the belt holderMass:Approx.252g(8.9 oz)Approx.382g (13.5 oz)incl.alkaline batteries,helicalantenna,and the belt holderPLL SYNTHESIZED SCANNING RECEIVER田■MICROFILMSONY
