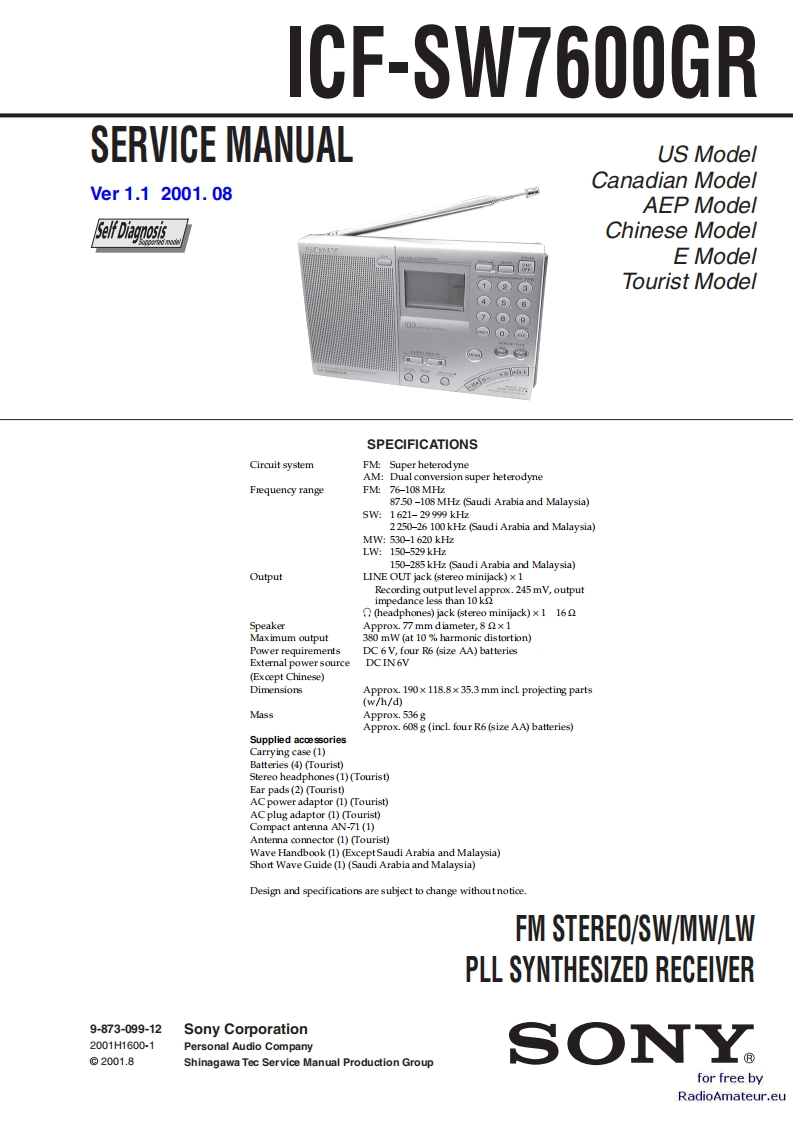

ICF-SW7600GRSERVICE MANUALUS ModelVer1.12001.08Canadian ModelAEP Model5 Diags级.Chinese ModelEModelTourist Model4(67)B)0maOO OSPECIFICATIONSCircuit systemFM:Super heterodyneAM:Dual conversion super heterodyneFrequency rangeFM:76-108 MHz87.50-108 MHz (Saudi Arabia and Malaysia)SW:1621-29999kHz2250-26 100 kHz(Saudi Arabia and Malaysia)MW:530-1620kHzLW:150-529kHz150-285 kHz (Saudi Arabia and Malaysia)OutputLINE OUT jack (stereo minijack)x 1Recording output level approx.245 mV,outputimpedance less than 10k(headphones)jack (stereo minijack)x1 162SpeakerApprox.77 mm diameter,8 x 1Maximum output380 mW (at 10 harmonic distortion)Power requirementsDC 6 V,four R6(size AA)batteriesExternal power sourceDCIN6V(Except Chinese)DimensionsApprox.190x118.8x35.3mm incl projecting parts(w/h/d)MassApprox.536gApprox.608g(incl.four R6(size AA)batteries)Supplied accessoriesCarrying case (1)Batteries(4)(Tourist)Stereo headphones(1)(Tourist)Ear pads(2)(Tourist)AC power adaptor (1)(Tourist)AC plug adaptor (1)(Tourist)Compact antenna AN-71(1)Antenna connector (1)(Tourist)Wave Handbook (1)(Except Saudi Arabia and Malaysia)Short Wave Guide (1)(Saudi Arabia and Malaysia)Design and specifications are subject to change without noticeFM STEREO/SW/MW/LWPLL SYNTHESIZED RECEIVER9-873-099-12Sony Corporation2001H1600-1Personal Audio Company⊙2001.8SONYShinagawa Tec Service Manual Production Groupfor free byRadioAmateur.eu
