TK-6110维修手册_B51-8956-00

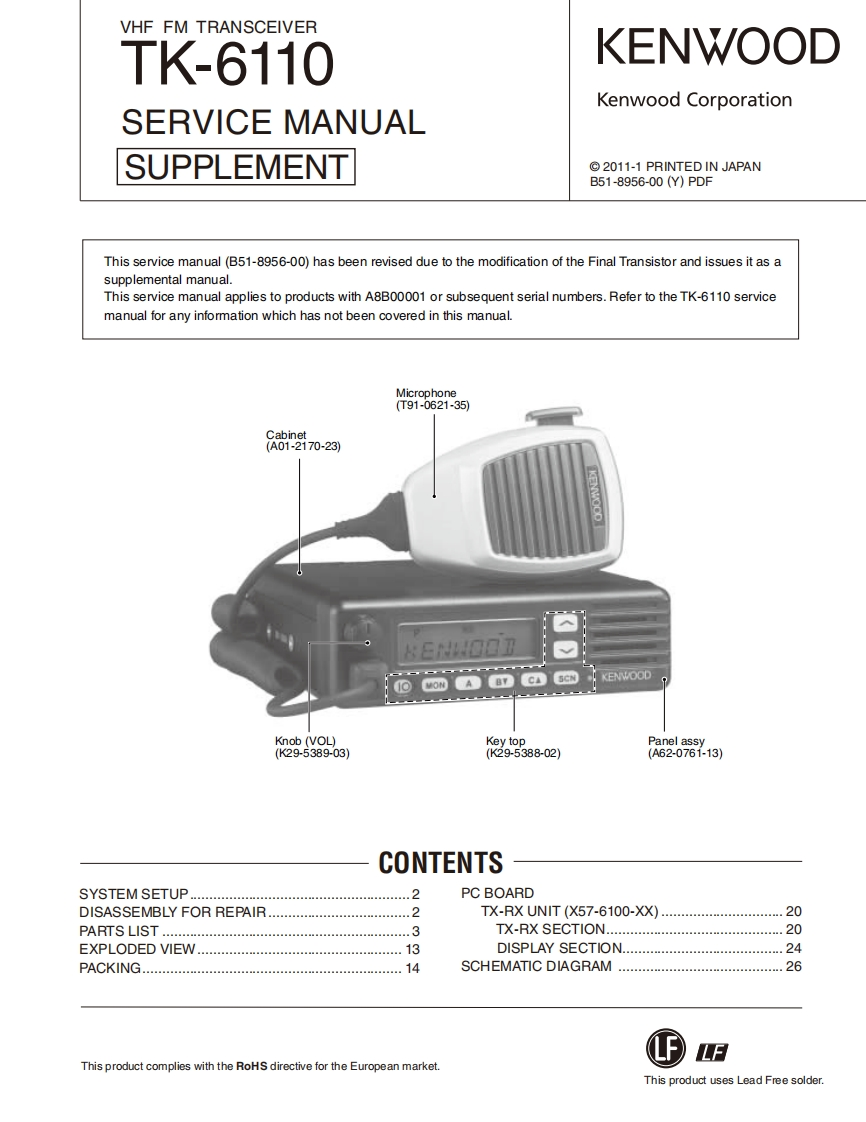

VHF FM TRANSCEIVERTK-6110KENWOODKenwood CorporationSERVICE MANUALSUPPLEMENT2011-1 PRINTED IN JAPANB51-8956-00Y)PDFThis service manual(B51-8956-00)has been revised due to the modification of the Final Transistor and issues it as asupplemental manual.This service manual applies to products with A8B00001 or subsequent serial numbers.Refer to the TK-6110 servicemanual for any information which has not been covered in this manual.Microphone(T91-0621-35)Cabinet(A01-2170-23)KENWOOOKENWOOD:Knob(VOL)Key topPanel assy(K29-5389-03)(K29-5388-02)(A62-0761-13)CONTENTSSYSTEMSETUP2PC BOARDDISASSEMBLY FOR REPAIR.....TX-RX UNIT (X57-6100-XX)..20PARTS LIST3TX-RX SECTION...20EXPLODEDDISPLAY SECTION..24PACKING14SCHEMATIC DIAGRAM........26LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
