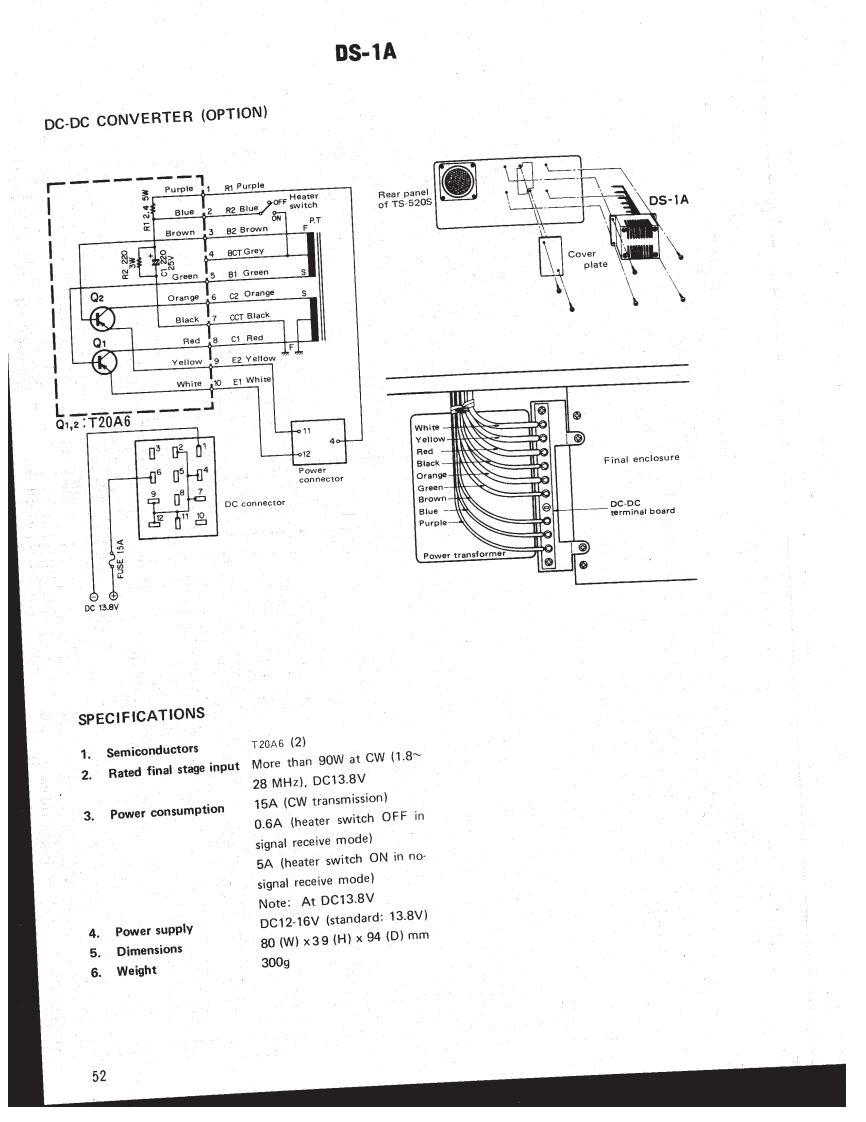

TS-520S_DS-1A_DC-DC_converter_参考电器原理图

DS-1ADC-DC CONVERTER (OPTION)PurpleR1 PurpleR2 Blue90 FF Heat棉7switchDS-1ABlue2PTBrown3B2 BrownBCT GreyGreenB1 GreenplateQ2Orange6C2 OrangeBlackCCT Black01RedC1 RedYellowE2 YellowWhite0E1 White0,2T20A6Yellow的o12RedBlackFinal enclosureconnectorOrangeGreenBrownBluenSalboandPower transformerc138VSPECIFICATIONS1.SemiconductorsT20A6(2)2.Rated final stage inputMore than 90W at CW(1.8~28 MHz),DC13.8V3.Power consumption15A (CW transmission)0.6A (heater switch OFF insignal receive mode)5A (heater switch ON in no-signal receive mode】Note:At DC13.8V4.Power supplyDC12-16V (standard:13.8V)80(W)x39(H)x94(D)mm5.Dimensions6.Weight300g52
