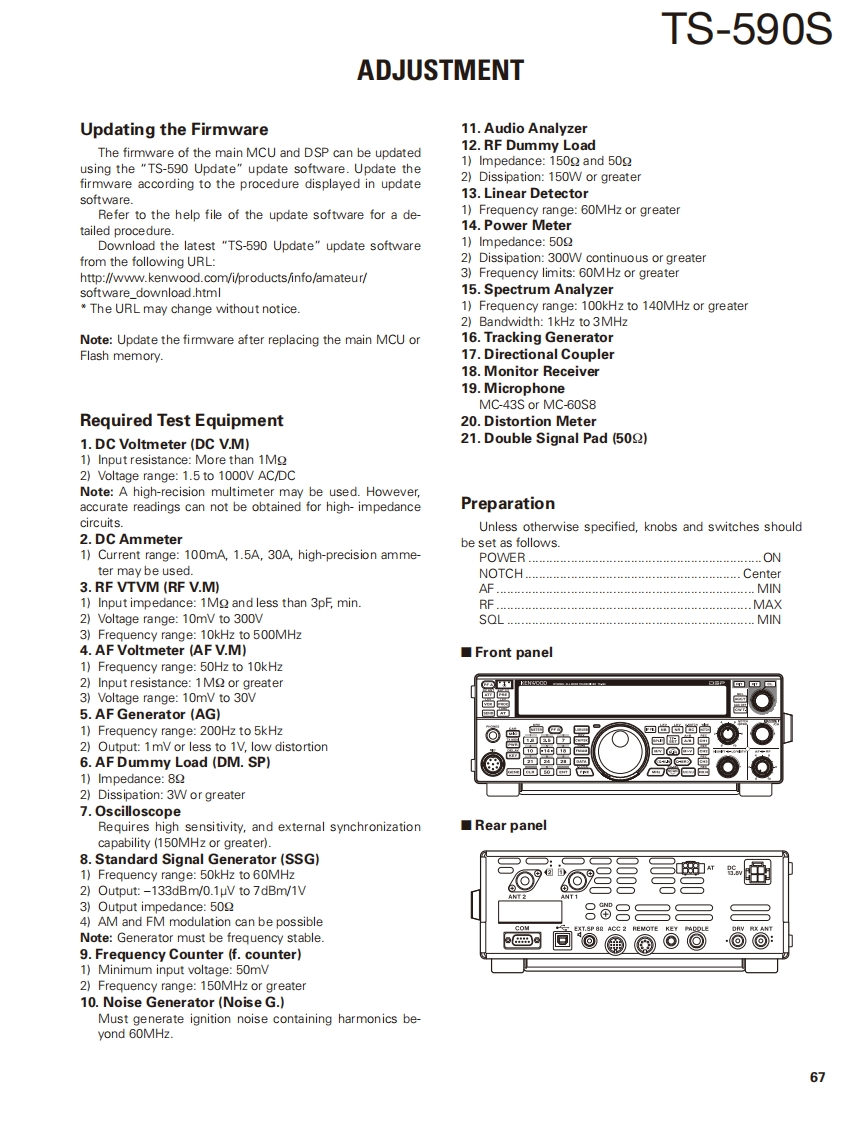

TS-590SADJUSTMENTUpdating the Firmware11.Audio AnalyzerThe firmware of the main MCU and DSP can be updated12.RF Dummy Load1)Impedance:1502 and 502using the "TS-590 Update"update software.Update thefirmware according to the procedure displayed in update2)Dissipation:150W or greatersoftware.13.Linear DetectorRefer to the help file of the update software for a de-1)Frequency range:60MHz or greatertailed procedure14.Power MeterDownload the latest "TS-590 Update"update software1)Impedance:502from the following URL:2)Dissipation:300W continuous or greaterhttp://www.kenwood.com/i/products/info/amateur/3)Frequency limits:60MHz or greatersoftware_download.html15.Spectrum Analyzer*The URL may change without notice.1)Frequency range:100kHz to 140MHz or greater2)Bandwidth:1kHz to 3MHzNote:Update the firmware after replacing the main MCU or16.Tracking GeneratorFlash memory.17.Directional Coupler18.Monitor Receiver19.MicrophoneMC-43S or MC-60S8Required Test Equipment20.Distortion Meter1.DC Voltmeter (DC V.M)21.Double Signal Pad (502)1)Input resistance:More than 1Mg2)Voltage range:1.5 to 1000V AC/DCNote:A high-recision multimeter may be used.However,accurate readings can not be obtained for high-impedancePreparationcircuits.Unless otherwise specified,knobs and switches should2.DC Ammeterbe set as follows.1)Current range:100mA,1.5A,30A,high-precision amme-POWER.ONter may be used.3.RF VTVM (RF V.M)AF-MIN1)Input impedance:1Mg and less than 3pF,min.RF.....MAX2)Voltage range:10mV to 300VSQLMIN3)Frequency range:10kHz to 500MHz4.AF Voltmeter (AF V.M)■Front panel1)Frequency range:50Hz to 10kHz2)Input resistance:1 Mo or greater3)Voltage range:10mV to 30V5.AF Generator (AG)1)Frequency range:200Hz to 5kHz2)Output:1mV or less to 1V,low distortion6.AF Dummy Load (DM.SP)1)Impedance:822)Dissipation:3W or greater7.OscilloscopeRequires high sensitivity,and external synchronization■Rear panelcapability (150MHz or greater).8.Standard Signal Generator(SSG)1)Frequency range:50kHz to 60MHz2)Output:-133dBm/0.1uV to 7dBm/1V©遭@3)Output impedance:5024)AM and FM modulation can be possibleNote:Generator must be frequency stable.高o倒@6OO简9.Frequency Counter (f.counter)1)Minimum input voltage:50mV2)Frequency range:150MHz or greater10.Noise Generator (Noise G.)Must generate ignition noise containing harmonics be-yond 60MHz.67
