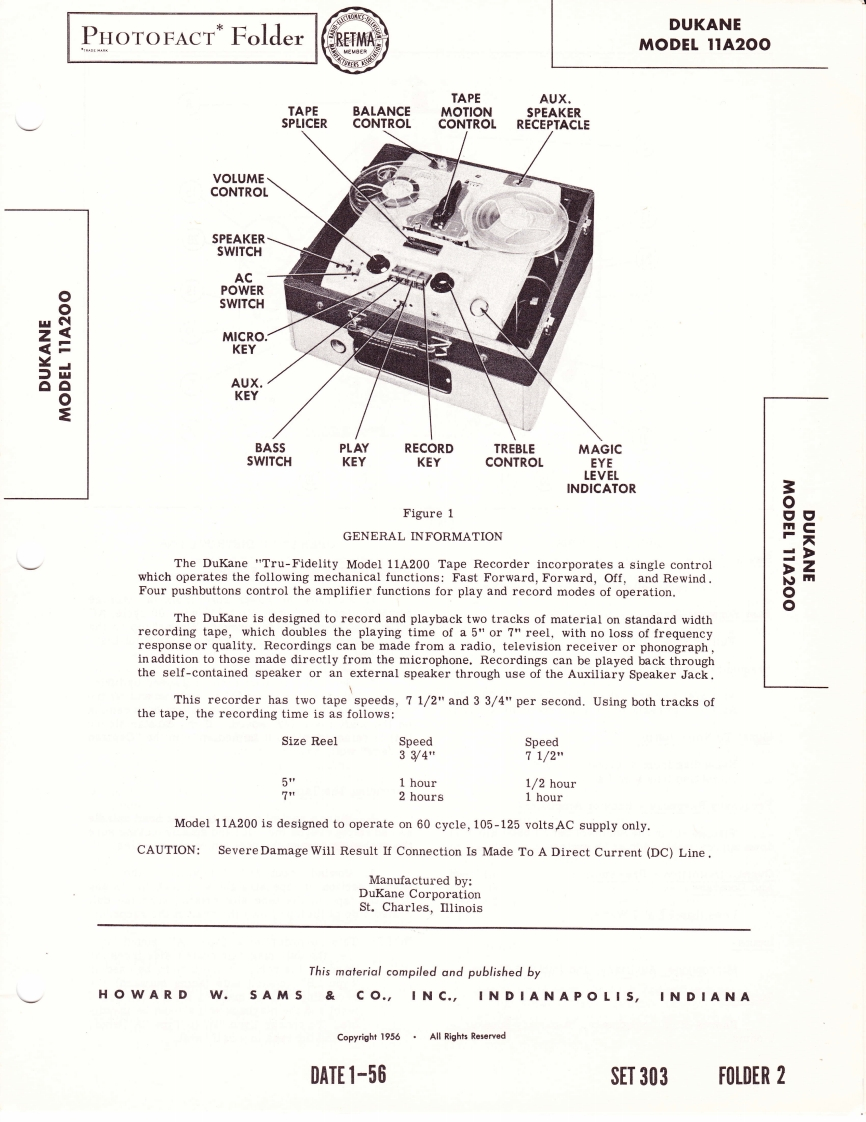

PHOTOFACT*FolderDUKANERETMAMODEL 11A200TAPEAUX.TAPEBALANCEMOTIONSPEAKERSPLICERCONTROLCONTROL RECEPTACLEVOLUMECONTROLSPEAKERSWITCHACPOWERSWITCHMICRO.KEYAUX.KEYBASSPLAYRECORDTREBLEMAGICSWITCHKEYKEYCONTROLEYELEVELINDICATORFigure 1GENERAL INFORMATIONThe DuKane "Tru-Fidelity Model 11A200 Tape Recorder incorporates a single controlDUKANEwhich operates the following mechanical functions:Fast Forward,Forward,Off,and Rewind.MODEL 11A200Four pushbuttons control the amplifier functions for play and record modes of operation.The DuKane is designed to record and playback two tracks of material on standard widthrecording tape,which doubles the playing time of a 5"or 7"reel,with no loss of frequencyresponse or quality.Recordings can be made from a radio,television receiver or phonographin addition to those made directly from the microphone.Recordings can be played back throughthe self-contained speaker or an external speaker through use of the Auxiliary Speaker JackThis recorder has two tape speeds,7 1/2"and 3 3/4"per second.Using both tracks ofthe tape,the recording time is as follows:Size ReelSpeedSpeed33/4"71/2"酬1 hour1/2 hour2 hours1 hourModel 11A200 is designed to operate on 60 cycle,105-125 volts AC supply only.CAUTION:Severe Damage Will Result If Connection Is Made To A Direct Current (DC)Line.Manufactured by:DuKane CorporationSt,Charles,IllinoisThis material compiled and published byHOWARDW.SAMS CO.,INC.,IN DIANAPOLIS,IND IANACopyright 1956.All Rights ReservedDATE1-56SET303FOLDER 2
