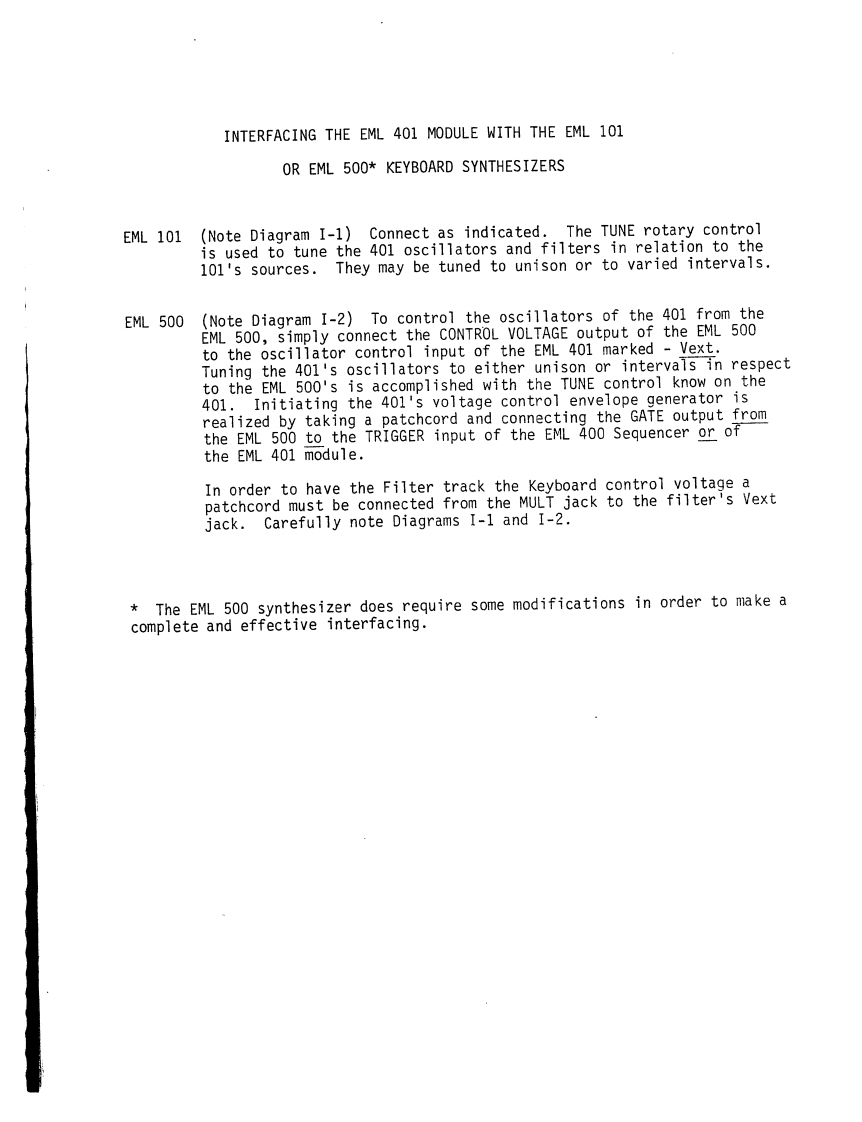

INTERFACING THE EML 401 MODULE WITH THE EML 101OR EML 500*KEYBOARD SYNTHESIZERSEML 101 (Note Diagram I-1)Connect as indicated.The TUNE rotary controlis used to tune the 401 oscillators and filters in relation to the101's sources.They may be tuned to unison or to varied intervals.EML 500 (Note Diagram I-2)To control the oscillators of the 401 from theEML 500,simply connect the CONTROL VOLTAGE output of the EML 500to the oscillator control input of the EML 401 marked Vext.Tuning the 401's oscillators to either unison or intervals in respectto the EML 500's is accomplished with the TUNE control know on the401.Initiating the 401's voltage control envelope generator isrealized by taking a patchcord and connecting the GATE output fromthe EML 500 to the TRIGGER input of the EML 400 Sequencer or ofthe EML 401 module.In order to have the Filter track the Keyboard control voltage apatchcord must be connected from the MULT jack to the filter's Vextjack.Carefully note Diagrams I-1 and I-2.The EML 500 synthesizer does require some modifications in order to make acomplete and effective interfacing.
