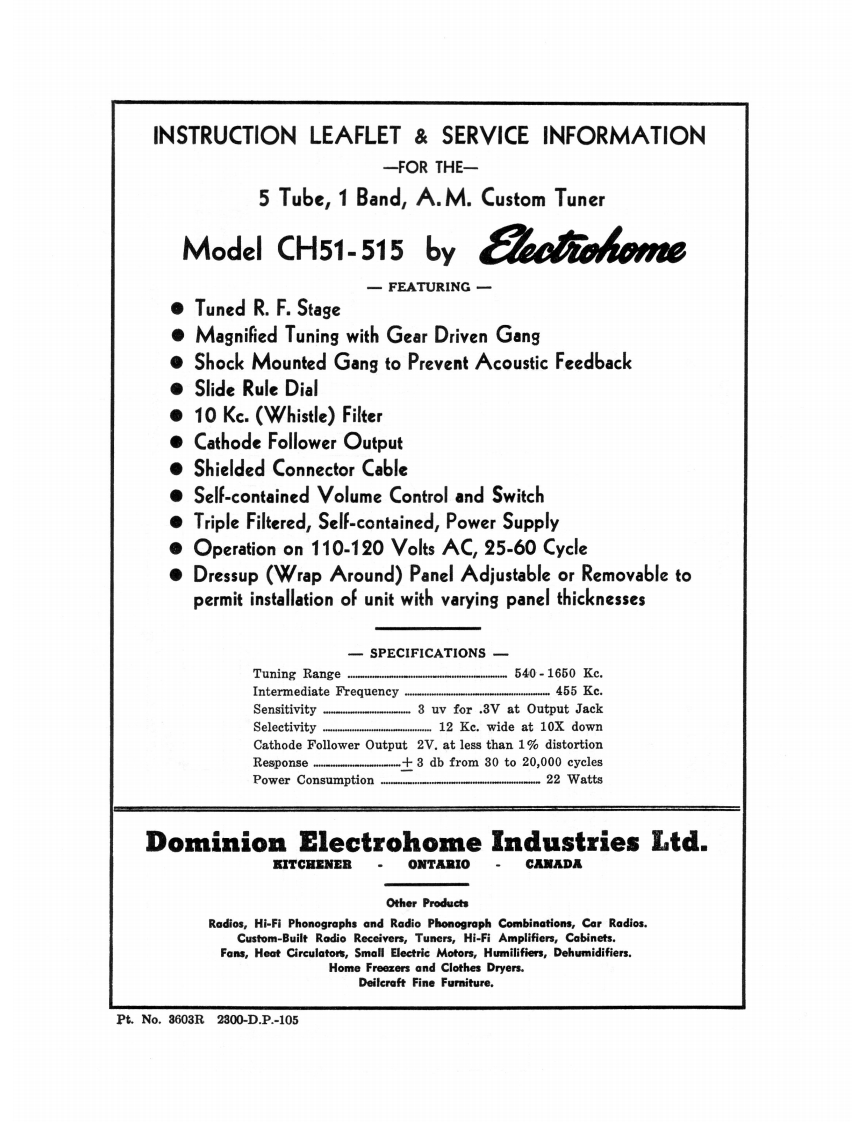

INSTRUCTION LEAFLET SERVICE INFORMATION-FOR THE-5 Tube,1 Band,A.M.Custom TunerModel CH51-515 by eadovore一FEATURING●Tuned R.F.StageMagnified Tuning with Gear Driven GangShock Mounted Gang to Prevent Acoustic Feedback●Slide Rule Dial10 Kc.(Whistle)Filter●Cathode Follower OutputShielded Connector CableSelf-contained Volume Control and SwitchTriple Filtered,Self-contained,Power SupplyOperation on 110-120 Volts AC,25-60 Cycle●Dressup (Wrap Around)Panel Adjustable or Removable topermit installation of unit with varying panel thicknesses-SPECIFICATIONS-Tuning Range ..-540-1650KC.Intermediate Frequency..mw…455Kc.Sensitivity.3 uv for .3V at Output JackSelectivity...12 Ke.wide at 10x downCathode Follower Output 2V.at less than 1%distortionResponse3 db from 30 to 20,000 cyclesPower Consumption.22 WattsDominion Electrohome Industries Ltd.KITCHENER·ONTARIOCANADAOther ProductsRadios,Hi-Fi Phonographs and Radio Phonograph Combinations,Car Radios.Custom-Built Radio Receivers,Tuners,Hi-Fi Amplifiers,Cabinets.Fans,Heat Circulators,Small Electric Motors,Humilifiers,Dehumidifiers.Home Freezers and Clothes Dryers.Deilcraft Fine Furniture.Pt.No.3603R2300-D.P.-105
