Electrohome-PA400-pwr-维修说明书手册含电器原理图

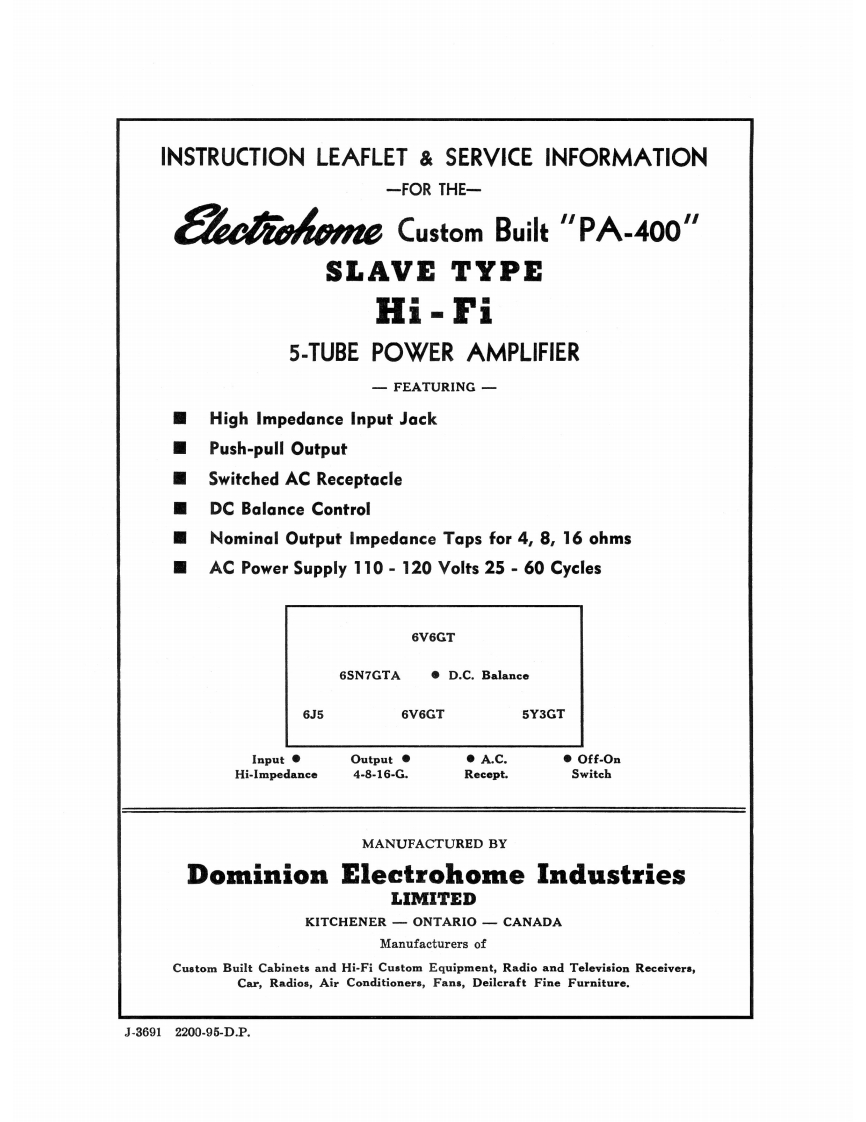

INSTRUCTION LEAFLET SERVICE INFORMATION-FOR THE-e Custom Built "PA-400"SLAVE TYPEHi-Fi5-TUBE POWER AMPLIFIER一FEATURING一High Impedance Input Jack■Push-pull OutputSwitched AC Receptacle国DC Balance Control圆Nominal Output Impedance Taps for 4,8,16 ohms图AC Power Supply 110-120 Volts 25-60 Cycles6V6GT6SN7GTA●D.C.Balance6J56V6GT5Y3GTInputOutput●●A.C.●0ff.0nHi-Impedance4-8-16-G.Recept.SwitchMANUFACTURED BYDominion Electrohome IndustriesLIMITEDKITCHENER -ONTARIO-CANADAManufacturers ofCustom Built Cabinets and Hi-Fi Custom Equipment,Radio and Television Receivers,Car,Radios,Air Conditioners,Fans,Deileraft Fine Furniture.J-36912200-95-D.P.
