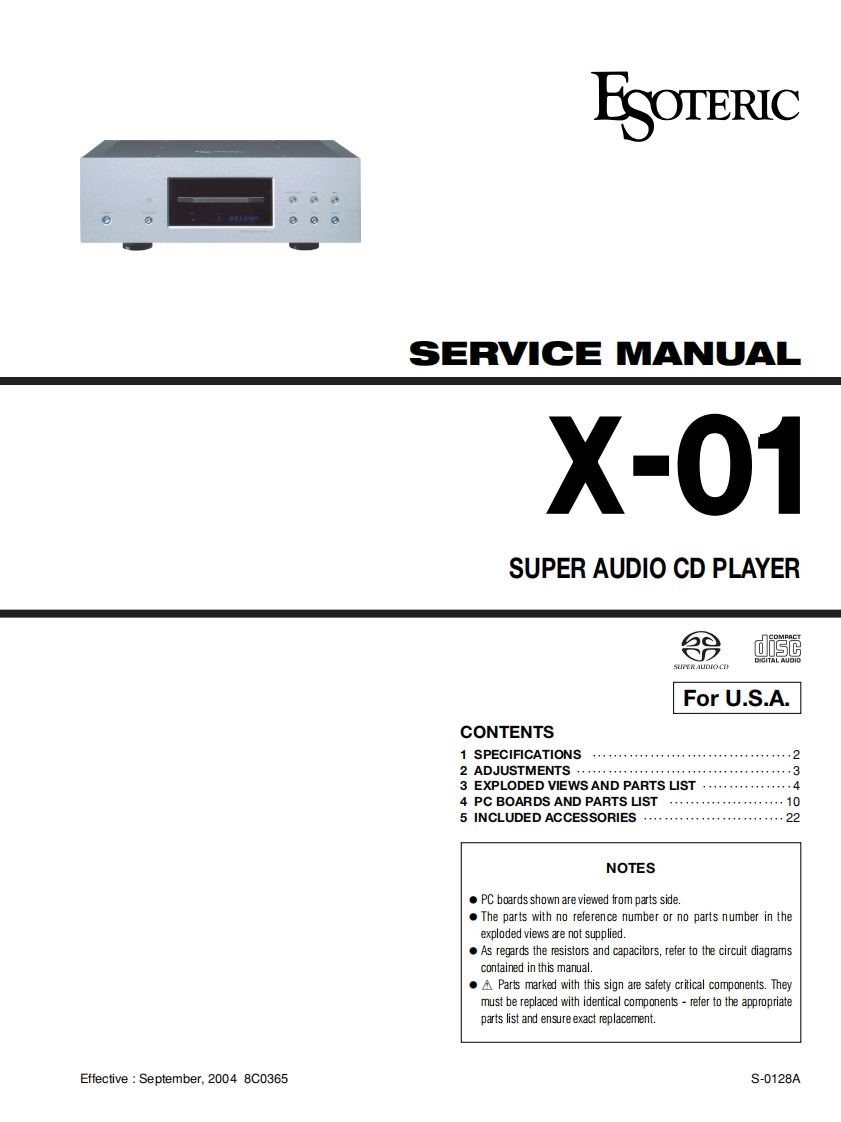

EOTERICp1SERVICE MANUALX-01SUPER AUDIO CD PLAYER8d5髋For U.S.A.CONTENTS1 SPECIFICATIONS…22 ADJUSTMENTS,,,,,,,,,,,,,,,,,,,,33 EXPLODED VIEWS AND PARTS LIST.................44 PC BOARDS AND PARTS LIST .....................105 INCLUDED ACCESSORIES...........................22NOTESPC boards shown are viewed from parts side.The parts with no reference number or no parts number in theexploded views are not supplied.As regards the resistors and capacitors,refer to the circuit diagramscontained in this manual.A Parts marked with this sign are safety critical components.Theymust be replaced with identical components-refer to the appropriateparts list and ensureexact replacement.Effective:September,2004 8C0365S-0128A
