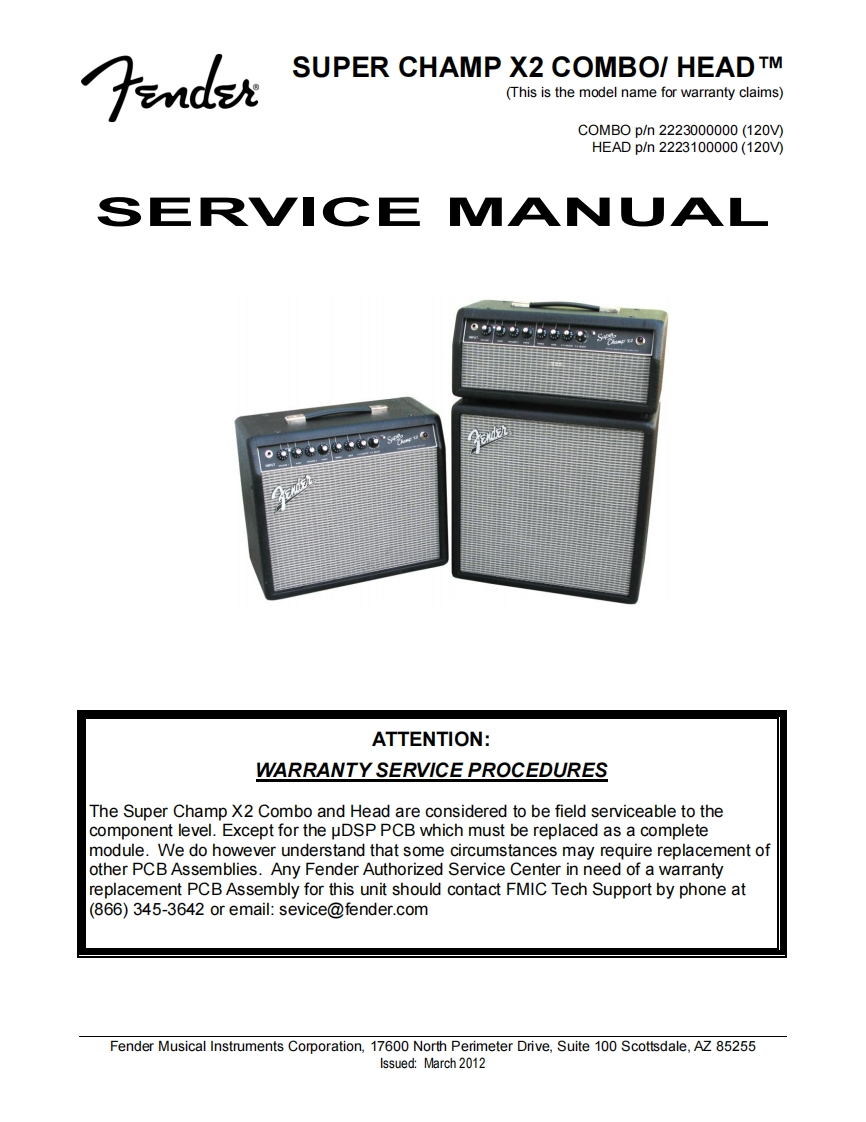

fendxSUPER CHAMP X2 COMBO/HEADTM(This is the model name for warranty claims)C0MB0p/n2223000000(120)HEAD p/n2223100000(1200SERVICE MANUALATTENTION:WARRANTY SERVICE PROCEDURESThe Super Champ X2 Combo and Head are considered to be field serviceable to thecomponent level.Except for the uDSP PCB which must be replaced as a completemodule.We do however understand that some circumstances may require replacement ofother PCB Assemblies.Any Fender Authorized Service Center in need of a warrantyreplacement PCB Assembly for this unit should contact FMIC Tech Support by phone at(866)345-3642 or email:sevice@fender.comFender Musical Instruments Corporation,17600 North Perimeter Drive,Suite 100 Scottsdale,AZ 85255Issued:March 2012
