Fisher-90R-int-维修说明书手册含电器原理图2

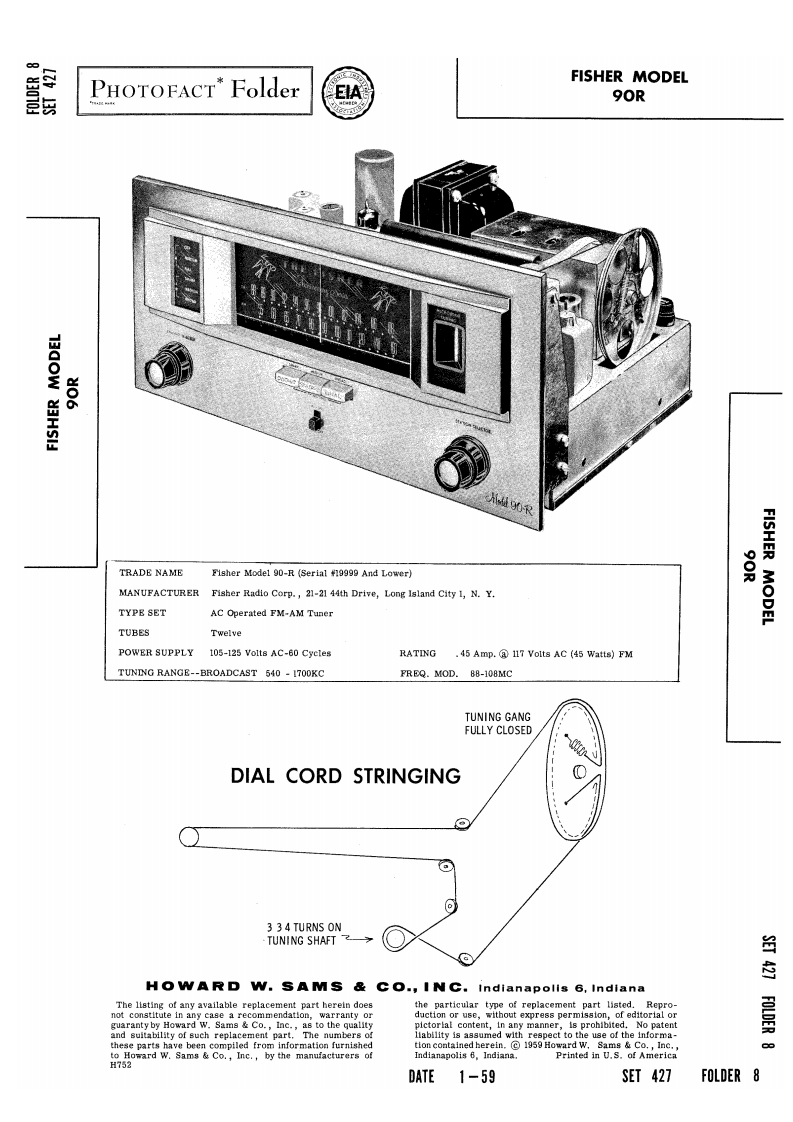

霸PHOTOFACT*FolderFISHER MODELEIA90R影TRADE NAMEFisher Model 90-R (Serial #19999 And Lower)MANUFACTURERFisher Radio Corp.,21-21 44th Drive,Long Island City 1,N.Y.FISHER MODELTYPE SETAC Operated FM-AM TunerTUBESTwelvePOWER SUPPLY105-125 Volts AC-60 CyelesRATING.45 Amp.117 Volts AC (45 Watts)FMTUNING RANGE--BROADCAST 540 -1700KCFREQ.MOD.88-108MCTUNING GANGFULLY CLOSEDDIAL CORD STRINGING07o3 34 TURNS ONTUNING SHAFT色HOWARD W.SAMSCO.,INC.Indianapolis 6,IndianaThe listing of any available replacement part herein doesthe particular type of replacement part listed.Repro-not constitute in any case a recommendation,warranty orduction or use,without express permission,of editorial orguarantyby Howard W.Sams Co.,Inc.,as to the qualitypictorlal content,in any manner,is prohibited.No patentFOLDERand sujiability of such replacement part.The numbersofitabllity is assumed with respect to the use of the informa-tion contained herein.1959 Howard w.amsCo.,Inc.mndianapolis 6,Indiana.Printed in U.S.of AmericaDATE 1-59SET 427FOLDER 8
