Fisher-101R-tun-维修说明书手册含电器原理图

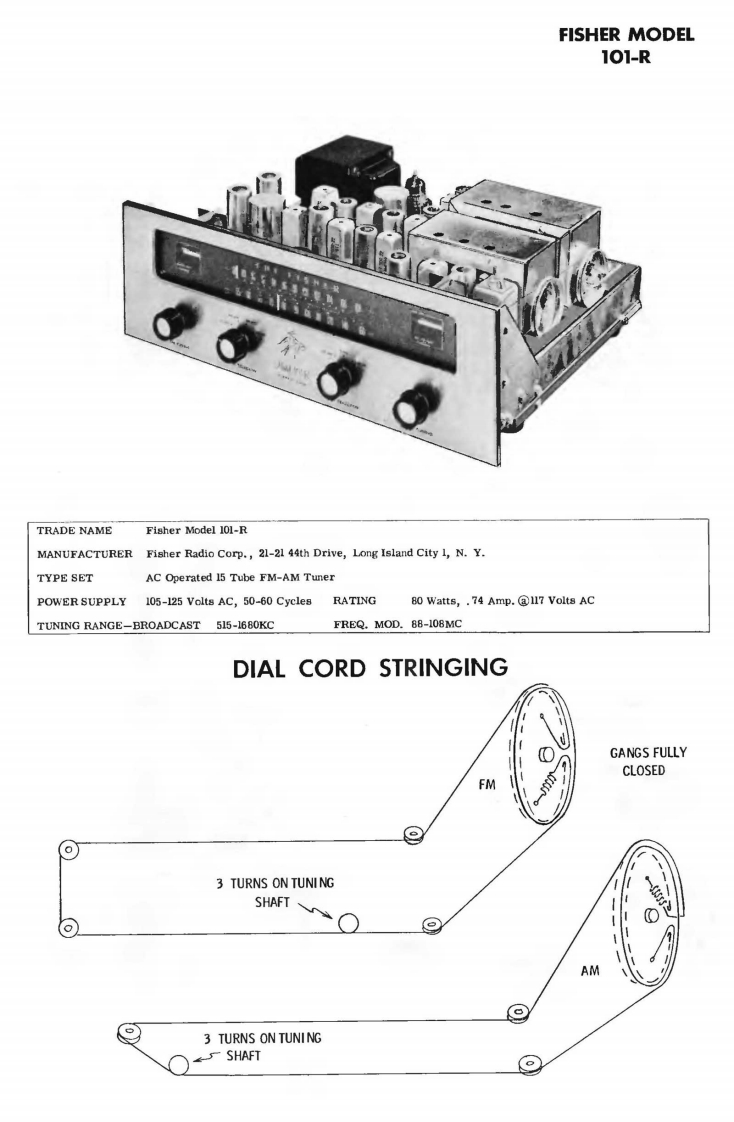

FISHER MODEL101-RTRADE NAMEFisher Model 101-RMANUFACTURERFisher Radio Corp.,21-21 44th Drive,Long Island City 1,N.Y.TYPE SETAC Operated 15 Tube FM-AM TunerPOWER SUPPLY105-125 Volts AC,50-60 Cycles RATING80 Watts,.74 Amp.@17 Volts ACTUNING RANGE-BROADCAST 515-1680KCFREQ.MOD.88-108MCDIAL CORD STRINGINGOGANGS FULLYCLOSEDFM⊙3 TURNS ON TUNINGSHAFTAM⑨3 TURNS ON TUNINGSHAFT
