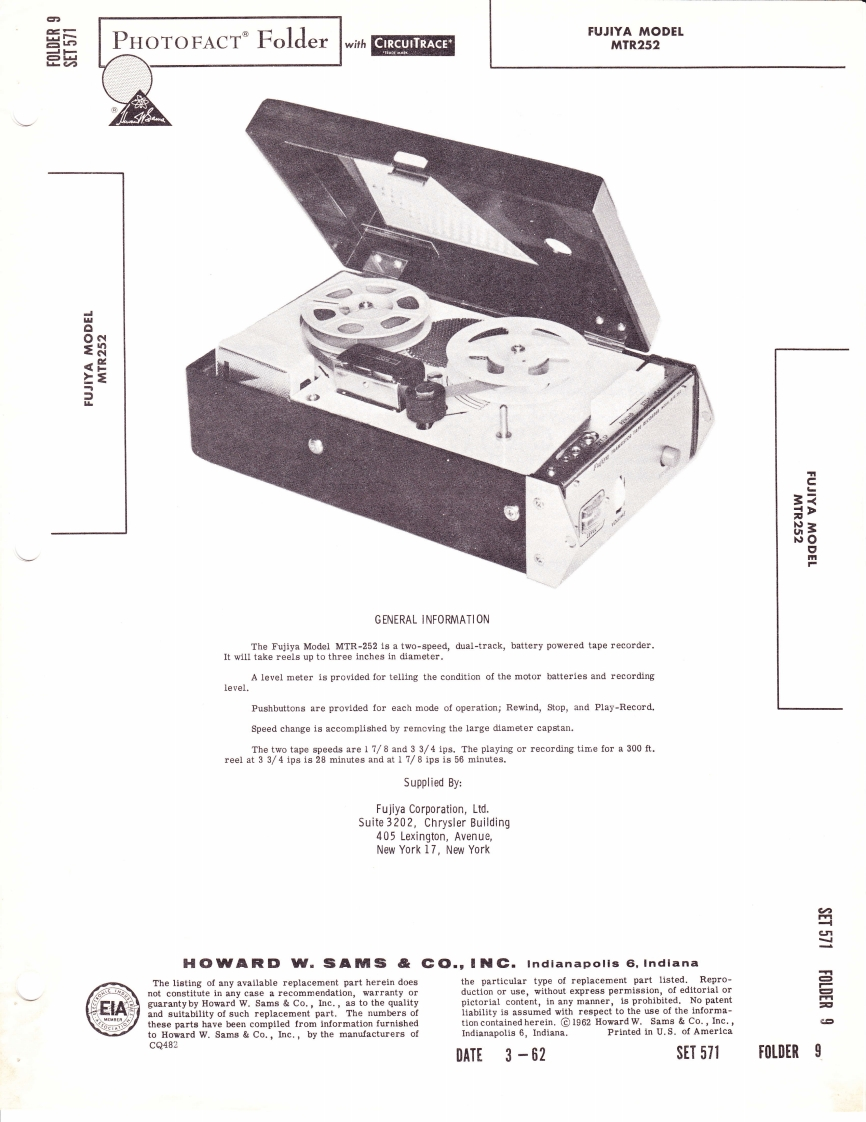

m露PHOTOFACT°FolderFUJIYA MODELwithCIRCUITRACE*MTR252MTR252FUJIYA MODELGENERAL INFORMATIONThe Fujiya Model MTR-252 is a two-speed,dual-track,battery powered tape recorder.It will take reels up to three inches in diameter.A level meter is provided for telling the condition of the motor batteries and recordinglevel.Pushbuttons are provided for each mode of operation;Rewind,Stop,and Play-Record.Speed change is accomplished by remeving the large diameter capstan.The two tape speeds are 1 7/8 and 33/4 ips.The playing or recording time for a 300 ft.reel at 33/4 ips is 28 minutes and at 1 7/8 ips is 56 minutes.Supplied By:Fujiya Corporation,Ltd.Suite 3202,Chrysler Building405 Lexington,Avenue,New York 17,New YorkSE7571HOWARD W.SAMSCO.,INC.Indlanapolis 6.IndlanaThe listing of any avallable replacement part herein doesthe particular type of replacement part listed.not constitute inease a recommendation,a下下anty o万duction or use.without express permission,of editorlal orEIAguaranty by Howard W.Sams&Co.,Ine.,as to the qualitypictorial content,in any manner,is prohibited.No patentFOLDERand suitability of such replacement part.The numbers oliability is assumed with respect to the use of the informa-these parts have been compiled from information furnishedtion contained herein.Howard W.Sams Co.,Inc.to Howard W.Sams Co.,Ine.,by the manufacturers ofIndianapolis 6,Indiana.Printed in U.S.of AmericaCQ482DATE 3-62SET 571FOLDER9
