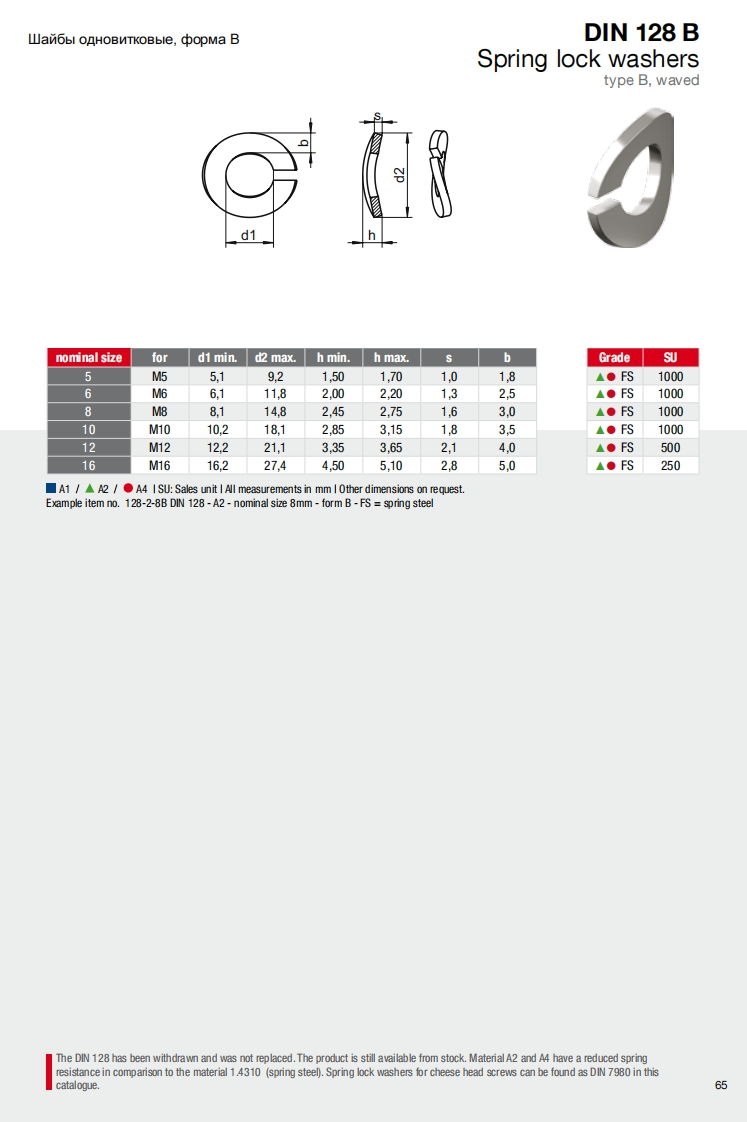

山aM6 bI OHOBNTKOBble,中opMa BDIN 128 BSpring lock washerstype B,wavednominal sizeford1 min.d2 max.h min.h max.bGradeSU5M55,19.21.501.701,01,8▲●FS10006M66,111,82.002,201,32.5▲●FS10008M88,114,82.452,751.63.0▲●FS100010M1010.218.12.853,151.835▲·FS100012M1212.221,13,353,652,14,0▲●FS50016M1616,227,44,505,102,85.0▲●FS250A1 /A A2 /A4 I SU:Sales unit I All measurements in mm I Other dimensions on request.Example item no.128-2-8B DIN 128-A2-nominal size 8mm form B-FS spring steelThe DIN 128 has been withdrawn and was not replaced.The product is still available from stock.Material A2 and A4 have a reduced springresistance in comparison to the material 1.4310 (spring steel).Spring lock washers for cheese head screws can be found as DIN 7980 in thiscatalogue.65
