Acer-Aspire-4750_4750G_Wistron_JE40-HR_Discrete_UMA_Rev-1笔记本电器原理图

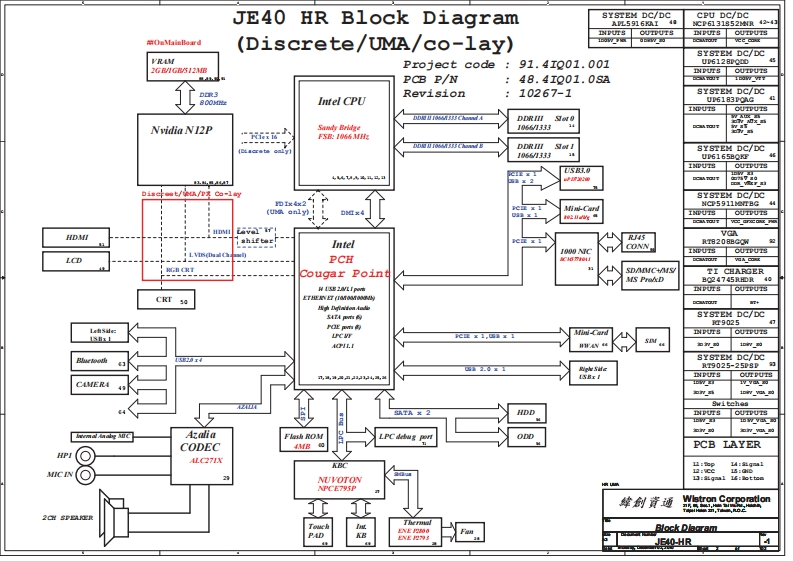

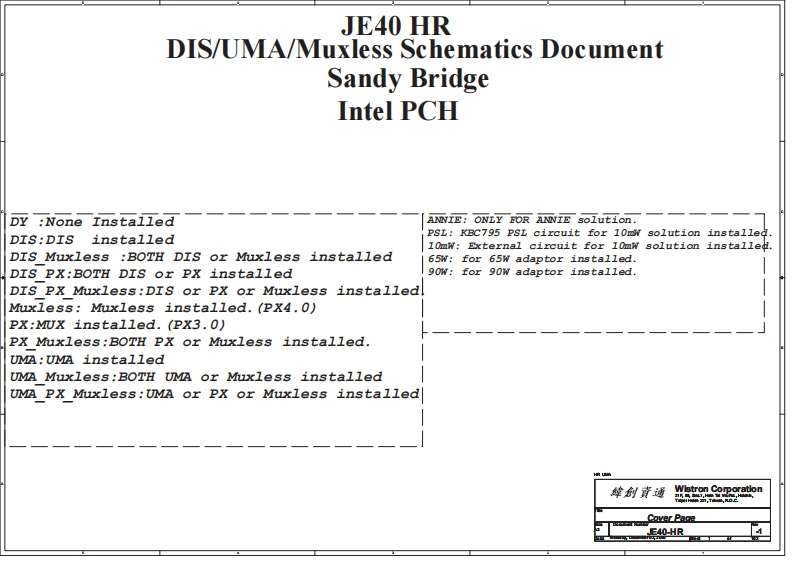

JE40 HRDIS/UMA/Muxless Schematics DocumentSandy BridgeIntel PCHDY None InstalledANNIE:ONLY FOR ANNIE solution.DIS:DIS installedPSL:KBC795 PSL circuit for 10mw solution installed.10mW:External circuit for 10mw solution installed.DIS Muxless BOTH DIS or Muxless installed65W:for 65w adaptor installed.DIS PX:BOTH DIS or PX installed90w:for 90w adaptor installed.DIS PX Muxless:DIS or PX or Muxless installed.Muxless:Muxless installed.(PX4.0)PX:MUX installed.(PX3.0)PX Muxless:BOTH PX or Muxless installed.UMA:UMA installedUMA Muxless:BOTH UMA or Muxless installedUMA PX Muxless:UMA or PX or Muxless installed罅创青通Cover Paoe40-HR
