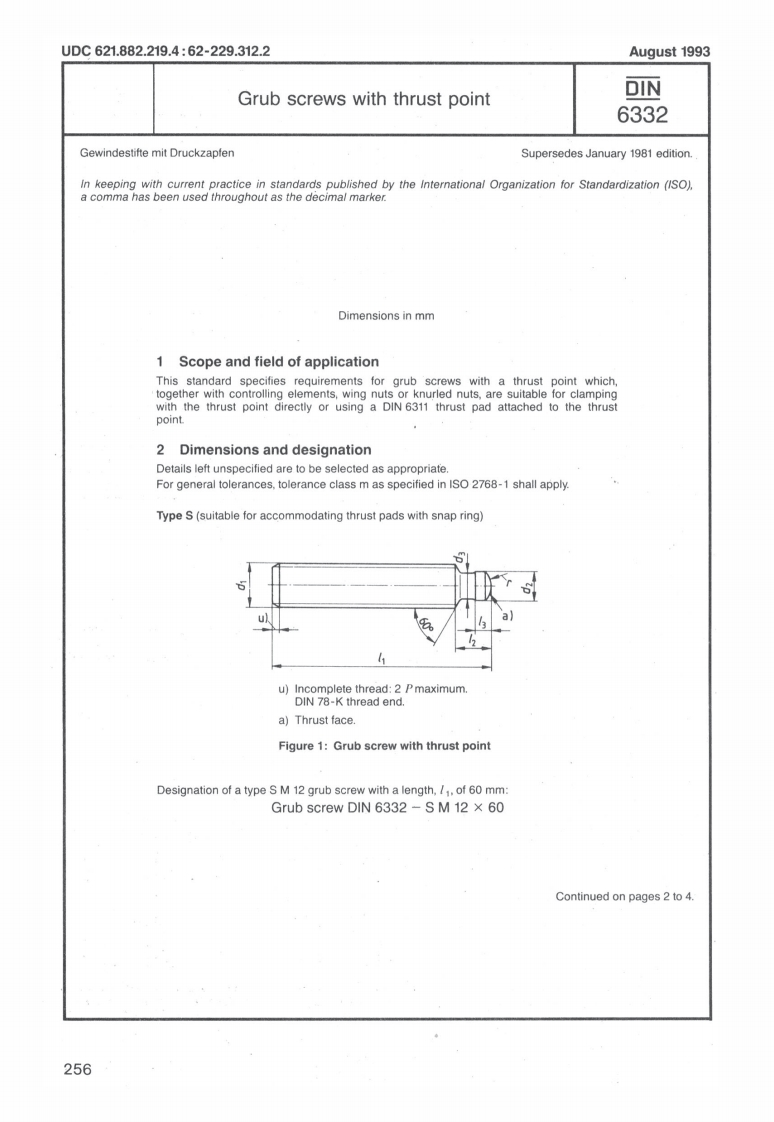

UDC621.882.219.4:62-229.312.2August 1993Grub screws with thrust pointDIN6332Gewindestifte mit DruckzapfenSupersedes January 1981 edition.In keeping with current practice in standards published by the International Organization for Standardization (ISO).a comma has been used throughout as the decimal marker.Dimensions in mm1 Scope and field of applicationThis standard specifies requirements for grub screws with a thrust point which,together with controlling elements,wing nuts or knurled nuts,are suitable for clampingwith the thrust point directly or using a DIN 6311 thrust pad attached to the thrustpoint。2 Dimensions and designationDetails left unspecified are to be selected as appropriate.For general tolerances,tolerance class m as specified in ISO 2768-1 shall apply.Type S(suitable for accommodating thrust pads with snap ring)u)Incomplete thread:2 Pmaximum.DIN 78-K thread end.a)Thrust face.Figure 1:Grub screw with thrust pointDesignation of a type S M 12 grub screw with a length,/of 60 mm:Grub screw DIN 6332-S M 12 x 60Continued on pages 2 to 4.256
