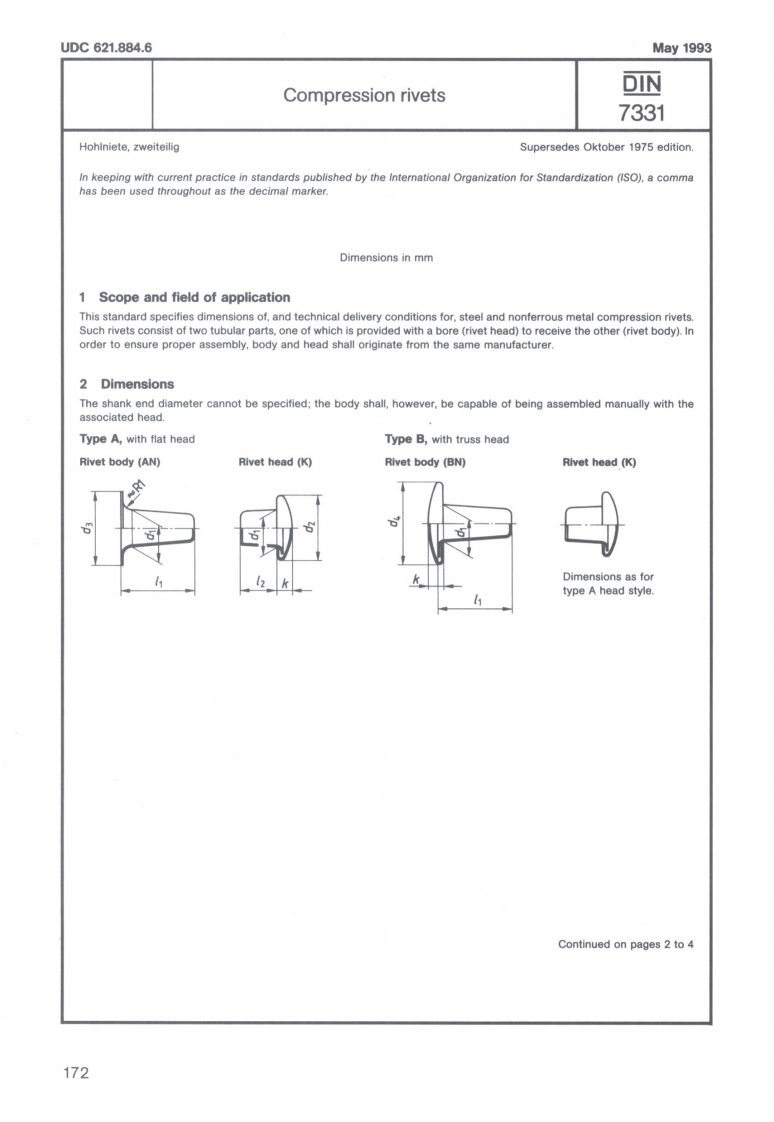

UDC621.884.6May 1993Compression rivets瓜7331HohIniete,zweiteiligSupersedes Oktober 1975 editionIn keeping with current practice in standards published by the International Organization for Standardization (ISO),a commahas been used throughout as the decimal marker.Dimensions in mm1 Scope and field of applicationThis standard specifies dimensions of,and technical delivery conditions for,steel and nonferrous metal compression rivets.Such rivets consist of two tubular parts,one of which is provided with a bore (rivet head)to receive the other (rivet body).Inorder to ensure proper assembly,body and head shall originate from the same manufacturer.2 DimensionsThe shank end diameter cannot be specified;the body shall,however,be capable of being assembled manually with theassociated head.Type A,with flat headType B,with truss headRivet body (AN)Rivet head (K)Rivet body (BN)Rivet head (K)2Dimensions as fortype A head style.Continued on pages 2 to 4172
