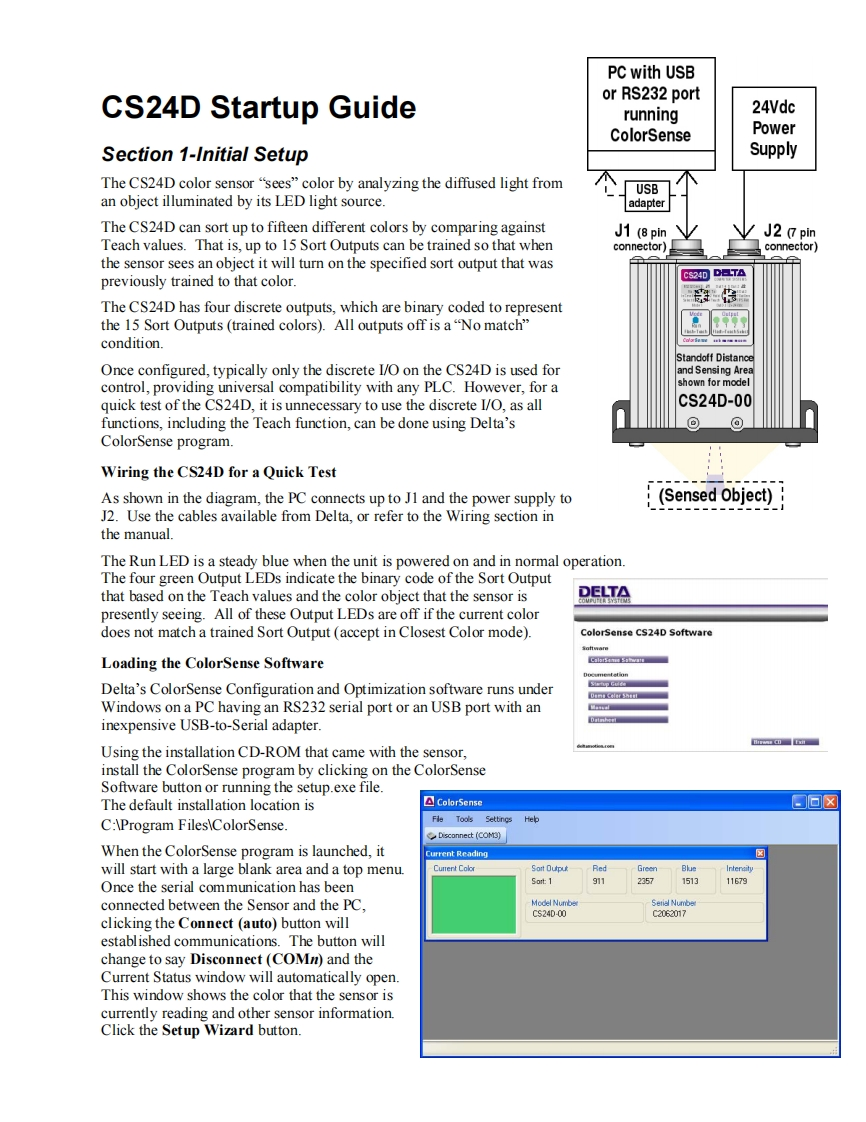

PC with USBCS24D Startup Guideor RS232 portrunning24VdcColorSensePowerSection 1-Initial SetupSupplyThe CS24D color sensor "sees"color by analyzing the diffused light fromUSBan object illuminated by its LED light source.adapterThe CS24D can sort up to fifteen different colors by comparing againstJ1 (8 pinJ2 (7pinTeach values.That is,up to 15 Sort Outputs can be trained so that whenconnector)connector)the sensor sees an object it will turn on the specified sort output that waspreviously trained to that color.CS24DD-The CS24D has four discrete outputs,which are binary coded to representthe 15 Sort Outputs (trained colors).All outputs off is a"No match"condition.Standoff DistanceOnce configured,typically only the discrete I/O on the CS24D is used forand Sensing Areacontrol,providing universal compatibility with any PLC.However,for ashown for modelquick test of the CS24D,it is unnecessary to use the discrete I/O,as allCS24D-00functions,including the Teach function,can be done using Delta's⊙ColorSense program.Wiring the CS24D for a Quick TestAs shown in the diagram,the PC connects up to J1 and the power supply to(Sensed Object):J2.Use the cables available from Delta,or refer to the Wiring section inthe manual.The Run LED is a steady blue when the unit is powered on and in normal operation.The four green Output LEDs indicate the binary code of the Sort Outputthat based on the Teach values and the color object that the sensor isDELTApresently seeing.All of these Output LEDs are off if the current colordoes not match a trained Sort Output (accept in Closest Color mode).ColorSense CS24D SoftwareLoading the ColorSense SoftwareCalorsevee SahvattentetionDelta's ColorSense Configuration and Optimization software runs underWindows on a PC having an RS232 serial port or an USB port with aninexpensive USB-to-Serial adapter.Using the installation CD-ROM that came with the sensor,install the ColorSense program by clicking on the ColorSenseSoftware button or running the setup.exe file.The default installation location is△ColorSense口▣☒C:Program FilesColorSense.Fle Tools SettingsHebpDisconnect (COM)When the ColorSense program is launched,iturrent Readingwill start with a large blank area and a top menu.Sort OuputRedGreenBlueIntereitySort:19112357Once the serial communication has been151311679connected between the Sensor and the PC.Model NumberSerial NumberCS24D-00C206207clicking the Connect (auto)button willestablished communications.The button willchange to say Disconnect(COMn)and theCurrent Status window will automatically open.This window shows the color that the sensor iscurrently reading and other sensor information.Click the Setup Wizard button.
