DIN2527Blind-Flanges法兰尺寸参考

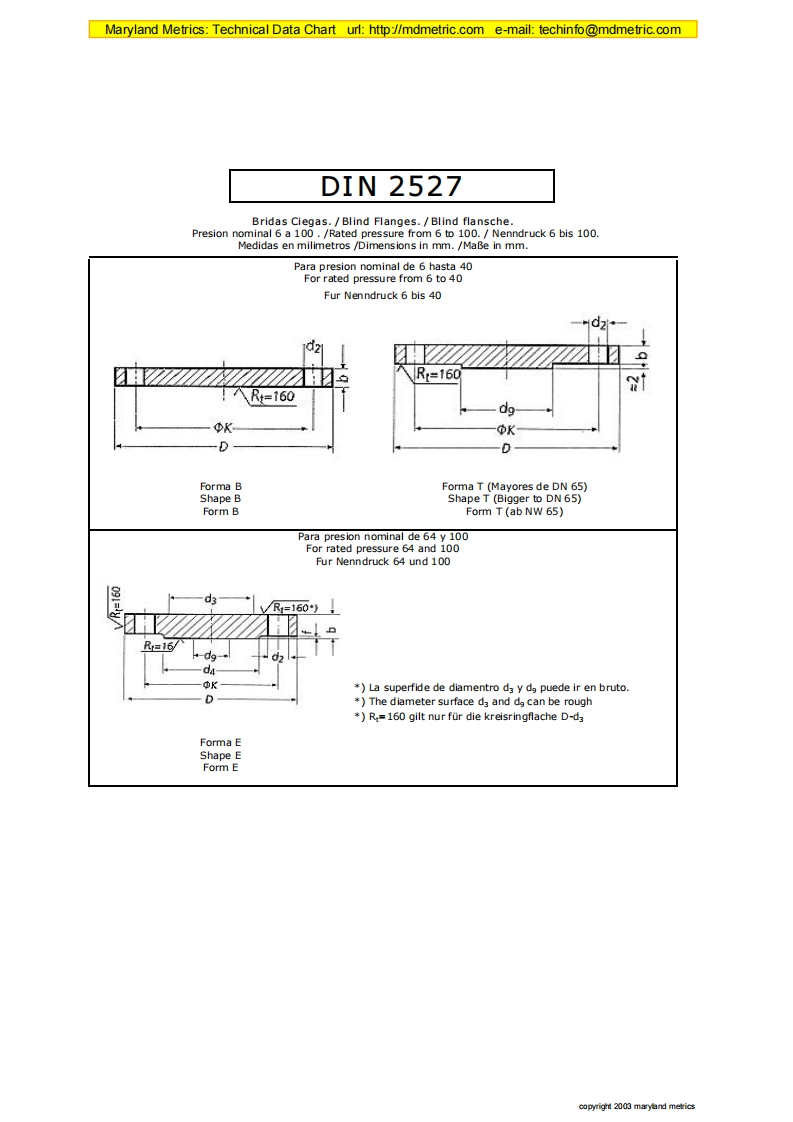

Maryland Metrics:Technical Data Chart url:http://mdmetric.com e-mail:techinfo@mdmetric.comDIN 2527Bridas Ciegas.Blind Flanges.Blind flansche.Presion nominal 6 a 100./Rated pressure from 6 to 100.Nenndruck 6 bis 100.Medidas en milimetros /Dimensions in mm./MaBe in mm.Para presion nominal de 6 hasta 40For rated pressure from 6 to 40Fur Nenndruck 6 bis 400一R=160!Rt=160dgKKD0Forma BForma T (Mayores de DN 65)Shape BShape T (Bigger to DN65)Form BForm T(ab NW 65)Para presion nominal de 64 y 100For rated pressure 64 and 100Fur Nenndruck 64 und 100d1=160R=16/-dgd4*La superfide de diamentro d3 y da puede ir en bruto.D*The diameter surface d3 and da can be rough*)R,=160 gilt nur fur die kreisringflache D-d3Forma EShape EForm E
