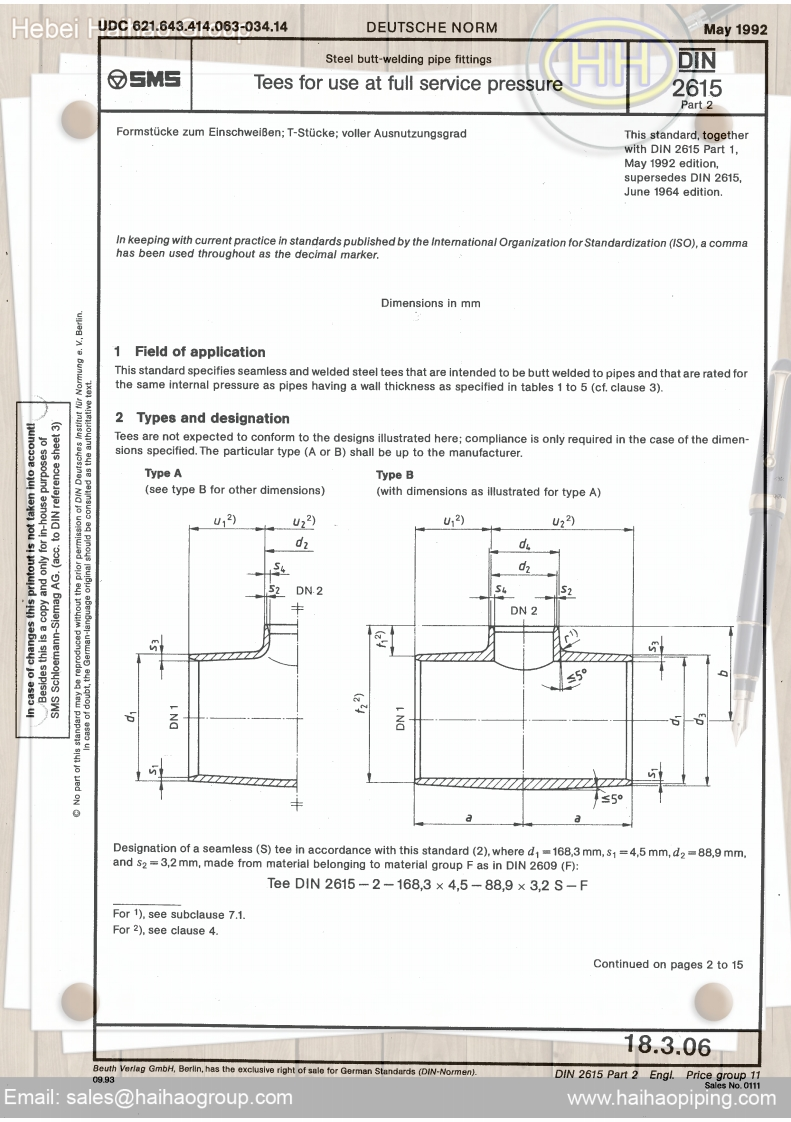

Hebei Hupa621.643.414.063-034,14DEUTSCHE NORMMay 1992Steel butt-welding pipe fittings丞SMSTees for use at full service pressureHU2615Part 2Formstucke zum EinschweiBen;T-Stucke;voller AusnutzungsgradThis standard,togetherwith DIN 2615 Part 1,May 1992 edition,supersedes DIN 2615,June 1964 edition.In keeping with current practice in standards published by the Intemational Organization for Standardization (ISO),a commahas been used throughout as the decimal marker.Dimensions in mm1Field of applicationThis standard specifies seamless and welded steel tees that are intended to be butt welded to pipes and that are rated forthe same internal pressure as pipes having a wall thickness as specified in tables 1 to 5(cf.clause 3).2 Types and designationTees are not expected to conform to the designs illustrated here;compliance is only required in the case of the dimen-jo sesodand asnoy-sions specified.The particular type (A or B)shall be up to the manufacturer.Type AType B(see type B for other dimensions)(with dimensions as illustrated for type A)012)U22)u12)U223dzd.54d2DN.2DN 2≤50Designation of a seamless (S)tee in accordance with this standard(2),where d=168,3 mm,s1=4,5 mm,d2=88,9 mm.and s2=3,2mm,made from material belonging to material group F as in DIN 2609 (F):TeeD1N2615-2-168,3×4,5-88,9×3,2S-FFor 1),see subclause 7.1.For 2),see clause 4.Continued on pages 2 to 1518.3.06Beuth Verlag GmbH,Borlin,has the exclusive right of sale for German Standards (DIN-Normen)09.93DIN 2615 Part 2 Engl PriceEmail:sales@haihaogroup.comwww.haihaopiping.com
