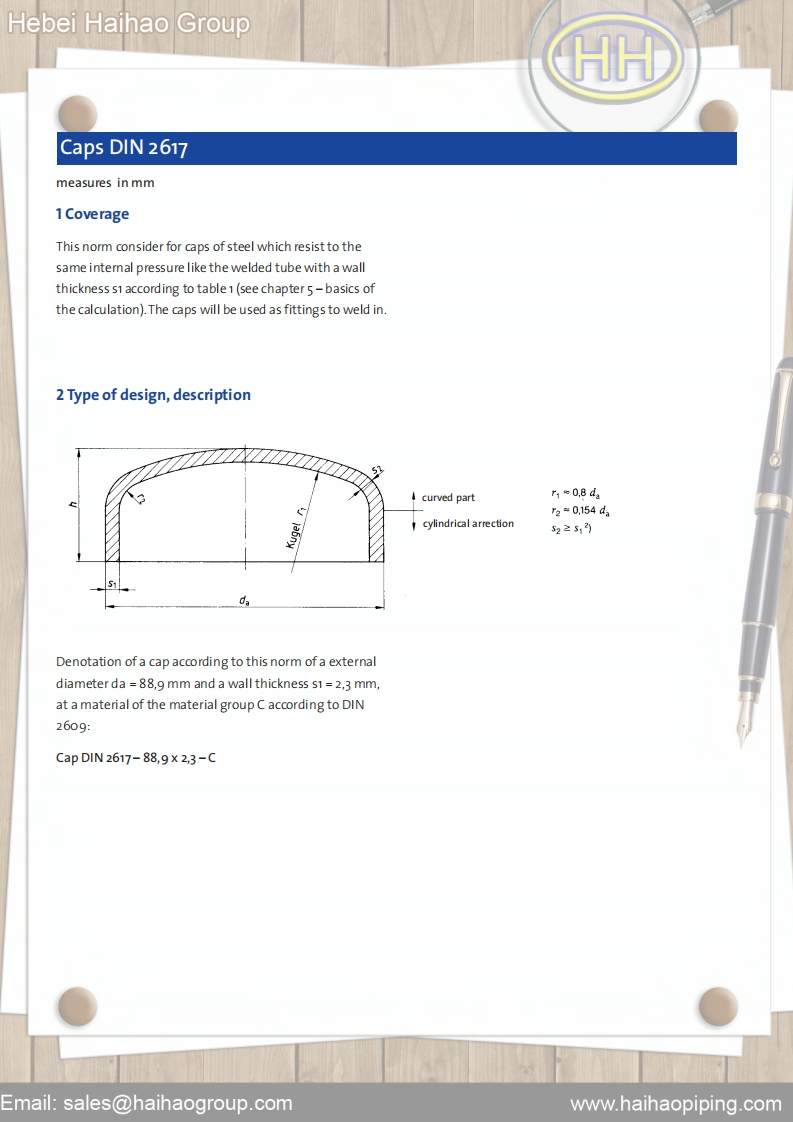

Hebei Haihao GroupHHCaps DIN 2617measures in mm1CoverageThis norm consider for caps of steel which resist to thesame internal pressure like the welded tube with a wallthickness s1 according to table1(see chapter 5-basics ofthe calculation).The caps will be used as fittings to weld in.2 Type of design,description↓curved partr1%0,8d2r2=0,154dacylindrical arrection5225,daDenotation of a cap according to this norm of a externaldiameter da =88,9 mm and a wall thickness s1=2,3 mm,at a material of the material group C according to DIN2609:Cap DIN2617-88,9×2,3-CEmail:sales@haihaogroup.comwww.haihaopiping.com
