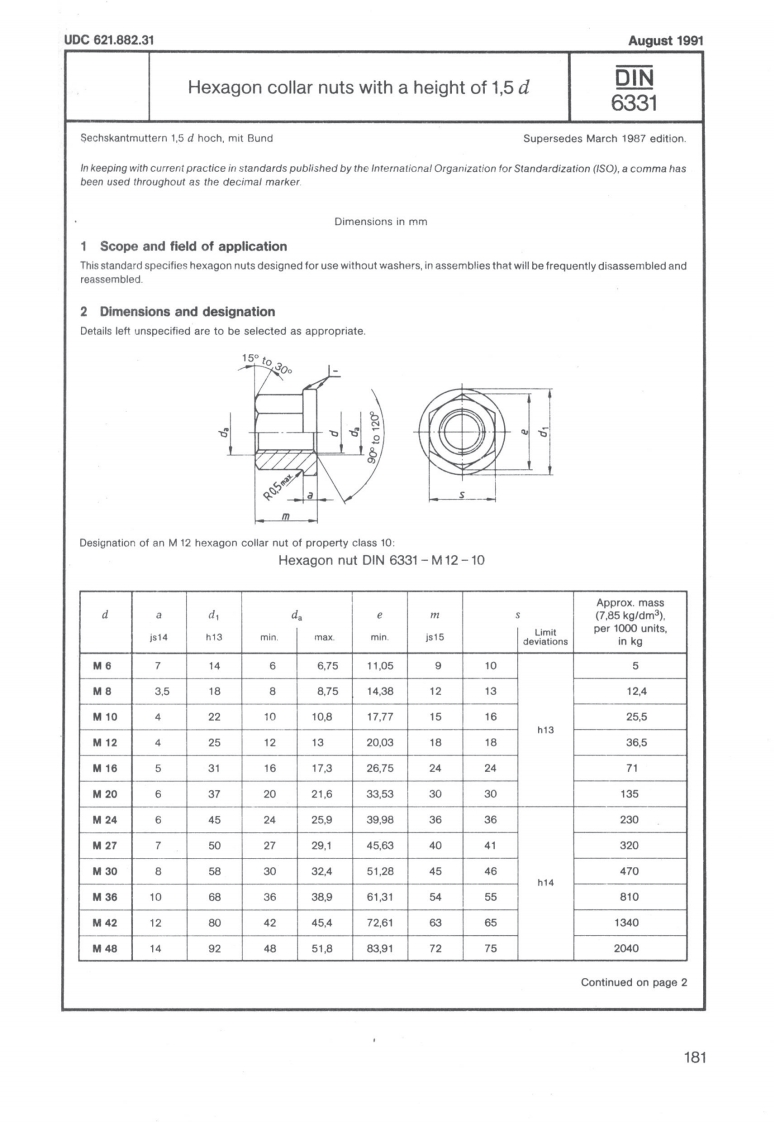

UDC621.882.31August 1991Hexagon collar nuts with a height of 1,5 dDIN6331Sechskantmuttern 1,5 d hoch,mit BundSupersedes March 1987 edition.In keeping with current practice in standards published by the International Organization for Standardization (ISO),a comma hasbeen used throughout as the decimal marker.Dimensions in mm1 Scope and field of applicationThis standard specifies hexagon nuts designed for use without washers,in assemblies that will be frequently disassembled andreassembled.2 Dimensions and designationDetails left unspecified are to be selected as appropriate.15to,300Designation of an M 12 hexagon collar nut of property class 10:Hexagon nut DIN 6331-M12-10Approx.massdaddaem(7.85kg/dm3).js14h13min.per 1000 units.max.min.js15Limitdeviationsin kgM61466.7511.05105M83.51888.7514.38121312.4M10221010.817.77151625.5h13M12425121320.03181836.5M166311617.326,752471M206372021.633,533030135M24452425.939.9836西230M277502729.145,634041320M308583032,451.2846470h14M3610683638.961315455810M420804245.472,6163651340M4814924851883,.9172752040Continued on page 2181
