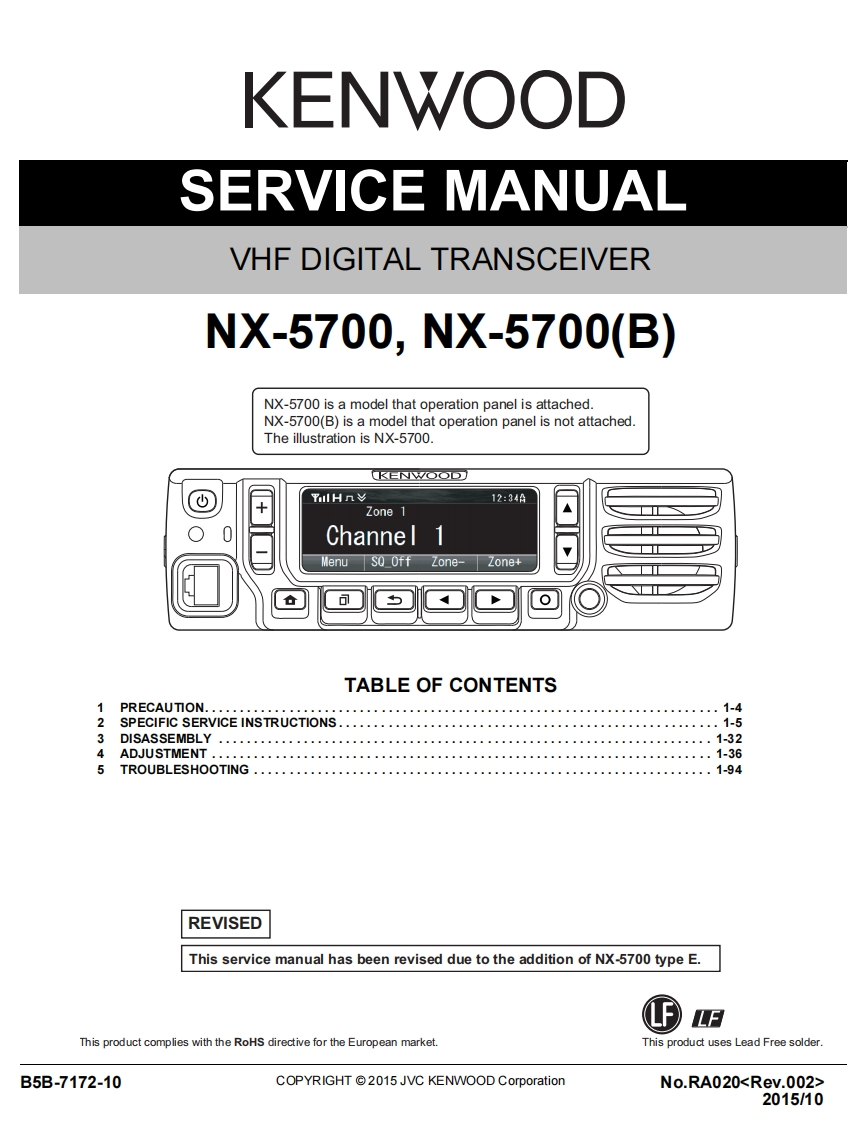

KENWOODSERVICE MANUALVHF DIGITAL TRANSCEIVERNX-5700,NX-5700(B)NX-5700 is a model that operation panel is attached.NX-5700(B)is a model that operation panel is not attached.The illustration is NX-5700(KENWOODTlHny12:34AZone 1Channel1Menu SQ_Off Zone-Zone+TABLE OF CONTENTS1PRECAUTON.........................................................................1-42SPECIFIC SERVICE INSTRUCTIONS...........................….1-5DISASSEMBLY…1-324ADJUSTMENT…1-365TROUBLESHOOTING.......................1-94REVISEDThis service manual has been revised due to the addition of NX-5700 type E.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7172-10COPYRIGHT 2015 JVC KENWOOD CorporationNo.RA0202015/10
