松下RP-HC800维修手册

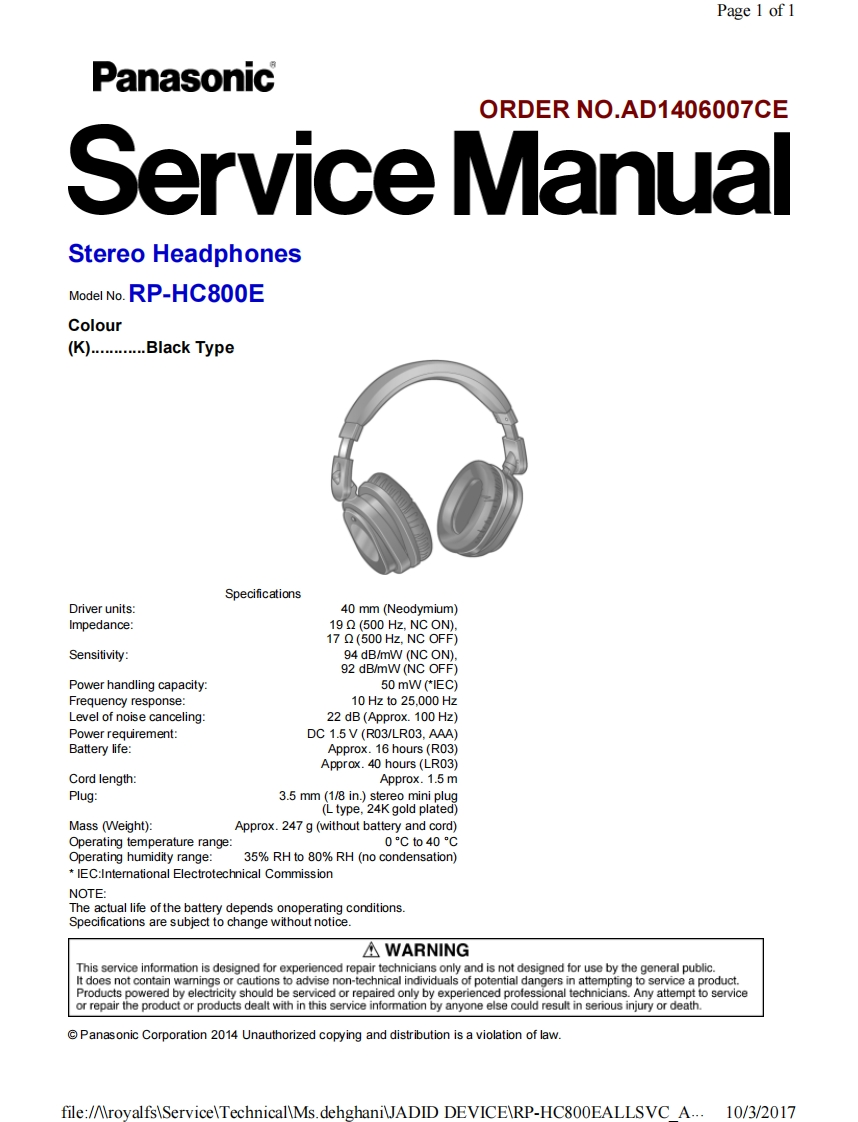

Page 1 of 1PanasonicORDER NO.AD1406007CEService ManualStereo HeadphonesModel No.RP-HC800EColour(K)..........BIack TypeSpecificationsDriver units:40 mm (Neodymium)Impedance:19 Q(500 Hz.NC ON)17 Q(500 Hz.NC OFF)Sensitivity:94 dB/mW (NC ON).92 dB/mW(NC OFF)Power handling capacity50 mW(IEC)Frequency response:10 Hz to 25.000 HzLevel of noise canceling:22 dB(Approx.100 Hz)Power requirement:DC 1.5V(R03/LR03.AAA)Battery life:Approx.16 hours(R03)Approx.40 hours(LR03)Cord length:Approx.1.5 mPlug:3.5 mm (1/8 in.)stereo mini plug(L type,24K gold plated)Mass (Weight):Approx.247 g(without battery and cord)Operating temperature range:0℃to40℃Operating humidity range:35%RH to 80%RH(no condensation)IEC:International Electrotechnical CommissionNOTE:The actual life of the battery depends onoperating conditions.Specifications are subject to change without notice.AWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain wamings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or death.Panasonic Corporation 2014 Unauthorized copying and distribution is a violation of law.file:/AlroyalfsServiceTechnicalMs.dehghaniJADID DEVICERP-HC800EALLSVC A...10/3/2017
