松下SDR-H288GK维修手册

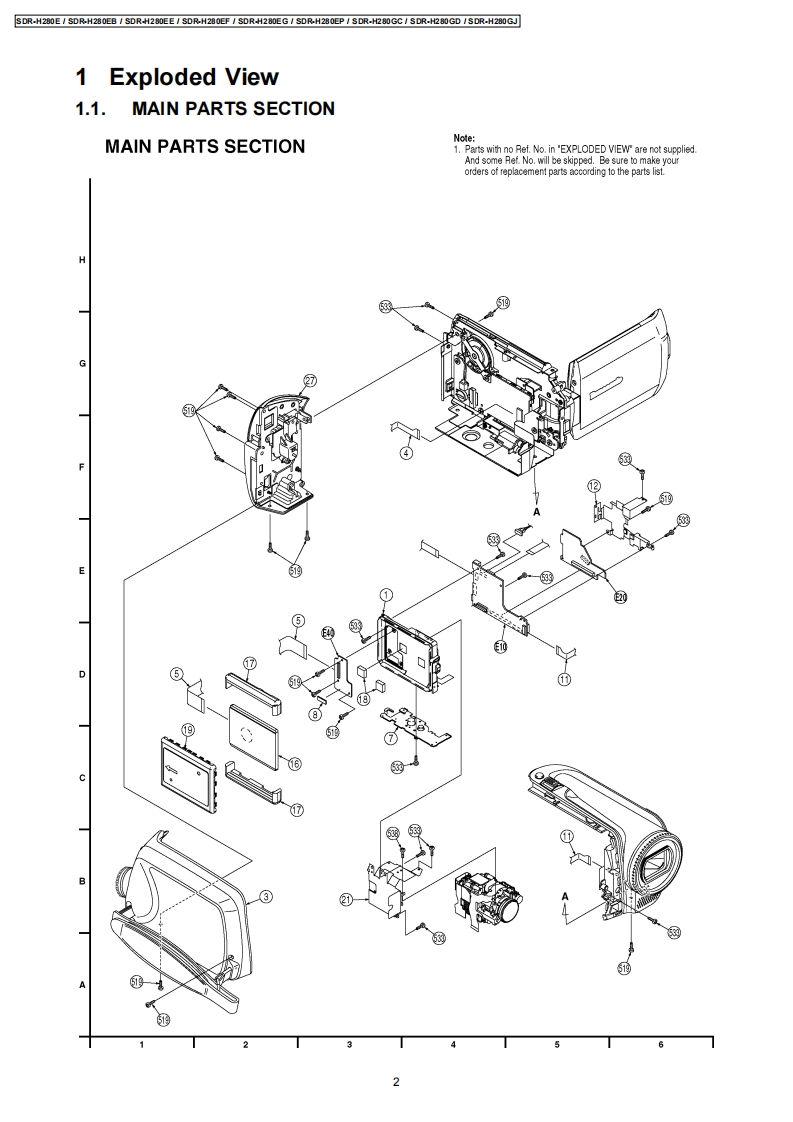

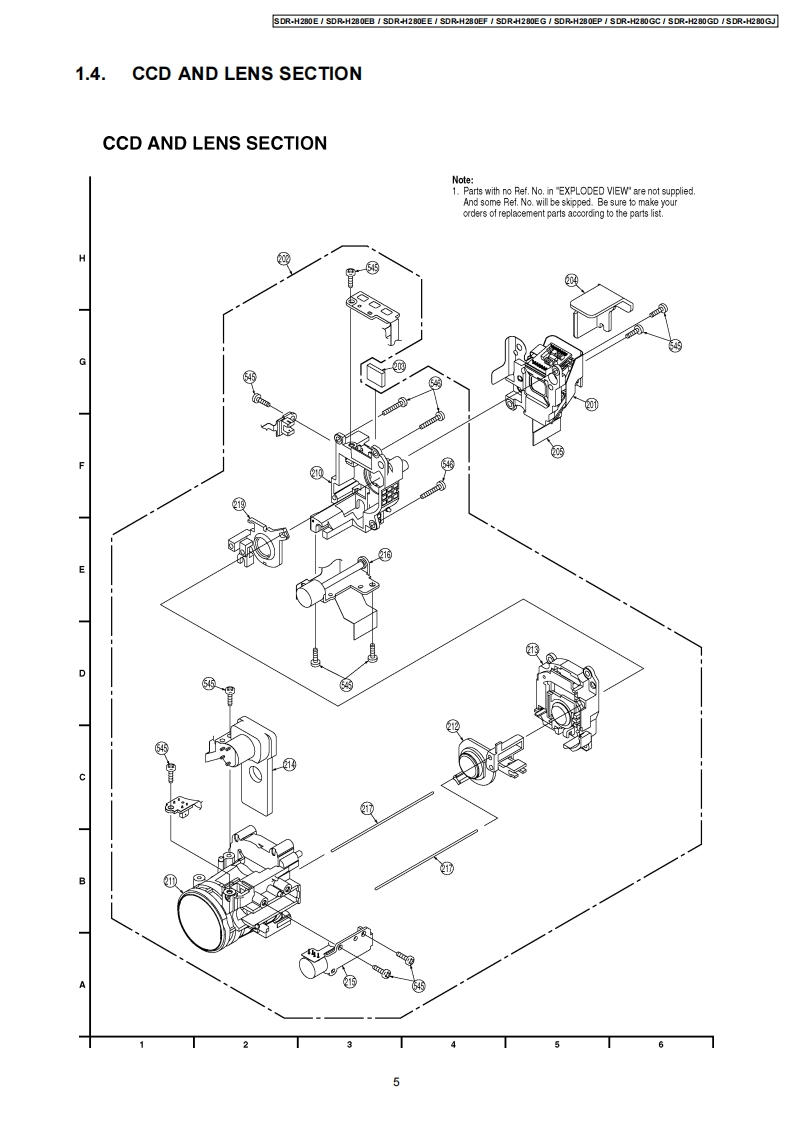

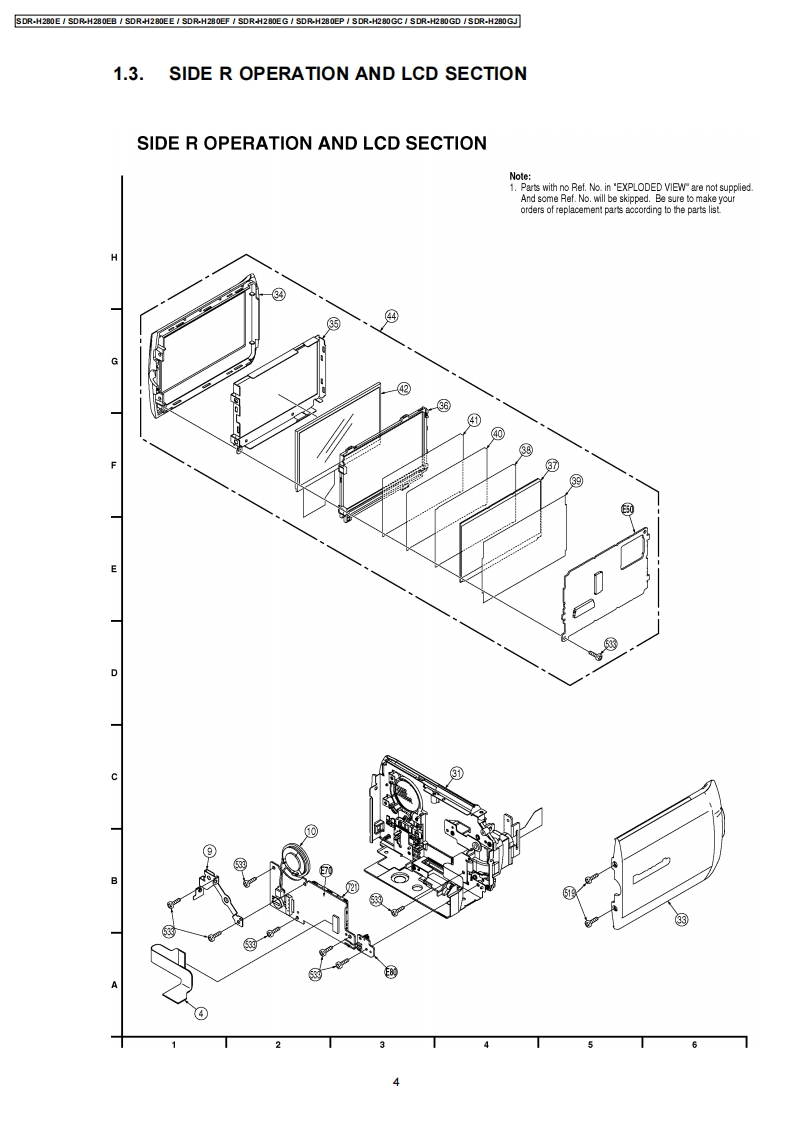

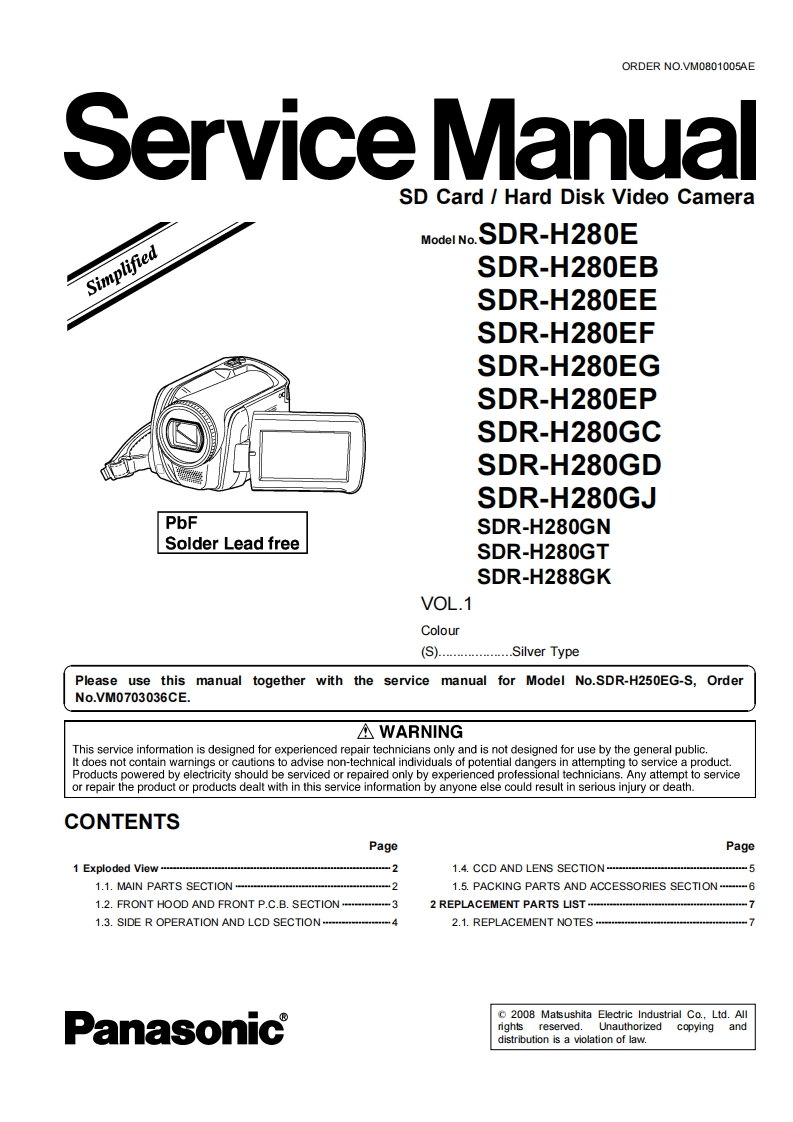

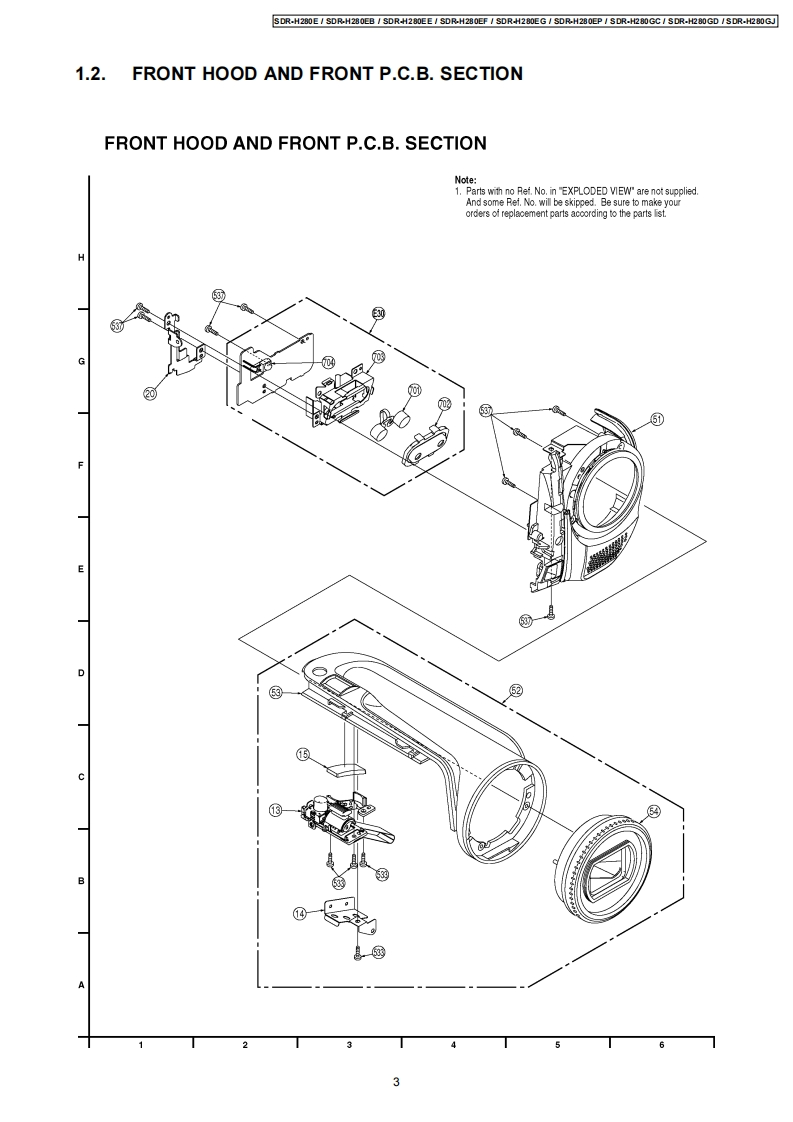

ORDER NO.VM0801005AEService ManualSD Card Hard Disk Video CameraModoINo SDR-H280ESimplifiedSDR-H280EBSDR-H280EESDR-H280EFSDR-H280EGSDR-H280EPSDR-H280GCSDR-H280GDSDR-H280GJPbFSDR-H280GNSolder Lead freeSDR-H280GTSDR-H288GKVOL.1Colour(S)..Silver TypePlease use this manual together with the service manual for Model No.SDR-H250EG-S,OrderNo.VM0703036CE.WARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or death.CONTENTSPagePage1 Exploded View-.21.4.CCD AND LENS SECTION---51.1.MAIN PARTS SECTION-21.5.PACKING PARTS AND ACCESSORIES SECTION---61.2.FRONT HOOD AND FRONT P.C.B.SECTION.---2 REPLACEMENT PARTS LIST--71.3.SIDE R OPERATION AND LCD SECTION..-----2.1.REPLACEMENT NOTES-Panasonic2008 Matsushita Electric Industrial Co.,Ltd.Allrightsreserved.Unauthorizedcopyinganddistribution is a violation of law.
