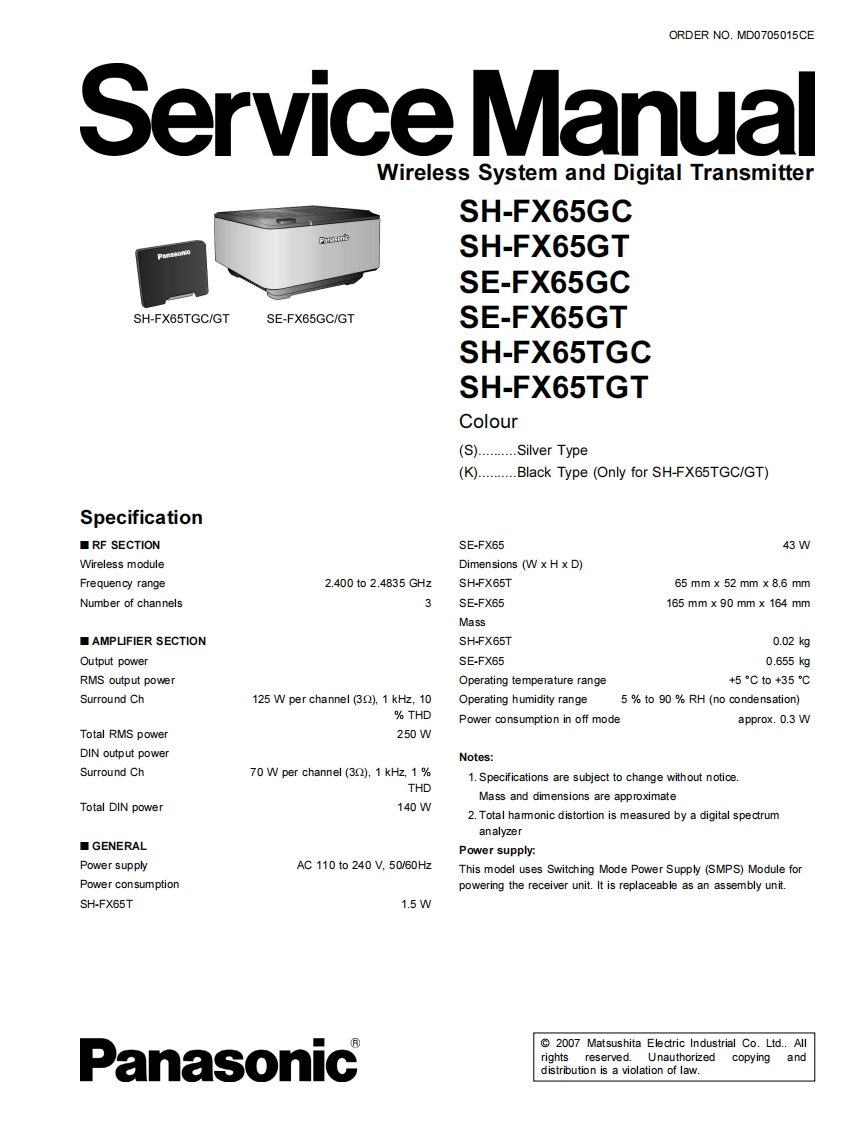

ORDER NO.MD0705015CEService ManualWireless System and Digital TransmitterSH-FX65GCP过mtSH-FX65GTSE-FX65GCSH-FX65TGC/GTSE-FX65GC/GTSE-FX65GTSH-FX65TGCSH-FX65TGTColour(S)..........Silver Type(K).........Black Type (Only for SH-FX65TGC/GT)Specification■RF SECTIONSE-FX6543WWireless moduleDimensions (W x H x D)Frequency range2.400to2.4835GHzSH-FX65T65 mm x 52 mm x 8.6 mmNumber of channelsSE-FX65165 mm x 90 mm x 164 mmMass■AMPLIFIER SECTIONSH-FX65T0.02kgOutput powerSE-FX650.655kgRMS output powerOperating temperature range+5Cto+35℃Surround Ch125 W per channel (3Q),1 kHz,10Operating humidity range5%to 90 RH (no condensation)THDPower consumption in off modeapprox.0.3 WTotal RMS power250WDIN output powerNotes:Surround Ch70 W per channel (30),1 kHz,11.Specifications are subject to change without noticeTHDMass and dimensions are approximateTotal DIN power140W2.Total hamonic distortion is measured by a digital spectrumanalyzer■GENERALPower supply:Power supplyAC110to240V,50/60HzThis model uses Switching Mode Power Supply (SMPS)Module forPower consumptionpowering the receiver unit.It is replaceable as an assembly unit.SH-FX65T1.5W2007 Matsushita Electric Industrial Co.Ltd..AllPanasonicrights reserved.Unauthorizedcopying anddistribution is a violation of law.
