Maestro-RO-1-Service-Schematics

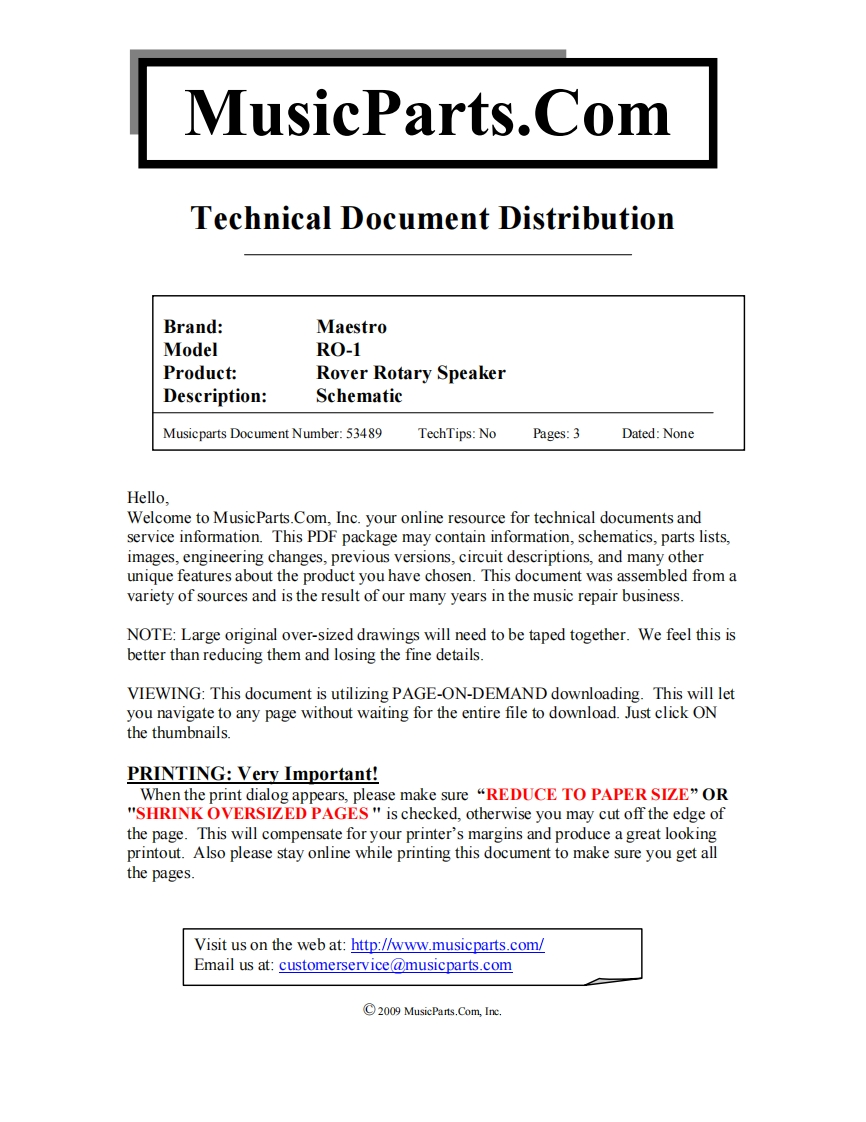

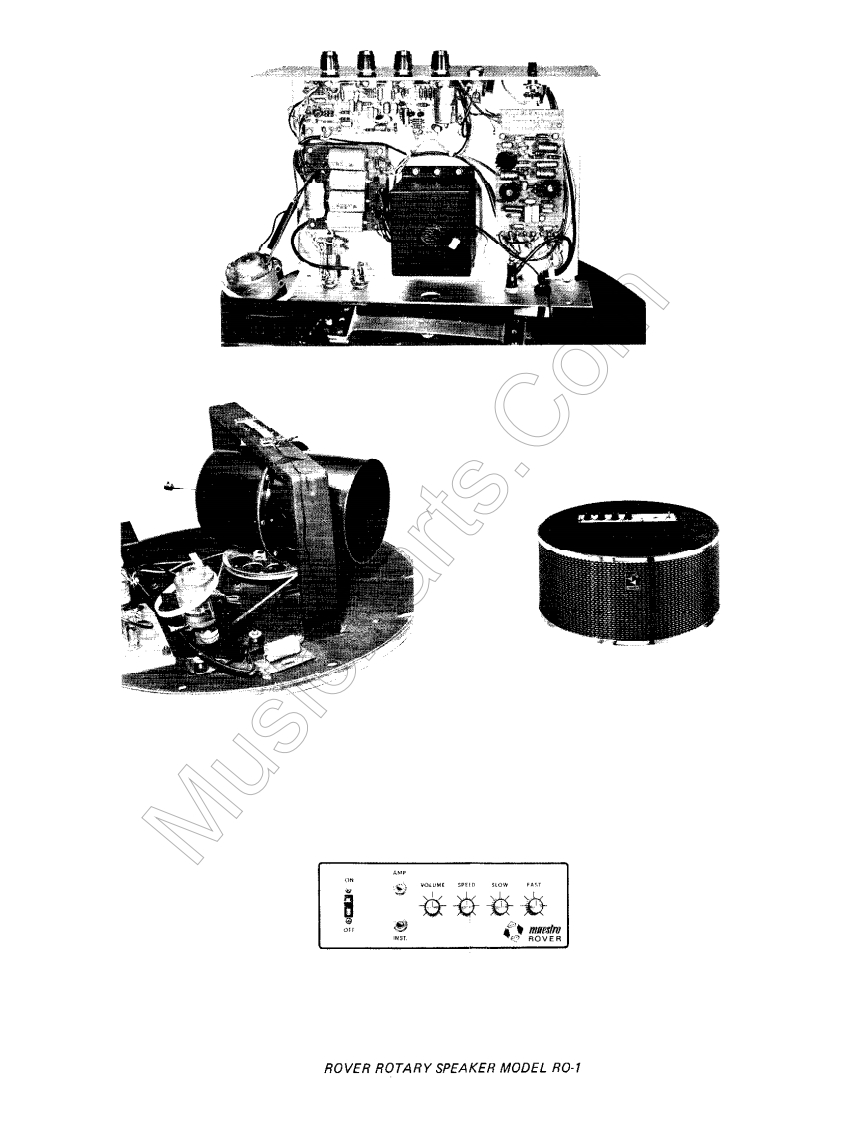

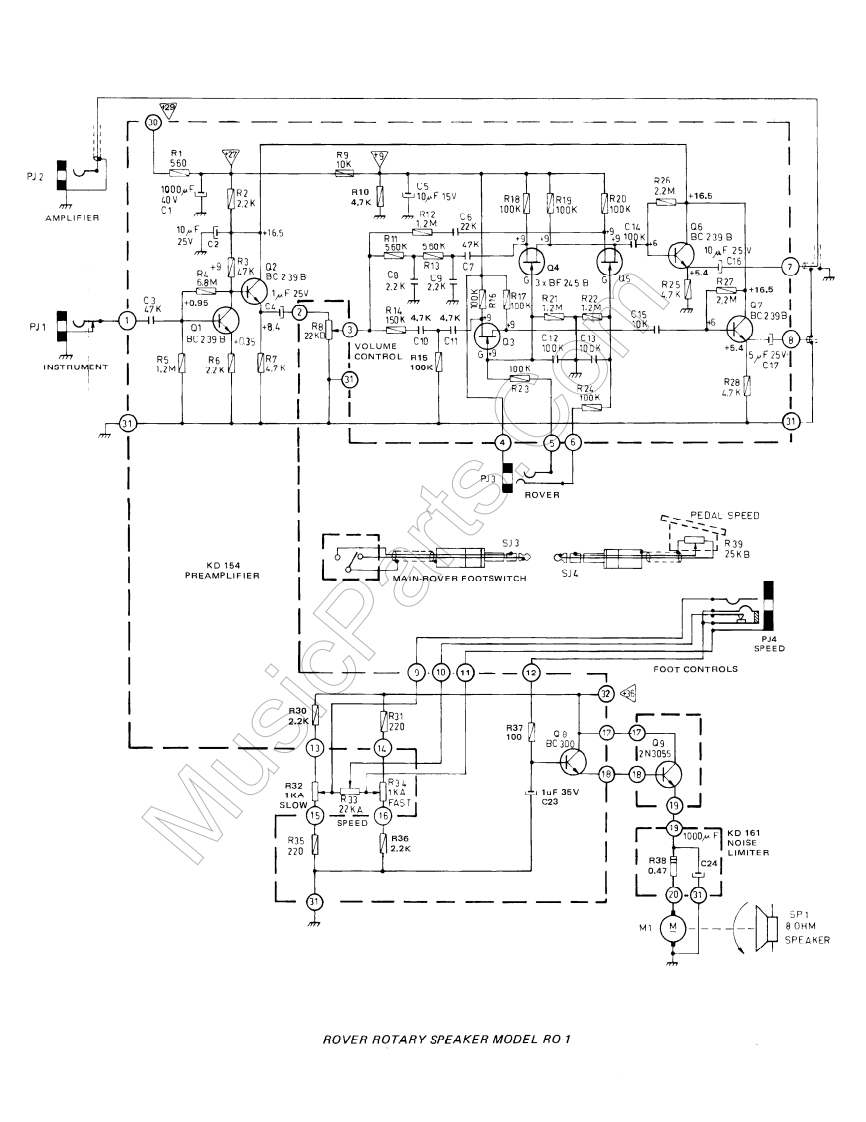

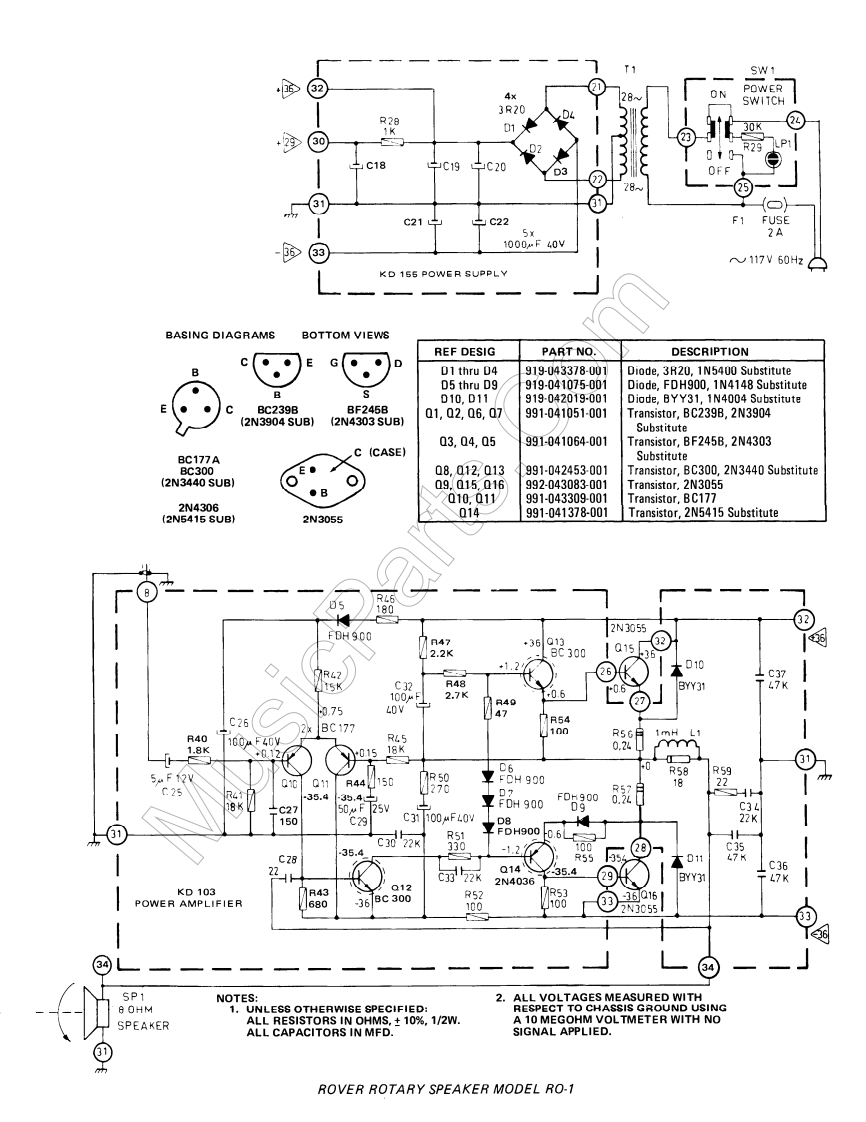

MusicParts.ComTechnical Document DistributionBrand:MaestroModelR0-1Product:Rover Rotary SpeakerDescription:SchematicMusicparts Document Number:53489TechTips:NoPages:3Dated:NoneHello,Welcome to MusicParts.Com,Inc.your online resource for technical documents andservice information.This PDF package may contain information,schematics,parts lists,images,engineering changes,previous versions,circuit descriptions,and many otherunique features about the product you have chosen.This document was assembled from avariety of sources and is the result of our many years in the music repair business.NOTE:Large original over-sized drawings will need to be taped together.We feel this isbetter than reducing them and losing the fine details.VIEWING:This document is utilizing PAGE-ON-DEMAND downloading.This will letyou navigate to any page without waiting for the entire file to download.Just click ONthe thumbnails.PRINTING:Very Important!When the print dialog appears,please make sure "REDUCE TO PAPER SIZE"OR"SHRINK OVERSIZED PAGES is checked,otherwise you may cut off the edge ofthe page.This will compensate for your printer's margins and produce a great lookingprintout.Also please stay online while printing this document to make sure you get allthe pages.Visit us on the web at:http://www.musicparts.com/Email us at:customerservice@musicparts.com2009 MusicParts.Com,Inc.
