Honda_Goldwing_GL1500_Service_Manual_1994维修维护手册

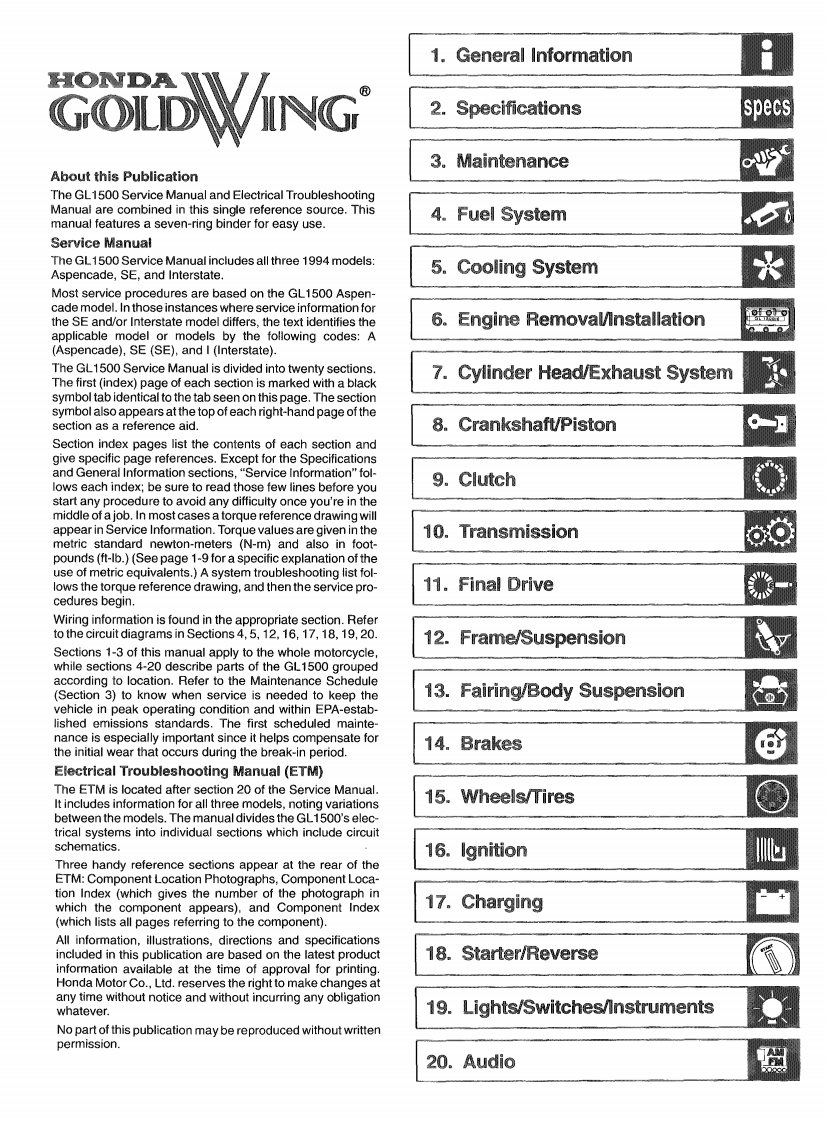

1.General InformationGOLDVING2.Specificationsspecs3.MaintenanceAbout this PublicationThe GL1500 Service Manual and Electrical TroubleshootingManual are combined in this single reference source.This4.Fuel Systemmanual features a seven-ring binder for easy use.Service ManualThe GL1500 Service Manual includes all three 1994 models:Aspencade,SE,and Interstate.5.Cooling SystemMost service procedures are based on the GL1500 Aspen-cade model.In those instances where service information forthe SE and/or Interstate model differs,the text identifies the6.Engine Removal/nstallationapplicable model or models by the following codes:A(Aspencade),SE (SE),and I (Interstate).The GL1500 Service Manual is divided into twenty sections.7.Cylinder Head/Exhaust SystemThe first(index)page of each section is marked with a blacksymbol tab identical to the tab seen on this page.The sectionsymbol also appears at the top of each right-hand page of thesection as a reference aid.8.Crankshaft/PistonSection index pages list the contents of each section andgive specific page references.Except for the Specificationsand General Information sections,"Service Information"fol-lows each index;be sure to read those few lines before you9.Clutchstart any procedure to avoid any difficulty once you're in themiddle of a job.In most cases a torque reference drawing willappear in Service Information.Torque values are given in the10.Transmissionmetric standard newton-meters (N-m)and also in foot-pounds(ft-Ib.)(See page 1-9 for a specific explanation of theuse of metric equivalents.A system troubleshooting list fol-lows the torque reference drawing,and then the service pro-11.Final Drivecedures begin.Wiring information is found in the appropriate section.Referto the circuit diagrams in Sections 4,5,12,16,17,18,19,20.12.Frame/SuspensionSections 1-3 of this manual apply to the whole motorcycle,while sections 4-20 describe parts of the GL1500 groupedaccording to location.Refer to the Maintenance Schedule(Section 3)to know when service is needed to keep the13.Fairing/Body Suspensionvehicle in peak operating condition and within EPA-estab-lished emissions standards.The first scheduled mainte-nance is especially important since it helps compensate forthe initial wear that occurs during the break-in period.14.BrakesElectrical Troubleshooting Manual (ETM)The ETM is located after section 20 of the Service Manual.It includes information for all three models,noting variations15.Wheels/Tiresbetween the models.The manual divides the GL1500's elec-trical systems into individual sections which include circuitschematics.16.IgnitionThree handy reference sections appear at the rear of theETM:Component Location Photographs,Component Loca-tion Index (which gives the number of the photograph inwhich the component appears).and Component Index17.Charging(which lists all pages referring to the component).All information,illustrations,directions and specificationsincluded in this publication are based on the latest prod
