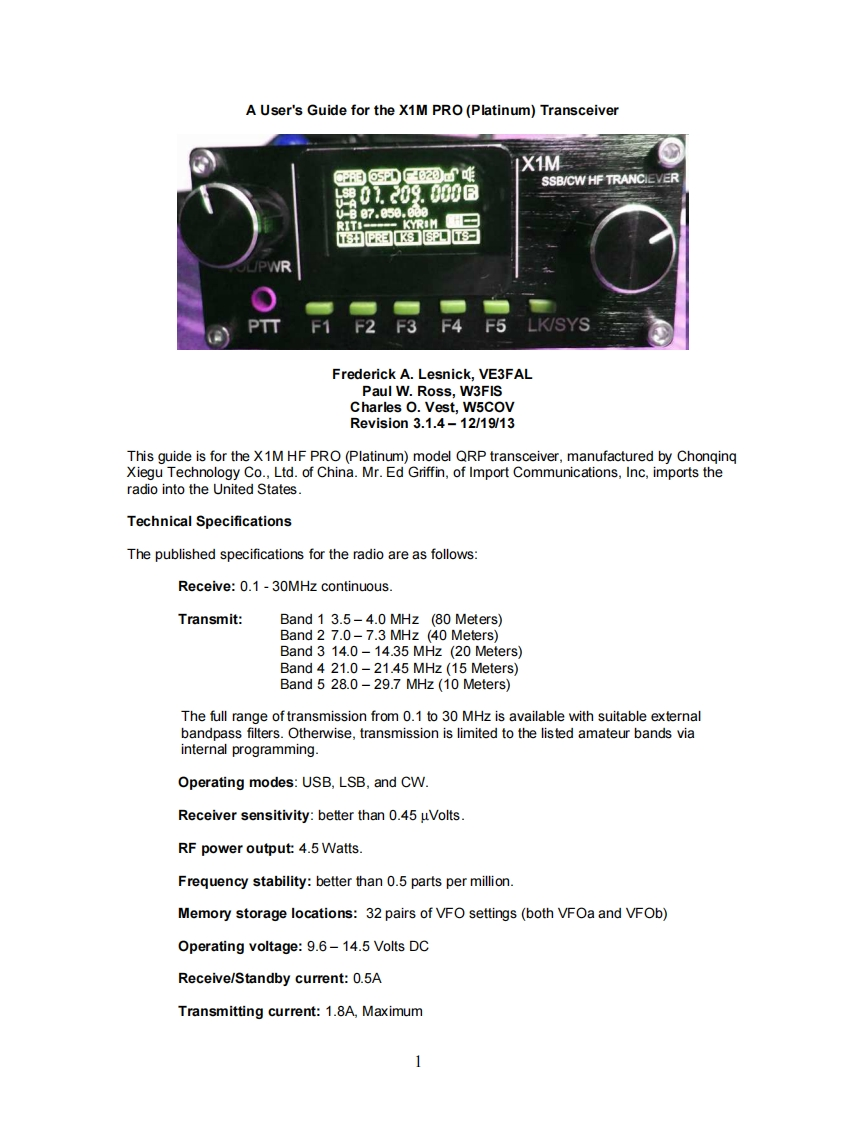

A User's Guide for the X1M PRO(Platinum)TransceiverC@)酒唾X1MSSB/CW HF TRANCIEVER盟01.c09.600630KS]图司8习/PWRF3F4F5LK/SYSFrederick A.Lesnick,VE3FALPaul W.Ross,W3FISCharles O.Vest,W5COVRevision3.1.4-12/19/13This guide is for the X1M HF PRO(Platinum)model QRP transceiver,manufactured by ChonqingXiegu Technology Co.,Ltd.of China.Mr.Ed Griffin,of Import Communications,Inc,imports theradio into the United States.Technical SpecificationsThe published specifications for the radio are as follows:Receive:0.1-30MHz continuous.Transmit:Band 1 3.5-4.0 MHz (80 Meters)Band 2 7.0-7.3 MHz (40 Meters)Band 3 14.0-14.35 MHz (20 Meters)Band 4 21.0-21.45 MHz(15 Meters)Band 5 28.0-29.7 MHz(10 Meters)The full range of transmission from 0.1 to 30 MHz is available with suitable externalbandpass filters.Otherwise,transmission is limited to the listed amateur bands viainternal programming.Operating modes:USB,LSB,and CW.Receiver sensitivity:better than 0.45 uVolts.RF power output:4.5 Watts.Frequency stability:better than 0.5 parts per million.Memory storage locations:32 pairs of VFO settings(both VFOa and VFOb)Operating voltage:9.6-14.5 Volts DCReceive/Standby current:0.5ATransmitting current:1.8A,Maximum
