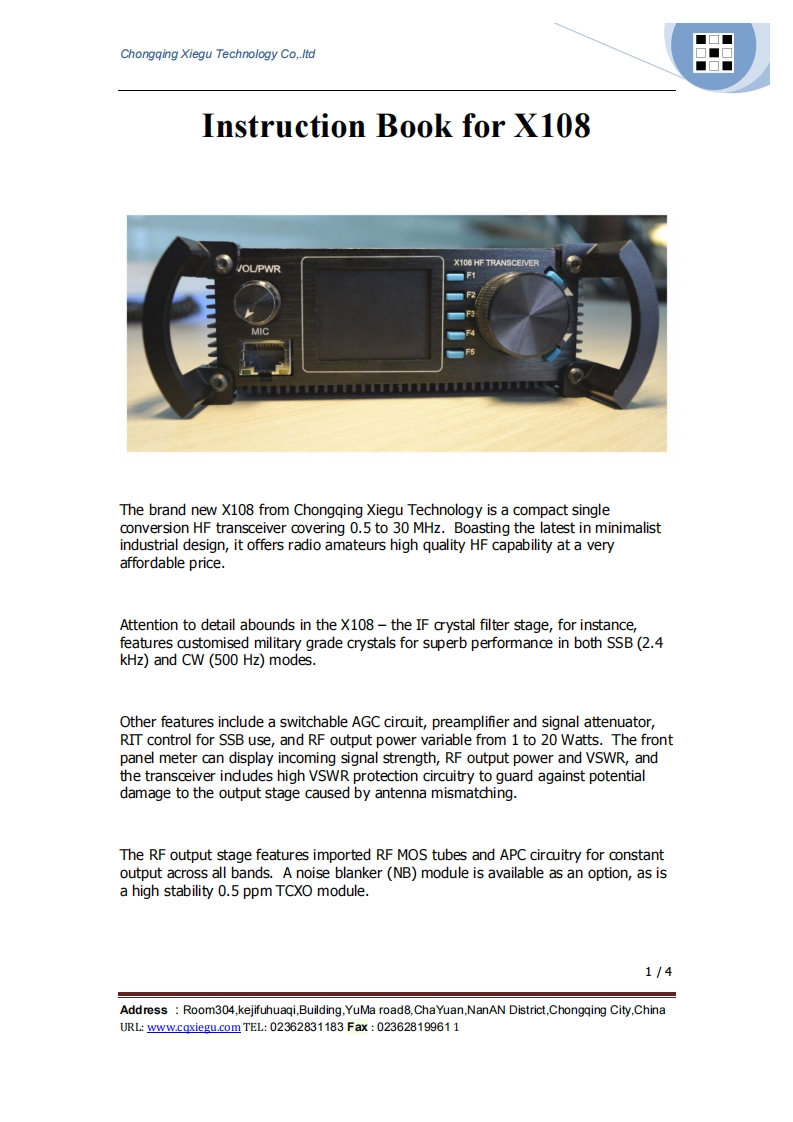

■回口Chongqing Xiegu Technology Co,.Itd口■口■口■Instruction Book for X108/OL/PWRX108 HF TRANSCEIVERThe brand new X108 from Chongqing Xiegu Technology is a compact singleconversion HF transceiver covering 0.5 to 30 MHz.Boasting the latest in minimalistindustrial design,it offers radio amateurs high quality HF capability at a veryaffordable price.Attention to detail abounds in the X108-the IF crystal filter stage,for instance,features customised military grade crystals for superb performance in both SSB(2.4kHz)and CW(500 Hz)modes.Other features include a switchable AGC circuit,preamplifier and signal attenuator,RIT control for SSB use,and RF output power variable from 1 to 20 Watts.The frontpanel meter can display incoming signal strength,RF output power and VSWR,andthe transceiver indudes high VSWR protection circuitry to guard against potentialdamage to the output stage caused by antenna mismatching.The RF output stage features imported RF MOS tubes and APC circuitry for constantoutput across all bands.A noise blanker (NB)module is available as an option,as isa high stability 0.5 ppm TCXO module.1/4Address Room304,kejifuhuaqi,Building,YuMa road8,ChaYuan,NanAN District,Chongqing City,ChinaURL:www.cqxiegu.com TEL:02362831183 Fax 02362819961 1
