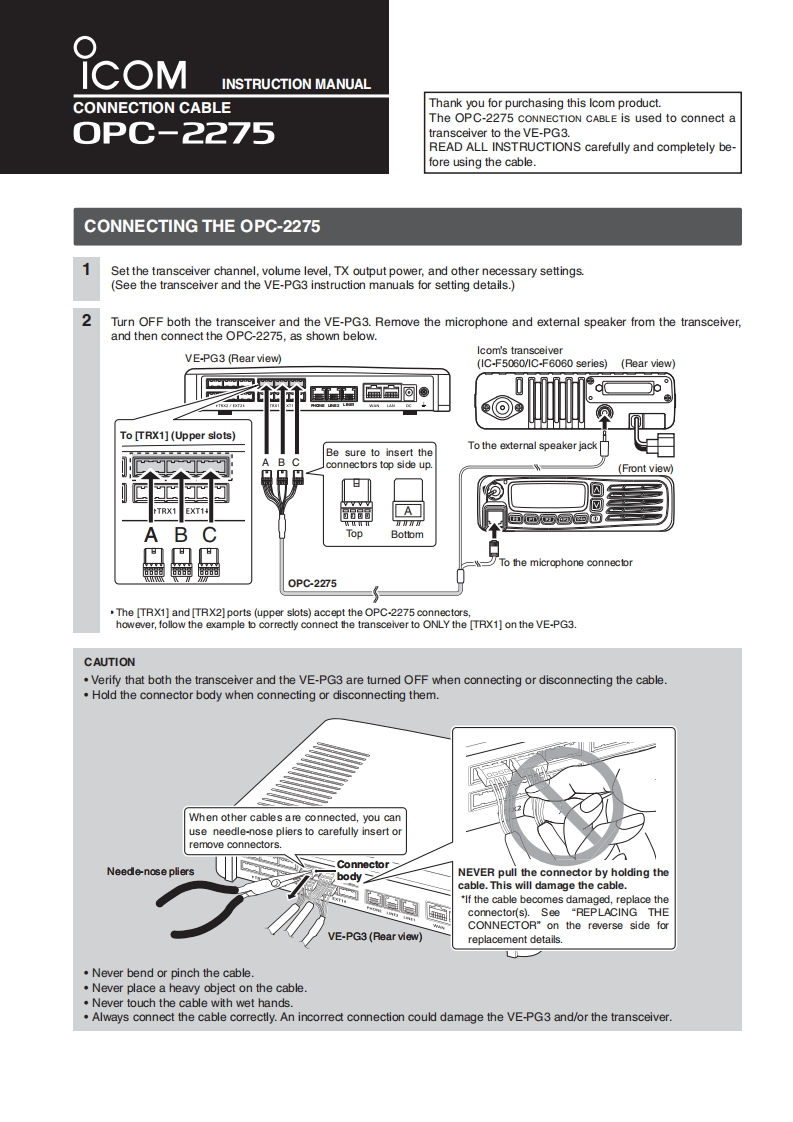

INSTRUCTION MANUALCONNECTION CABLEThank you for purchasing this lcom product.The OPC-2275 CONNECTION CABLE is used to connect aOPC-2275transceiver to the VE-PG3.READ ALL INSTRUCTIONS carefully and completely before using the cable.CONNECTING THE OPC-22751Set the transceiver channel,volume level,TX output power,and other necessary settings.(See the transceiver and the VE-PG3 instruction manuals for setting details.)2Turn OFF both the transceiver and the VE-PG3.Remove the microphone and external speaker from the transceiver,and then connect the OPC-2275,as shown below.Icom's transceiverVE-PG3(Rear view)(IC-F5060/IC-F6060 series)(Rear view)造画显同®To [TRX1](Upper slots)Be sure to insert theTo the external speaker jackA BCconnectors top side up.(Front view)品品品TRX1 EXT14包可AWUWATopBotlomTo the microphone connector品0PC-2275.The [TRX1]and [TRX2]ports (upper slots)accept the OPC-2275 connectors,however,follow the example to correctly connect the transceiver to ONLY the [TRX1]on the VE-PG3CAUTIONVerify that both the transceiver and the VE-PG3 are turned OFF when connecting or disconnecting the cable.Hold the connector body when connecting or disconnecting themWhen other cables are connected,you canuse needle-nose pliers to carefully insert orremove connectors.Neede-nose pliersConnectorbodyNEVER pull the connector by holding thecable.This will damage the cable.*If the cable becomes damaged,replace theconnector(s).See "REPLACING THECONNECTOR"on the reverse side forVE-PG3(Rear view)replacement details.Never bend or pinch the cable.Never place a heavy object on the cableNever touch the cable with wet hands.Always connect the cable correctly.An incorrect connection could damage the VE-PG3 and/or the transceiver.
