雅马哈Yamaha_BB_NE2_Bass_Service_Manual维修手册含电器原理图

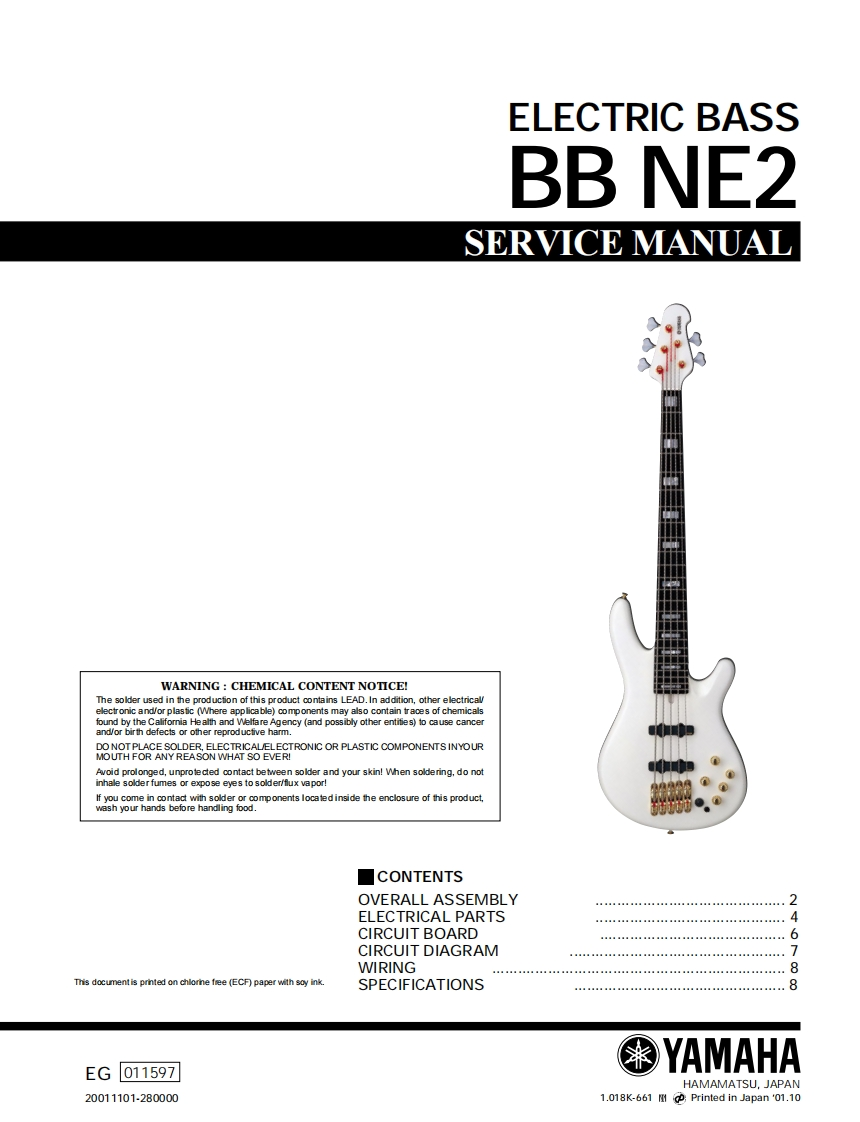

ELECTRIC BASSBB NE2SERVICE MANUALWARNING CHEMICAL CONTENT NOTICEThe solder used in the production of this product contains LEAD.In addition,other electricalelectronic and/or plastic (Where applicable)components may also contain traces of chemicalsfound by the Califomnia He alth and Welfare Agency (and possibly other entifies)to cause cancerand/or birth defects or other reproductive harmAvoid prolonged,unprotected contact between solder and your skin!When soldering,do notinhale solder fumes or expose eyes to solder/fux vapor!If you come in contact with solder or components located inside the enclosure of this product,wash your hands before handling food.■CONTENTSOVERALL ASSEMBLY2ELECTRICAL PARTS.4CIRCUIT BOARD6CIRCUIT DIAGRAM05005000005000000507WIRINGThis document is prnted on chlorhe fee (ECF)paper with soy ink.SPECIFICATIONS.8YAMAHAEG011597HAMAMATSU,JAPAN20011101-2800001.018K-661 N;Printed in Japan '01.10
