雅马哈Yamaha_BB604-_BB-605_Bass_Service_Manual维修手册含电器原理图

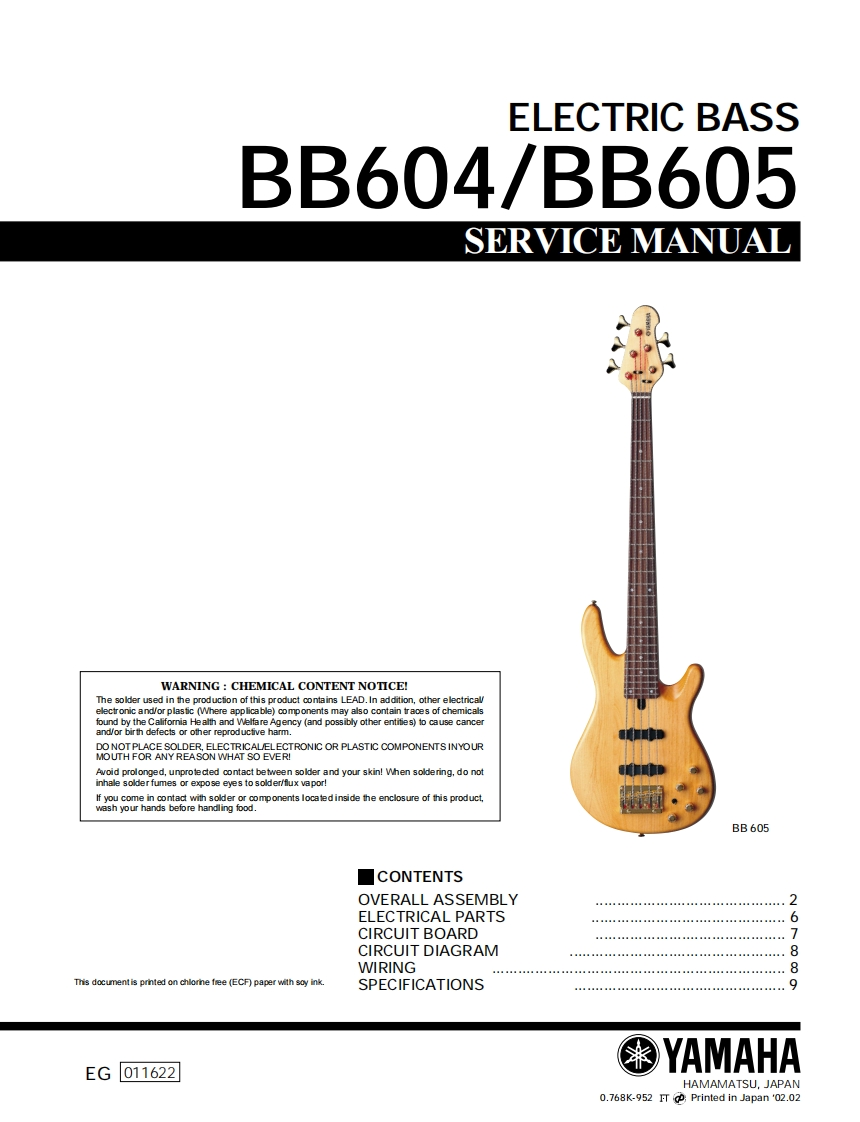

ELECTRIC BASSBB604/BB605SERVICE MANUALWARNING CHEMICAL CONTENT NOTICE!The solder used in the producfion of this product contains LEAD.In addition,other electricalelectronic and/or plastic (Where applicable)components may also contain traces of chemicalsfound by the Califomia Health and Welfare Agency (and possibly other entifies)to cause cancerAvoid prolonged,unprotected contact between solder and your skin!When soldering,do notinhale solder fumes or expose eyes to solder/flux vapor!If you come in contact with solder or components located inside the enclosure of this product,wash your hands before handling food.BB605■CONTENTSOVERALL ASSEMBLY2ELECTRICAL PARTSCIRCUIT BOARD7CIRCUIT DIAGRAM8WIRINGThis document is prnted on chlorhe fee (ECF)paper with soy ink.SPECIFICATIONS9EG011622YAMAHAHAMAMATSU,JAPAN0.768K-952 FT;Printed in Japan '02.02
