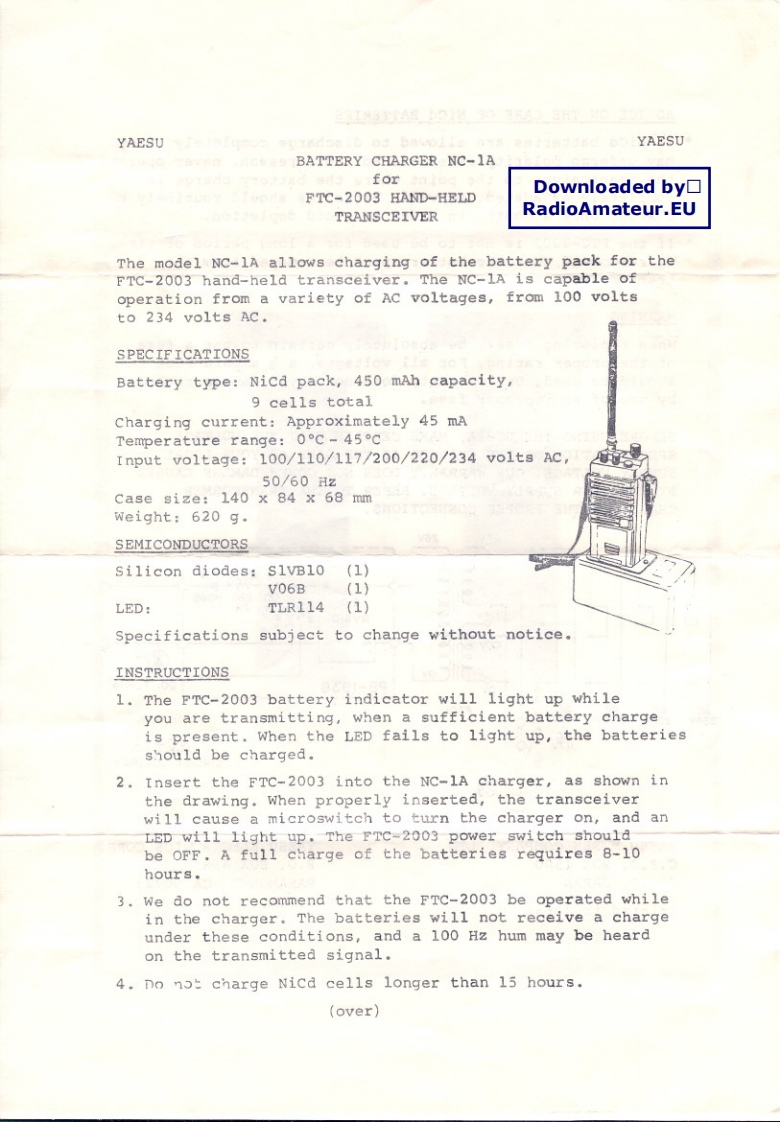

YAESUYAESUBATTERY CHARGER NC-1AforDownloaded byl▣FTC-2003 HAND-HELDTRANSCEIVERRadioAmateur.EUThe model NC-1A allows charging of the battery pack for theFTC-2003 hand-held transceiver.The NC-1A is capable ofoperation from a variety of Ac voltages,from 100 voltsto 234 volts AC.SPECIFICATIONSBattery type:Nicd pack,450 mAh capacity,9 cells totalCharging current:Approximately 45 mATemperature range:0C-45CInput vo1tage:100/110/117/200/220/234vo1tsAC,50/60HzCase size:140×84×68mmWeight:620 g.SEMICONDUCTORSsilicon diodes:S1VB10(1)V06B(1）LED:TLR114(1)Specifications subject to change without notice.INSTRUCTIONS1.The FTC-2003 battery indicator will light up whileyou are transmitting,when a sufficient battery chargeis present.When the LED fails to light up,the batteriesshould be charged.2.Insert the FTC-2003 into the NC-1A charger,as shown inthe drawing.When properly inserted,the transceiverwill cause a microswitch to turn the charger on,and anLED will light up.The FTC-2003 power switch shouldbe OFF.A full charge of the batteries requires 8-10hours.3.We do not recommend that the FTC-2003 be operated whilein the charger.The batteries will not receive a chargeunder these conditions,and a 100 Hz hum may be heardon the transmitted signal.4.no no charge Nicd cells longer than 15 hours.(ower】
